Carthago liner-for-two | A-class motorhome
Discover the A-class Carthago liner-for-two motorhome from 4.5 to 6.7 t.
The unique definition of motorhomes with a rear seating area
Unique 4-room concept with round lounge seating area in the rear and electrically extendible TV lounger
The A-class liner-for-two provides excellent comfort and unique sophistication with the unique 4-room concept. In the front area of the motorhome there are electrically lowerable lengthways single beds with a spacious, continuous sleeping area. In the rear area of the vehicle you will find an exclusive round lounge seating area. The extra-wide kitchen with the elegantly curved kitchen worktop and comfort luxury bathroom rounds off the luxurious ambience. The A-class motorhome also impresses with a large double floor which contains a tremendous amount of storage space.
The liner-for-two combines all of these exclusive advantages from a vehicle length of just 7.83 m. You have the choice between the Fiat Ducato ALKO with a single or double axle or the Iveco Daily with a permissible gross weight of up to 5.8 t / 6.7 t.
Put your A-class liner-for-two together from two layouts, two different basic vehicles and numerous worlds of living, and personalise your motorhome in accordance with your dreams and ideas.
Models:
I 53, I 53 L
liner-for-two layouts & 360° experiences.
DISCOVER THE PERFECT LAYOUT FOR YOU.
You are guaranteed to find the right layout, including all of the associated technical data, using our practical filter function. And/or you can immerse yourself in our new, interactive 360° tours and discover your A-class motorhome with all of its special features.
Fiat Ducato
Fiat Ducato
Iveco Daily
Iveco Daily
liner-for-two exterior.
IMPRESSIVE PRESENCE
- FIAT DUCATO
- IVECO DAILY
- “SILVERLINE” COLOUR CONCEPT
- Fiat Ducato AL-KO low frame single axis vehicle with up to 4.8 t (model I 53) or Fiat Ducato AL-KO low frame double axis vehicle with up to 5.5 t (model I 53 L)
- Reinforced spring on the front axle with axle load increase to 2.3 t
- Fiat Ducato standard safety package: Airbag, ABS, ESP, ASR, electronic immobiliser, Hillholder, Traction Plus, Hill Descent Control, automatic start/stop, cruise control, stability control for trailers, collision braking system, side wind assistant (single axle)
- Iveco Daily with 5.6 / 5.8 t (model I 53) or with 6.7 t (model I 53 L)
- With high-traction rear-wheel drive and high frame with dual wheels on rear axle
- Large payload reserves and high towing load of up to 3.5 t
- Optional 8 gear ZF converter automatic transmission
- Iveco Daily safety package as standard: ESP, ABS, electric immobiliser, ASR, Hillholder
- Option: "AIR-PRO" adaptive pneumatic suspension and shock absorber system
- Numerous driver assistance systems available (driver assistance package Iveco)
With the optional “silverline” exterior colour concept, your A-class liner-for-two will impress with its driver’s cabin and habitation in silver.
DRIVER’S CABIN VISIBILITY CONCEPT
Visibility equals safety: You have a view of the road sooner with the liner-for-two. The special sitting position while driving, the extra-large upwards and downwards viewing angle, the extra-low windscreen and the dashboard front which slopes steeply forwards provide visual contact with the road surface after just 2.77 m (on the Fiat chassis).
ROOF-TO-WALL CONNECTION
The typical Carthago curved roof is not only an unmistakeable design element, but makes a decisive contribution to the rigidity of the habitation with the frame members on the interior. And all of this without any thermal bridges whatsoever. Another safety plus: less sensitivity to side wind.
ROOF STRUCTURE
The GRP exterior provides protection from hail, and the aluminium on the inside provides protection from lightning strikes at the same time. The aluminium interior also takes over the function of heat storage in the winter.
FLOOR PANEL
Provides all-round protection. The lower and upper sides are made from GRP, and between them there is a hard foam insulating core made from RTM Styrofoam. The high-stability floor has lifelong protection against humidity and rotting.
FLOOR-TO-WALL CONNECTION
Provided at both sides via a high-stability frame member. Similar to aircraft construction, it is form-fitted and bonded along the entire length. And if the worst comes to the worst, it provides side collision protection. An integrated thermal bridge stop reliably prevents any thermal bridges.
EASE OF REPAIR
Wherever possible, attention is paid to segmentation during the development of the main body components. In event of damage, this makes replacement easier and saves money. For example, there is a separately replaceable rear bumper at the rear of every vehicle.
FULL LED HEADLIGHTS
with dipped beam, main beam and LED daytime driving lights for perfect illumination and excellent visibility.
“SAFETYLUXE” XL HABITATION DOOR
with extra-strong and stable door, wider opening size of 63 cm and large door window. The liner-for- two also offers the optional “Luxury habitation door” package with electric self-closing mechanism for quiet closing, additional LED lighting in the door window for the “coming & leaving home“ function, keyless access system via RFID chip and electric door opening assistance from the inside and the outside.
TESTED LIGHTNING PROTECTION
Aluminium on the roof and the inner walls provides protection like a Faraday cage. Additional lightning conductors in the chassis significantly increase this protection effect. This was proven by the lightning protection test: a Carthago habitation provides verified protection against lightning strikes!
SIDE WALL STRUCTURE
Having aluminium not just on the exterior but also on the interior of the walls is a prerequisite for efficient heat storage. This produces the typical Carthago well-being climate. The homogeneous heat radiation acts like a wall heater.
SCOOTER GARAGE LOWERING
Deep lowering of the scooter garage means maximum storage space and minimum effort when loading. An extremely strong wall to floor connection due to form-fitted and bonded frame members provides a load-bearing capacity of up to 450 kg.
liner-for-two highlight.
DOUBLE FLOOR WITH LARGE STORAGE COMPARTMENT
You can never have enough storage space in a motorhome! This is why a considerable amount of attention is paid to the amount of storage space during the development of our A-class liner-for-two. It’s not just about the volume alone, but the ease of access for loading and unloading, and also protection from frost.
- + Central double floor with large, heated storage compartment, usable height up to 50 cm (Fiat Ducato) or 57 cm (Iveco Daily)
- + Access from the exterior via several large hatches
- + Convenient interior access via two large living area floor hatches
- + Large, central through-loading space (interior height 36 cm/Fiat; 33 cm/Iveco), easily loadable through the XL habitation door via a large, self-supporting living area floor hatch
- + Extra-deep double floor exterior storage compartment (height 63 cm, width 110 cm)
- + The entire double floor is heated with a climate storage function with underfloor heating effect
Loading from the outside
Convenient loading of the double floor storage compartment via a large external hatch.
Loading from the outside
Large through-loading storage compartment, loadable via two exterior hatches.
Loading from the outside
Large living area floor hatch in the entrance area: easy to load from the outside when the XL habitation door is open.
Loading from the outside
Convenient loading of the double floor storage compartment via an additional large external hatch.
Unloading from the inside
Additional, large living area floor hatch in the double floor in the changing room.
Patented Pedelec scooter garage
liner-for-two I 53 on Fiat Ducato AL-KO with wheel recess / handlebar height extension. Loadable up to 350 kg.
Patented Pedelec scooter garage
liner-for-two I 53 on Iveco Daily 5.6 t with handlebar height extension. Loadable up to 450 kg.
Scooter garage variants
liner-for-two I 53 L on Fiat Ducato AL-KO DA. Loadable up to 450 kg.
Scooter garage variants
liner-for-two I 53 on Iveco 6.7 t. Loadable up to 450 kg.
liner-for-two interior.
THE
WORLDS OF STYLE
liner-for-two interior.
THE WORLDS OF LIVING
You have the choice between countless worlds of living for the liner-for-two A-class motorhomes. The Carthago upholstery collections are not just good to look at, but they also have numerous practical advantages:
- Highly effective stain protection: Liquids do not penetrate into the fabrics, meaning that the majority of stains can be easily wiped off with a damp cloth.
- Excellent anti-fade properties
- Hard-wearing and easy to look after
- Washable curtains and decorative cushion covers
- Antibacterial mattress cover
liner-for-two interior.
OUTSTANDING COMFORT
The A-class liner-for-two provides excellent comfort in the living area with the unique 4-room concept. Electrically lowerable lengthways single beds with a spacious sleeping area at the front,
exclusive round lounge seating area with electrically extendible TV lounger at the rear, and an extra-wide kitchen with an elegantly curved kitchen work surface and a comfort luxury bathroom in between.
DISCOVER THE LIVING AREA HIGHLIGHTS.
DISCOVER THE KITCHEN HIGHLIGHTS.
Models I 53, I 53 L
- Large, curved kitchen worktop with Corian anti-drip edge
- “Profi Gourmet” 3-ring hob with glass cover, robust cast-iron trivet and easy-clean glass base
- Raised kitchen work surface with vertical waveform for visual room partitioning with a large storage cabinet and sliding door running in the opposite direction
- Six large drawers
- Two separate waste bins integrated in kitchen work surface
- Electric central locking in the kitchen area including kitchen work surface, drawers and overhead storage compartments
- 153 l fridge opposite with door opening at both sides and separate freezer compartment
- Slide out storage cabinet integrated in round bathroom wall
- Sink cover as additional storage area
- Capsule coffee maker with pull-out system in overhead storage cabinet (optional)
DISCOVER THE BATHROOM & CHANGING ROOM HIGHLIGHTS.
I 53
I 53 L
Model I 53, I 53 L
- Comfort luxury bathroom with separate shower room
- Spacious bathroom with wash stand base unit, laundry basket and large mirrored cabinet
- Spa rain shower with shower room design with dark granite look, indirectly illuminated corner pillar and shower walls with marble design including clothes hooks, waterproof shower insert in same design as living area floor
- Luxury bathroom door in high gloss ivory with horizontally integrated chrome inlays
- Floor-to-ceiling wardrobe with two clothes rails and a shelf in the changing room; wardrobe door in high gloss ivory with horizontally integrated chrome inlays
- Two large sideboards with several large linen drawers
- Large mirror on inside of luxury bathroom door (optional)
- Room partitioning and a changing room that is separate from the living/sleeping area are created in just two steps
DISCOVER THE SLEEPING AREA HIGHLIGHTS.
Models I 53, I 53 L
- Large sleeping dimensions and continuous sleeping surface
- Carawinx sleeping system – medically recommended, point-elastic under springing system
- Bed can be moved extra-low for easy access to the bed via the extending access steps and extra-high sitting height/headroom
- Two side windows in the sleeping area, Mini-Heki roof hatch above bed access
- High quality 7-zone quality cold foam mattress with breathable climate quilting
- Sliding doors beneath drop-down bed to prevent the ingress of cold from the driver’s cabin
- The perfect workplace for on the road: The optional office and TV room package with rotating driver and passenger seats, pull-out table top from sideboard, additional USB and 230 V sockets and 24-inch Smart LED TV with height-adjustable bracket
with rotating driver and passenger seats, pull-out table top from sideboard, additional USB and 230 V sockets and 24-inch Smart LED TV with height-adjustable bracket
liner-for-two technology and standard equipment.
THE PERFECT COMPANION FOR ON THE ROAD

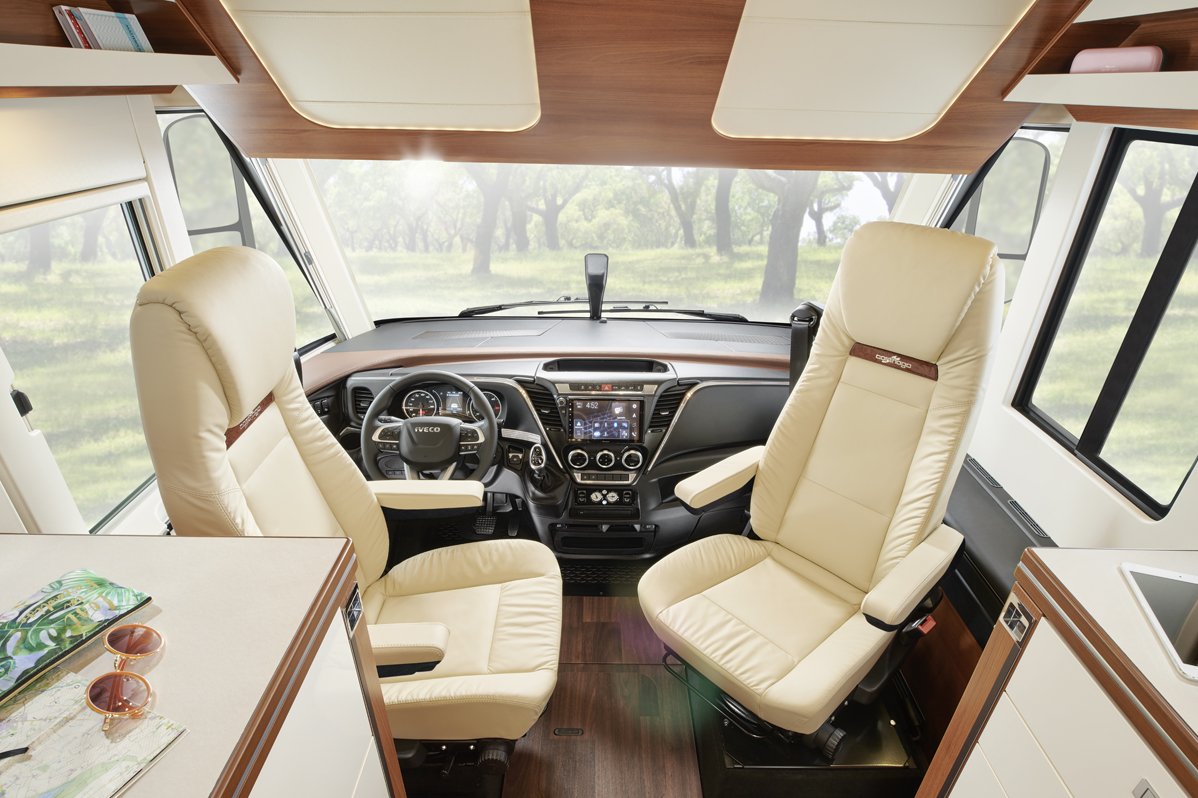

DRIVER’S CABIN DESIGN
ON-BOARD TECHNOLOGY
Electrical equipment, water supply, warm air storage heating technology
Heated battery centre
150 Ah Lithium battery, in double floor, access via double floor storage compartment on passenger’s side, with main power switch, optional: 2nd and 3rd lithium-ion battery incl. battery computer, total 450 Ah, two extra 18 A chargers, total 72 A
Aluminium wall heating effect
on the insides of the walls: Heat storage and wall heating at the same time, with 1,000 times better heat conduction than conventional wooden interior walls
ALDE warm water central heating
With numerous convectors throughout the double floor and the living area, and in the scooter garage, the driver's cabin and the door entrances. Heat booster beneath the driver’s seat. Real warm water underfloor heating in the seating group area
Central water drain in double floor
can also be operated from the outside through the XL habitation door. Large fresh and waste water tank capacities, protected from frost and with optimum centre of gravity in the double floor, central water drain in the double floor, water supply via a pressure pump system
“Easy change” gas bottle compartment
Extra-low, one-handed hatch operation, convenient replacement of individually accessible gas bottles
Heated technical components
Areas that are sensitive to the cold have additional targeted heating in a Carthago motorhome: all technical components such as tanks, batteries, storage compartments, door entrances etc. This is the guarantee of full functionality, even at low minus temperatures
Electrical centre
easily accessible in scooter garage
Driver's cabin thermal concept
Insulating double glazing in driver’s cabin: Side and door windows; convector package with 2-speed fan (booster) beneath driver’s seat; Dashboard surface targeted heating for additional heating of the driver's cabin (surface heating effect): Integrated heating convectors with circulation baffle plate (double convectors at driver and passenger sides); driver's cabin door entrance: targeted heating with additional convector
Optional: electric power package unlimited
Including: 3x 100 Ah lithium-ion-batteries (Mastervolt) including battery computer for a total of 300 Ah, digital control panel to access energy management information, "Mastervolt CombiMaster" inverter/charger
ELECTRIC POWER PACKAGE UNLIMITED
The electric power package unlimited allows you to enjoy greater flexibility, comfort and independence on your adventures. Thanks to cutting-edge technology, key appliances, such as the air conditioning systems and refrigerators as well as the lighting, can continue to operate reliably, even without an external power supply. The combination of efficient energy management, powerful battery systems and intelligent control solutions significantly increases self-sufficiency, while reducing your dependence on campsites or hook-up points.
A self-sufficiency package gives you a great deal of freedom, especially when travelling off the beaten track or on longer trips without access to the required infrastructure.
This package makes travelling a more comfortable experience, as power outages and restrictions due to limited capacity are a thing of the past. It is an absolute must-have for anyone who values independence and sustainability on their travels.
Your benefits
STANDARD EQUIPMENT
