Carthago C1-tourer I | Fully integrated motorhome
Discover the fully integrated Carthago C1-tourer I from 3.5 t to 4.5 t.
Sporty, distinctive and cosy.
THE SOPHISTICATED ALL-ROUNDER
The possibilities that you have of configuring your new motorhome exactly in accordance with your individual requirements with this model range are just as diverse as the destinations to which you can travel in a fully integrated C1-tourer. You can fulfil your dreams with different layouts , two basic vehicles and the choice of different worlds of style and numerous worlds of living in the interior of this fully integrated motorhome.

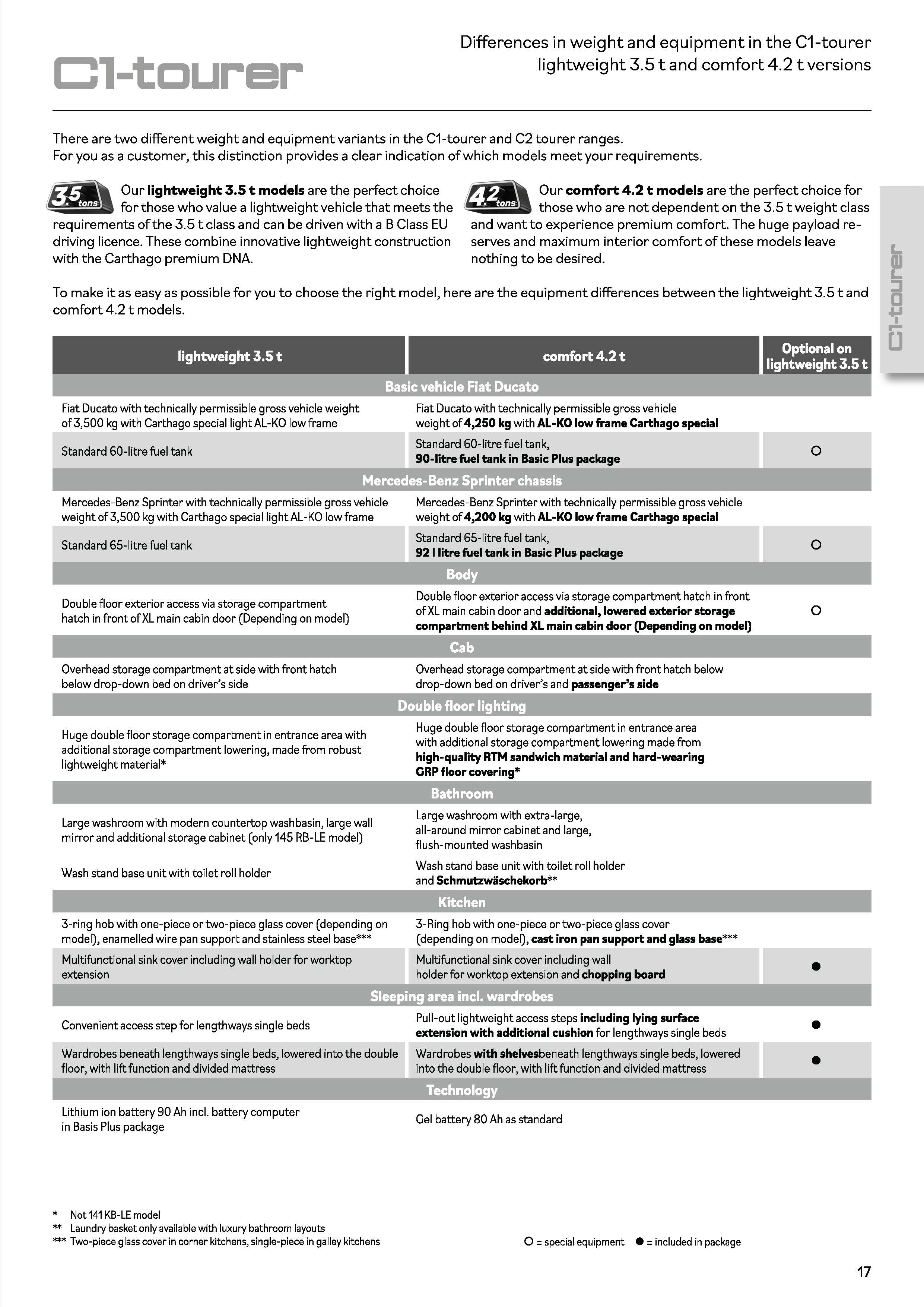

You can also choose between two weight and equipment variants for your C1-tourer.
Impressively lightweight
Our lightweight 3.5 t models are the perfect choice for those who value a lightweight vehicle that meets the requirements of the 3.5 t class and can be driven with a B Class EU driving licence.
Models:
I 141 KB-LE, I 143 KB-LE, I 145 RB-LE, I 145 RB-LE superior
Comfort without limits
Our comfort 4.2 t models are the perfect choice for those who are not dependent on the 3.5 t weight class and want to experience premium comfort. The huge payload reserves and maximum interior comfort of these models leave nothing to be desired
Models:
All Models
To make it as easy as possible for you to choose the right model, we’ve listed the equipment differences between the lightweight 3.5 t and comfort 4.2 t models for you.
C1-tourer I 145 RB-LE lightweight 3.5 t
C1-tourer I 145 RB-LE superior comfort 4.2 t
C1-tourer I 145 RB-LE superior lightweight 3.5 t
C1-tourer I 145 RB-LE lightweight 3.5 t
C1-tourer I layouts & 360° experiences.
DISCOVER THE IDEAL LAYOUT
WHICH SUITS YOU PERFECTLY.
You are guaranteed to find the right layout, including all of the associated technical data, using our practical filter function. And/or you can immerse yourself in our new, interactive 360° tours and discover your fully integrated motorhome with all of its special features.
lightweight 3.5 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
lightweight 3.5 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
lightweight 3.5 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
lightweight 3.5 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
lightweight 3.5 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
lightweight 3.5 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
lightweight 3.5 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
C1-tourer I Exterieur.
POWERFUL
PRESENCE
- FIAT DUCATO
- MERCEDES-BENZ SPRINTER
- DESIGN PACKAGE (OPTIONAL)
- I 145 RB-LE | I 149 RB-LE
- I 145 RB-LE SUPERIOR
Fiat Ducato with AL-KO low frame Carthago special (comfort 4.2 t models) or special light (lightweight 3.5 t models), 8-speed torque converter automatic transmission as standard and 198 cm wide wheelbase rear axle.
Standard safety package: airbag, cross wind assistant, cruise control, ABS, ESP, ASR, electronic immobiliser, Hillholder, Hill Descent Control, traction plus, trailer stability control, collision braking system.
MERCEDES-BENZ SPRINTER
Mercedes-Benz Sprinter chassis with AL-KO low frame Carthago special (comfort 4.2 t models) or special light (lightweight 3.5 t models) and 198 cm wide wheelbase rear axle.
Standard safety package: cross wind assistant, Hillholder, ABS, ASR, EBV, ESP, active braking assistant and active alertness assistant.
Other modern driver assistance systems optionally available.
Select the optional design package and give your C1-tourer a very special charisma.
- Full LED headlights (dipped and main beam)
- Fog lights with chrome applications
- "Exterior-line" extended exterior decor
- "Liner" bonnet design – visual windscreen extension
On the C1-tourer I 145 RB-LE and I 149 RB-LE you can look forward to an additional exterior highlight: the redesigned Dynamic Design rear end with curved corner pillars and striking rear lights
The exclusive “superior” version with the I 145 RB-LE layout lives up to its name.
- Dynamic Designer Rear with curved corner pillars and distinctive rear lights
- Full LED headlights (dipped and main beam) including LED daytime driving lights
- Extended exterior decor with dynamic lines and superior logo
Roof to wall connection
The typical Carthago curved roof is not only an unmistakeable design element but with the frame members on the inside, it makes a decisive contribution to the rigidity of the main cabin. And all of this without any thermal bridges whatsoever. Another safety plus is the reduced sensitivity to side wind.
Roof structure
Exterior made from GRP (glass fibre-reinforced plastic) on the exterior means protection from hail, and having aluminium on the interior provides protection against lightning strikes at the same time. The aluminium interior also takes over the function of heat storage in winter.
Scooter garage lowering
The deep lowering of the scooter garage in the fully integrated C1-tourer means maximum storage space and minimal effort when loading. An extremely strong wall to floor connection due to form-fitted and bonded frame members provides a load-bearing capacity of 350 kg.
The floor panel
Provides all-round protection. The lower and upper sides are made from GRP, and between them there is a hard foam insulating core made from RTM Styrofoam. The high-stability floor has lifelong protection against humidity and rotting.
The floor/wall connection
Provided at both sides via a high-stability frame member. Similarly to aircraft construction, it is form-fitted and bonded along the entire length. And if the worst comes to the worst, it has the effect of side collision protection. An integrated thermal bridge stop reliably prevents any thermal bridges.
Ease of repair
Wherever possible, attention is paid to segmentation during the development of the main body components. In event of damage, this makes replacement easier and saves money. For example, there is a separately replaceable rear bumper at the rear of every vehicle.
Optional full LED headlights
with dipped beam and main beam and LED daytime driving lights for perfect illumination and excellent visibility.
XL habitation door "PREMIUM TWO 2.0”
with widened passage size of 63 cm, secure double locking and extra-wide door window
Driver’s cab visibility concept
Vision is safety: You have the road in view sooner in the fully integrated C1-tourer. The special sitting position while driving, the extra-large upwards and downwards viewing angle, the extra-low windscreen and the dashboard front which slopes steeply forwards provide visual contact with the road surface after just 2.77 m (on the Fiat chassis).
Side wall structure
Having aluminium not just on the exterior but also the interior of the walls is a prerequisite for efficient heat storage. This produces the typical Carthago well-being climate. The homogeneous heat radiation acts like a wall heater.
C1-tourer I Highlight.
DOUBLE FLOOR
WITH HUGE STORAGE COMPARTMENT
More room for your holiday! During the development of our fully integrated motorhomes in the C1-tourer model series, we place special value on having lots of storage space. Because we know that you can’t have enough of it. However, we do not just concentrate on the volume alone, but also the ease of access when loading and unloading, and protection from frost.
Video
- + Double floor with huge heated storage compartment with usable height of up to 55.5 cm
- + Outside access via several large hatches
- + Convenient interior access via the L-shaped lounge seating area seat bench cover, the lift-up (I 143 KB-LE, I 145 RB-LE, I 145 RB-LE superior) or swing-up side seat bench (I 148 KB-LE, I 149 RB-LE, I 150 RB-QB) as well as the large living area hatch
- + Large, central through-loading space (interior height 22 cm), with extra-low storage compartment (usable height 46 cm), also conveniently loadable through the XL habitation door via a large, self-supporting living area floor hatch
- + The entire double floor is heated with a climate storage function and underfloor heating effect
Scooter garage
Scooter garage with large interior height thanks to deep lowering, with access from both sides via two large scooter garage doors at the driver and passenger sides, and loadable up to 350 kg.
Load from the outside
Convenient loading of the double floor storage space via a large external hatch
Unload from the inside
Easy removal of the storage compartment contents from the inside via the lift-up seat bench cover of the L-shaped lounge seating area with patented fitting
Load from the outside
Large, additional double floor storage space with separate exterior hatch
Load from the outside
Convenient loading of the double floor storage space via a large external hatch (depending on model)
Unload from the inside
Convenient removal of contents via lift-up seat bench (depending on model)
Unload from the inside
Huge living area floor hatch in entrance area: convenient loading from the outside when XL habitation door is open.
Additional double floor storage compartments
Living area floor hatch with double floor storage box (42 cm usable depth) in heated double floor
Scooter garage
Scooter garage with large interior height thanks to deep lowering, with access from both sides via two large scooter garage doors at the driver and passenger sides, and loadable up to 350 kg.
C1-tourer I Interior.

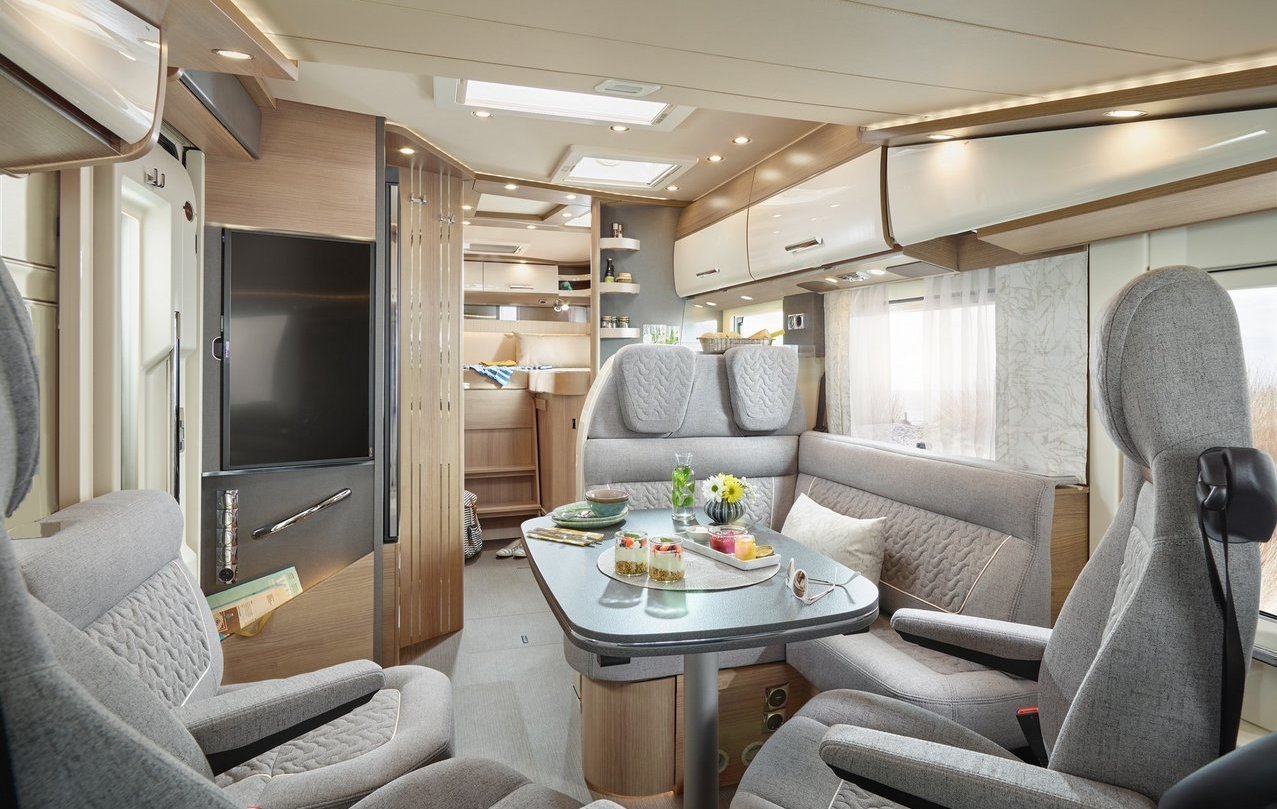

THE
WORLDS OF STYLE
C1-tourer I Interior.
THE WORLDS OF LIVING
You have the choice between countless worlds of living for the fully integrated C1-tourer. The Carthago upholstery collections are not just good to look at, but they also have numerous practical advantages:
- Highly effective stain protection: Liquids do not penetrate into the fabrics, meaning that the majority of stains can be easily wiped off with a damp cloth.
- Excellent anti-fade properties
- Hard-wearing and easy to look after
- Washable curtains and decorative cushion covers
- Antibacterial mattress cover
C1-tourer I Interior.
MAXIMUM
LIVING COMFORT

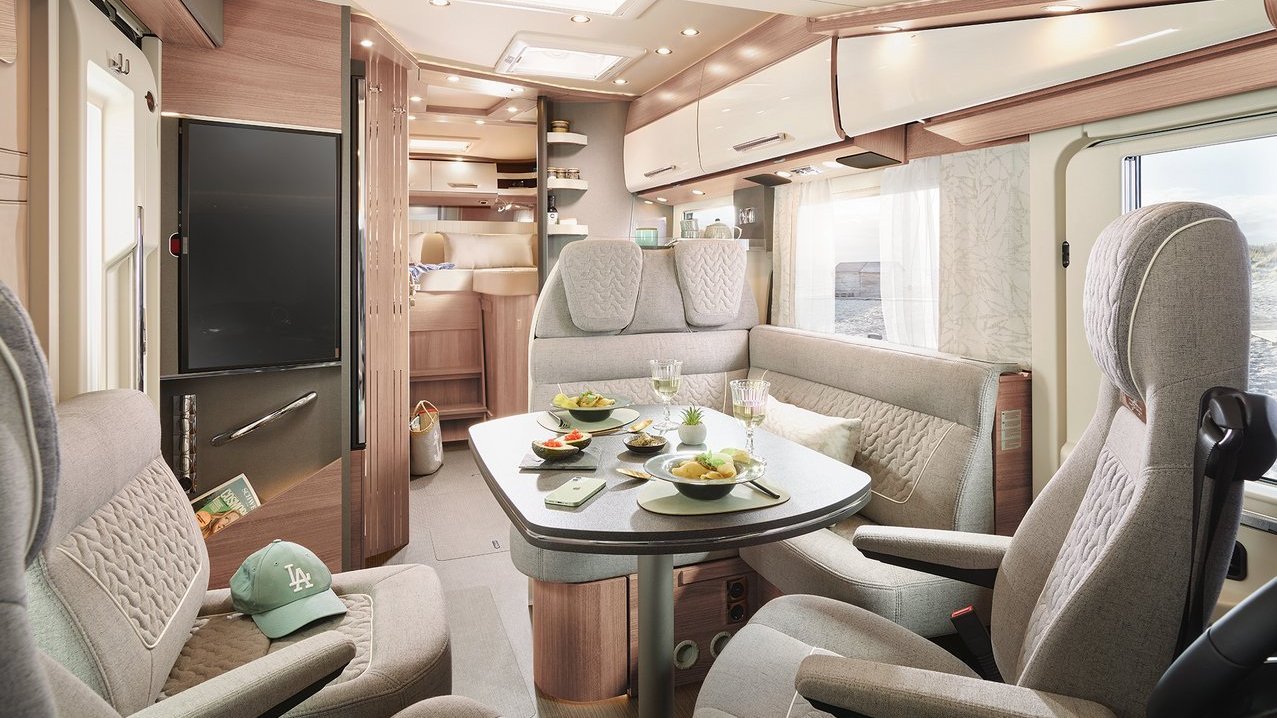

You always have maximum living comfort on board with the fully integrated C1-tourer motorhome - thanks to the high-quality furniture design, the continuous one-level
living area floor, the L-shaped lounge seating area with the ergonomically designed upholstery and the extra-large beds with sleeping areas up to 200 cm long.
DISCOVER THE LIVING AREA HIGHLIGHTS.
Exclusive lighting concept with LED lightning technology, main light with numerous spotlights and separately controllable indirect ambient light
All model
360° living room table with chrome piping, rotatable using a foot pedal and movable in two directions
All models
Swivel-out shoe cabinet with holding system for up to four pairs of shoes, integrated in the plinth of the seat bench, including LED ambient lighting
All models
TV pull-out system above the L-shaped lounge seating area for smart 24“ LED flat screen TV (optional)
Models I 141 KB-LE, I 143 KB-LE
Elegantly integrated designer TV cabinet for smart 32" LED flat screen TV (optional)
Model I 143 KB-LE
32” smart LED TV including wall bracket at convenient viewing height integrated in the entrance area (optional )
Models I 145 RB-LE / I 145 RB-LE superior
Smart 32" LED TV including “Quick-Up” TV pull-out system behind side seat bench backrest (optional)
Models I 148 KB-LE, I 149 RB-LE, I 150 RB-QB
DISCOVER THE KITCHEN HIGHLIGHTS.
Models I 141 KB-LE, I 143 KB-LE
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Sink cover embedded flush in the surface, can be used as additional work surface/chopping board (depending on model)
- 133 l Slimtower fridge with door that opens at both sides and separate freezer compartment
- 3-ring hob with one-piece glass cover
- Capsule coffee maker with pull-out system (optional) in overhead storage cabinet with vertical waveform
Model I 145 RB-LE, I 145 RB-LE superior
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Raised kitchen worktop for visual room partitioning and as an additional storage worktop
- Sink cover embedded flush in the surface, can be used as additional worktop/chopping board (depending on model)
- 133 l Slimtower fridge with door that opens at both sides and separate freezer compartment
- 3-ring hob with one-piece glass cover
- Spice rack on kitchen wall
- Indirect ambient lighting in floor plinth
- Integrated bottle cabinet
- Capsule coffee maker incl. pull-out system (optional)
Model I 148 KB-LE
- Large work surface
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Designer overhead storage compartment with vertical waveform
- 153 l fridge opposite with door opening at both sides and separate freezer compartment
- Spice rack on kitchen wall
- Sink cover embedded flush in the surface, can be used as additional work surface/chopping board
- Raised kitchen worktop for visual room partitioning and as additional storage area
- Indirect ambient lighting in floor plinth
- 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base
- Capsule coffee maker with pull-out system (optional) in overhead storage cabinet with vertical waveform
Models I 149 RB-LE, I 150 RB-QB
- Curved, extra large work surface, extended into the round bathroom wall
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Designer overhead storage compartment with vertical waveform
- 153 l fridge opposite with door opening at both sides and separate freezer compartment
- Spice rack on kitchen wall
- Integrated bottle cabinet
- Sink cover embedded flush in the surface, can be used as additional work surface/chopping board
- Raised kitchen worktop for visual room partitioning and as additional storage area
- Indirect ambient lighting in floor plinth
- 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base
- Capsule coffee maker with pull-out system (optional) in overhead storage cabinet with vertical waveform
DISCOVER THE BATHROOM & CHANGING ROOM HIGHLIGHTS.
Model I 141 KB-LE
- Practical comfort in a small space
- Internal swivelling wall and sectional shower door, a large shower room is created with just two manual operations
- Shower room, completely separable from bathroom
- Large mirror with backlighting, additional cabinet unit with shelf arrangement and storage
- Solid bathroom door with interior hinges, metal handle and door lock
- Mini-Heki skylight in bathroom
- Room partitioning and a changing room are created in a single step
Model I 143 KB-LE
- Practical comfort in a small space
- Spacious round shower, completely separable via a sliding door
- Integrated shower shelf and towel rail in the Mini-Heki
- Large mirrored storage cabinet with shelving
- Spacious wash stand base unit
- Solid bathroom door with interior hinges, metal handle and door lock
- Room partitioning and a changing room are created in a single step

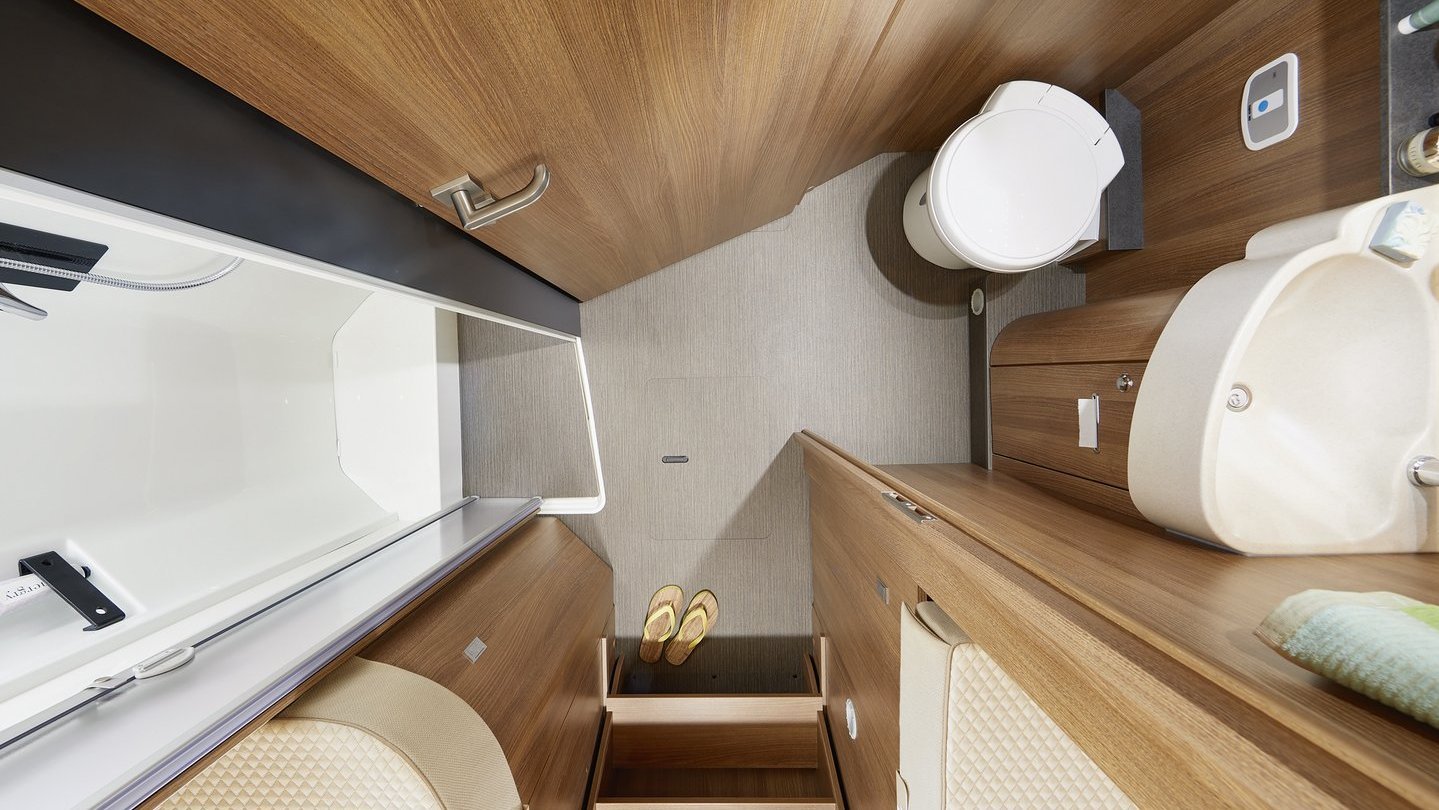

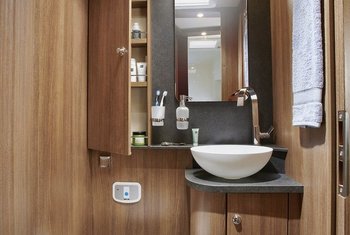

Models I 145 RB-LE, I 145 RB-LE superior
- “One level” step-free shower access via shower floor inlay in living area floor design, can be removed when showering
- Roof light in shower room including towel rail above round shower
- Mini Heki skylight in washroom
- Washstand base cabinet with toilet roll holder, countertop washbasin and mirror (lightweight 3.5 t models)
- Large mirrored storage cabinet and spacious washstand base cabinet with toilet roll holder (comfort 4.2 t models)
- Dressing room with lockable washroom door or luxury bathroom door to living area
- Solid wood sliding door in front of sleeping area (depending on model)
- Pull-out TV wall and room divider in front of sleeping area (standard on 148 RB-QB comfort 4.2 t models)
Model I 148 KB-LE
- Round shower, completely separable from bathroom
- Integrated shower shelf and towel rail in the Mini-Heki
- Large mirrored storage cabinet with shelving arrangement and large wash stand base unit
- Mini-Heki skylight in bathroom
- Numerous shelves
- Solid bathroom door with interior hinges, metal handle and door lock
- A room partition and a changing room that is completely separated from the living/sleeping area are created in three steps
C1-tourer I 149 RB-LE
C1-tourer I 150 RB-QB
Models I 149 RB-LE, I 150 RB-QB
- Spacious bathroom / toilet with shower opposite
- “One level” step-free shower access via shower floor inlay in living area floor design, can be removed when showering
- Large mirrored storage cabinet and large wash stand base unit
- Mini-Heki skylight in bathroom
- Numerous shelves
- Solid luxury bathroom door with interior hinges, metal handle and door lock
- A room partition and a changing room that is separated from the living/sleeping area are created in just two steps (I 149 RB-LE)
- A room partition and a changing room with TV wall that is separated from the living/sleeping area are created in just a few steps (I 150 RB-QB)
DISCOVER THE SLEEPING AREA HIGHLIGHTS.
Models I 141 KB-LE, I 143 KB-LE
- Extra large sleeping areas up to 200 cm long with sleeping area extension between the beds with an additional mattress and adjustable head sections
- Wardrobes below the lengthways single beds, conveniently accessible from front and above via the lift function and the divided mattress
- Pull-out access steps including sleeping area extension with additional cushion (depending on model)
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional )
Models I 145 RB-LE, I 145 RB-LE superior
- Extra-large sleeping area up 200 cm in length
- Wardrobes below the lengthways single beds, conveniently accessible from front and above via the lift function and the divided mattress
- Pull-out access steps including sleeping area extension with additional cushion (depending on model)
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional)
Models I 148 KB-LE, I 149 RB-LE
- Extra large sleeping areas up to 200 cm long with sleeping area extension between the beds with an additional mattress and adjustable head sections
- Wardrobes beneath the lengthways single beds are easily accessible from the front and above via the lift function and the divided mattress (I 148 KB-LE driver’s side only)
- Pull-out access steps including sleeping area extension with additional cushion
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional )
Model I 150 RB-QB
- Extra large sleeping area with adjustable head section
- Wardrobes on the left and right of the queen-size bed
- Large drawer at front of queen-size bed
- Fold-away mattress section at passenger side for extra-wide passage
- Unique: pull-out TV wall and room divider for partitioning off the bathroom area
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional)
C1-tourer I Technology & standard equipment.
THE PERFECT TRAVEL
COMPANION
DRIVER’S CABIN DESIGN
ON-BOARD TECHNOLOGY
Electrical equipment, water supply, warm air storage heating technology
Additional heat radiation in driver’s cabin area
thanks to heated dashboard surface, therefore less cold radiation from the windscreen into the driver's cabin/living area (using heat convectors with Alde warm water heating)
Truma Combi 6 warm air storage heating technology
with numerous warm air outlets throughout the double floor, the living area, the scooter garage, the driver's cabin and the cold-sensitive door entrances
“easy change” gas bottle compartment
extra low for convenient bottle changing, both bottles individually accessible (not I 141 KB-LE, I 143 KB-LE)
Heated battery centre
with battery master switch: lightweight 3.5 t models: 90 Ah lithium-ion battery included in Basic-Plus Package, optionally extendible to up to 150 Ah. Comfort 4.2 t models: 1 x 80 Ah gel battery, optional up to 150 Ah lithium-ion battery.
Electrical centre
easily accessible in scooter garage
Central water drain
and water tanks in the frost-protected double floor; can also be operated from the outside through the XL habitation door.
Gas bottle compartment in rear area
with separate exterior door (I 141 KB-LE, I 143 KB-LE). Optional: comfort gas bottle pull-out system
STANDARD EQUIPMENT
AL-KO low frame Carthago special light
(lightweight 3.5 t models) and special (comfort 4.2 t models)
Aguti ‘Roadliner’ driver and passenger comfort seats
with Carthago label, in same material as living area, rotatable, with integrated seat belts and padded armrests
Dashboard integrated in living area
With leather-covered moulded part, practical sideboard and preparation for integrated reversing camera monitor and drinks bottle holder
Exclusive lighting concept with LED lighting technology
with separately controlled, indirect ambient lighting main light with numerous spotlights
Comfortably equipped kitchens
3-ring hob with divided glass cover* for additional storage area and work surface extension due to wall holder for sink cover
Spice rack
Design element and practical detail at the same time – secure storage for spices
in the kitchen area (I 148 KB-LE)
Seitz S4 habitation window,
double frame with insulated glazing and no thermal bridge, insect screen blind and pleated blackout blind
XL habitation door “premium two 2.0”
with extra-wide door window, pleated blackout blind and integrated insect screen roller blind
Access to the garage from both sides
convenient access thanks large scooter garage doors at the driver and passenger sides
