Discover the A-class Carthago chic e-line motorhome from 4.5 t to 5.5 t.
More comfort, more self-sufficiency, more independence.
THE CROWN JEWEL OF THE CARTHAGO LINER CLASS
The A-class chic e-line impresses with its unique “emotionale" furniture design, the two level room concept and the tremendous living area height of 211 cm. The self-sufficiency champion is more exclusive and comfortable than ever before. The large round seating area with luxury living area table and wide side seat bench invites you to spend time in the living area. The comfort corner kitchen has a pull-out kitchen work surface with worktop extension. The comfort luxury bathroom of the A-class chic e-line scores points with a completely separable changing room, creating sufficient room and privacy for undisturbed freshening up. The large, heated double floor with a usable height of up to 70 cm provides a sufficient amount of storage space. This is conveniently accessible from both the outside and the inside.
Different layouts, two basic vehicles, plus two worlds of style and numerous worlds of living in the interior are available for fulfilling your individual requirements. This luxury motorhome leaves nothing to be desired, and impresses with its appealing design and outstanding living comfort. Discover the diversity, and design your chic e-line motorhome completely in accordance with your requirements.
Models:

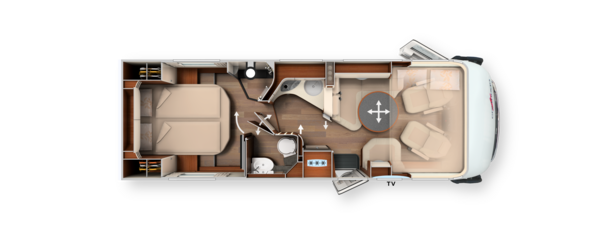

I 50 LE | I 50 LE DA | I 51 QB | I 51 QB DA
chic e-line XL
The XL crown jewel with maximum payload reserves
The XL layouts of the A-class chic e-line with double axle and permissible gross weight of up to 5.5 t score points with even more comfort on your travels. This begins with the XL round seating area with the long, pull-out side sofa, and continues with the XL bathroom with separate toilet room, open washing area, spacious round shower and completely separable changing room.
Models:

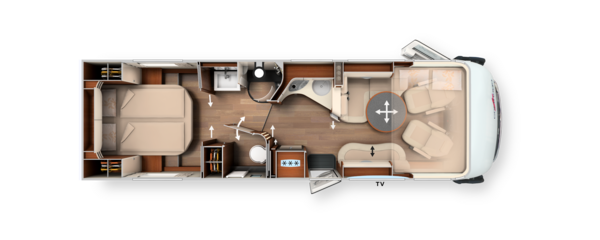

I 61 XL LE | I 64 XL QB

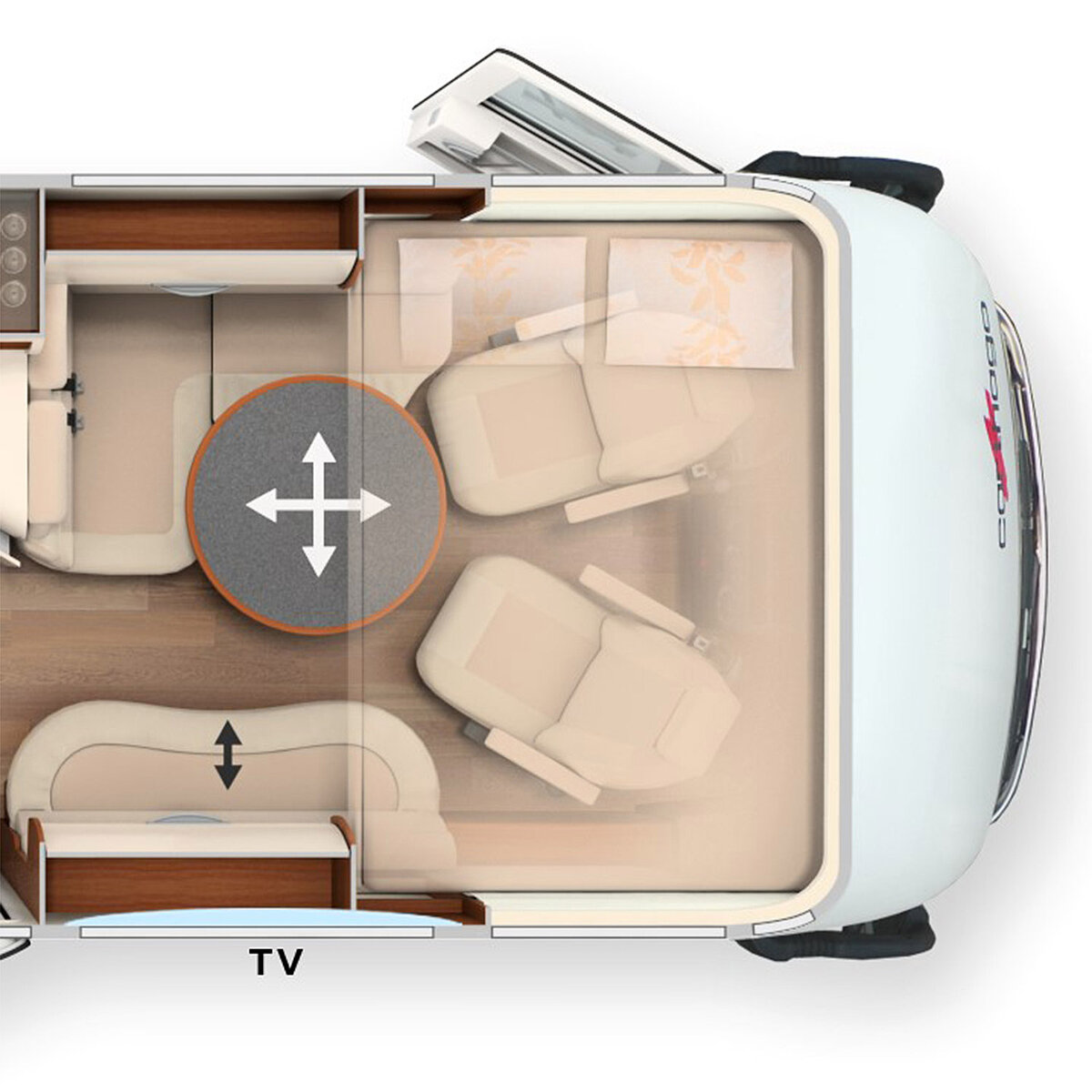

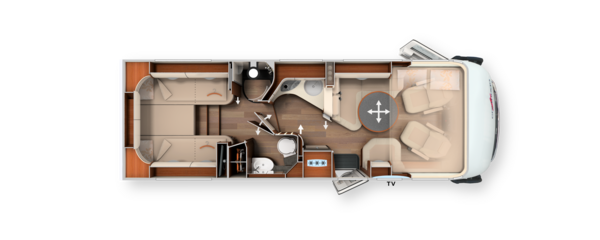

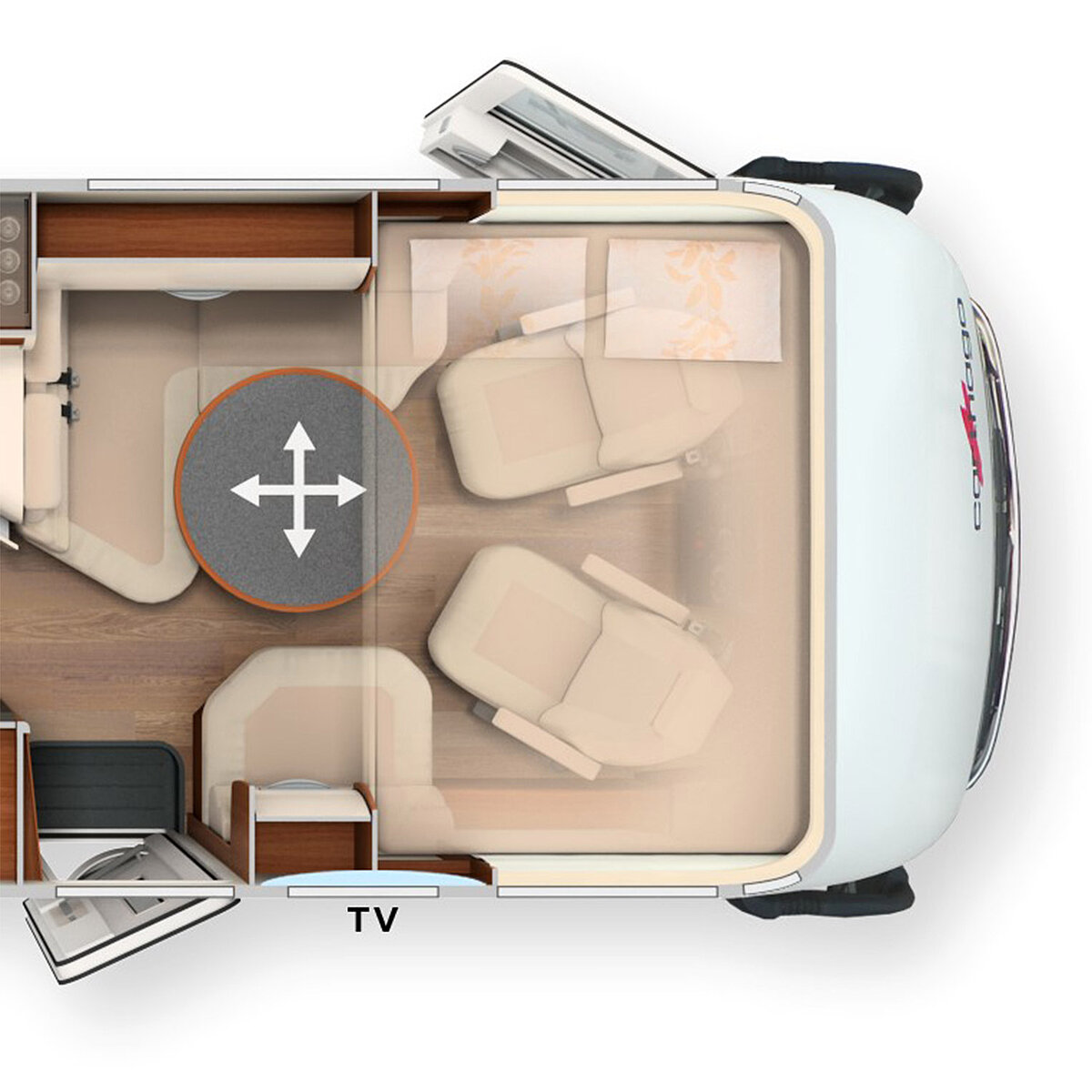

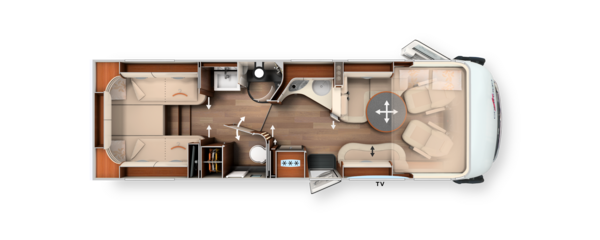

chic e-line layouts & 360° experiences.
DISCOVER THE PERFECT LAYOUT
FOR YOU.
You are guaranteed to find the right layout, including all of the associated technical data, using our practical filter function. And/or you can immerse yourself in our new, interactive 360° tours and discover your integrated motorhome with all of its special features.
Fiat Ducato
Fiat Ducato
Fiat Ducato
Fiat Ducato
Fiat Ducato
Fiat Ducato
Mercedes-Benz Sprinter
Mercedes-Benz Sprinter
Mercedes-Benz Sprinter
Mercedes-Benz Sprinter

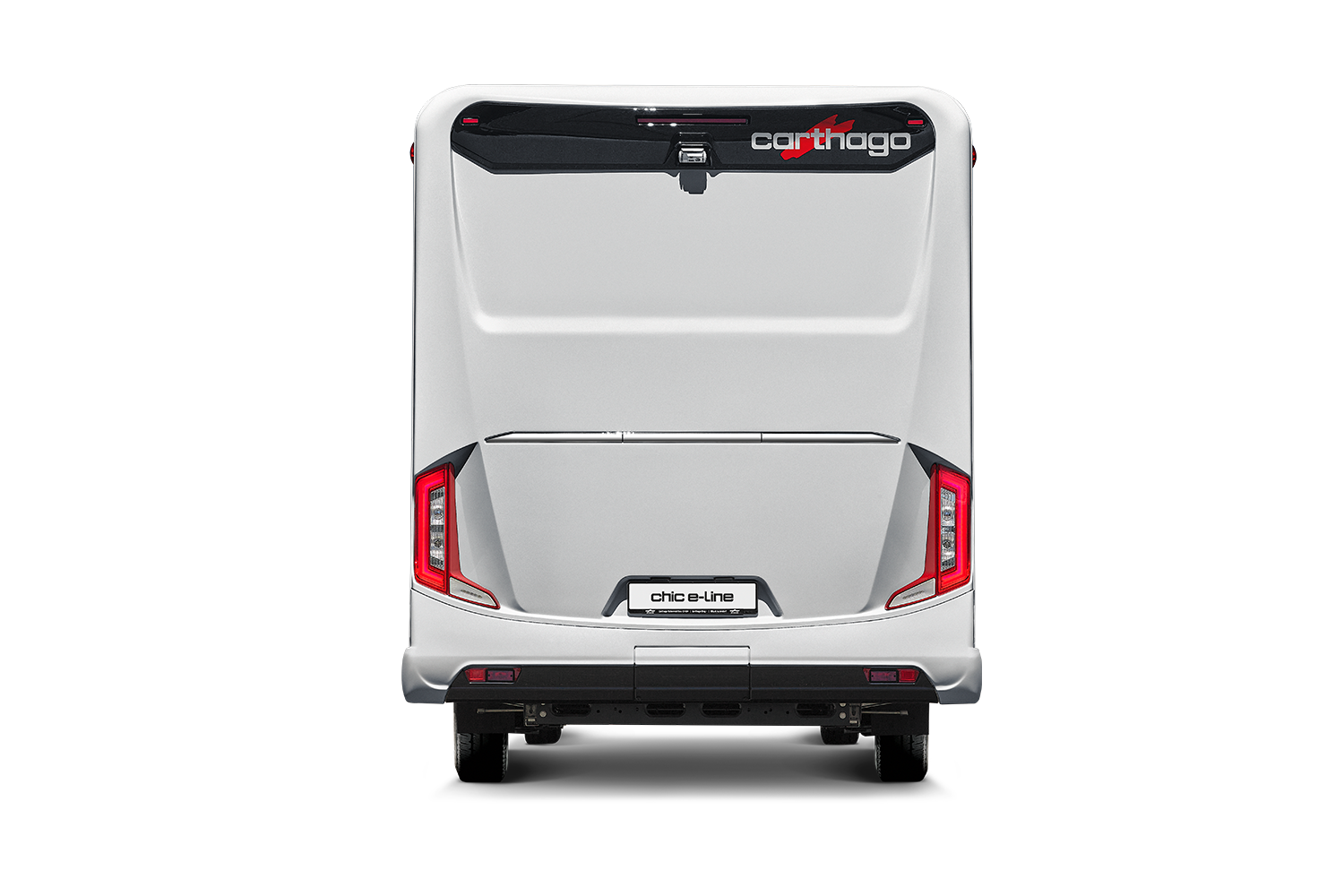

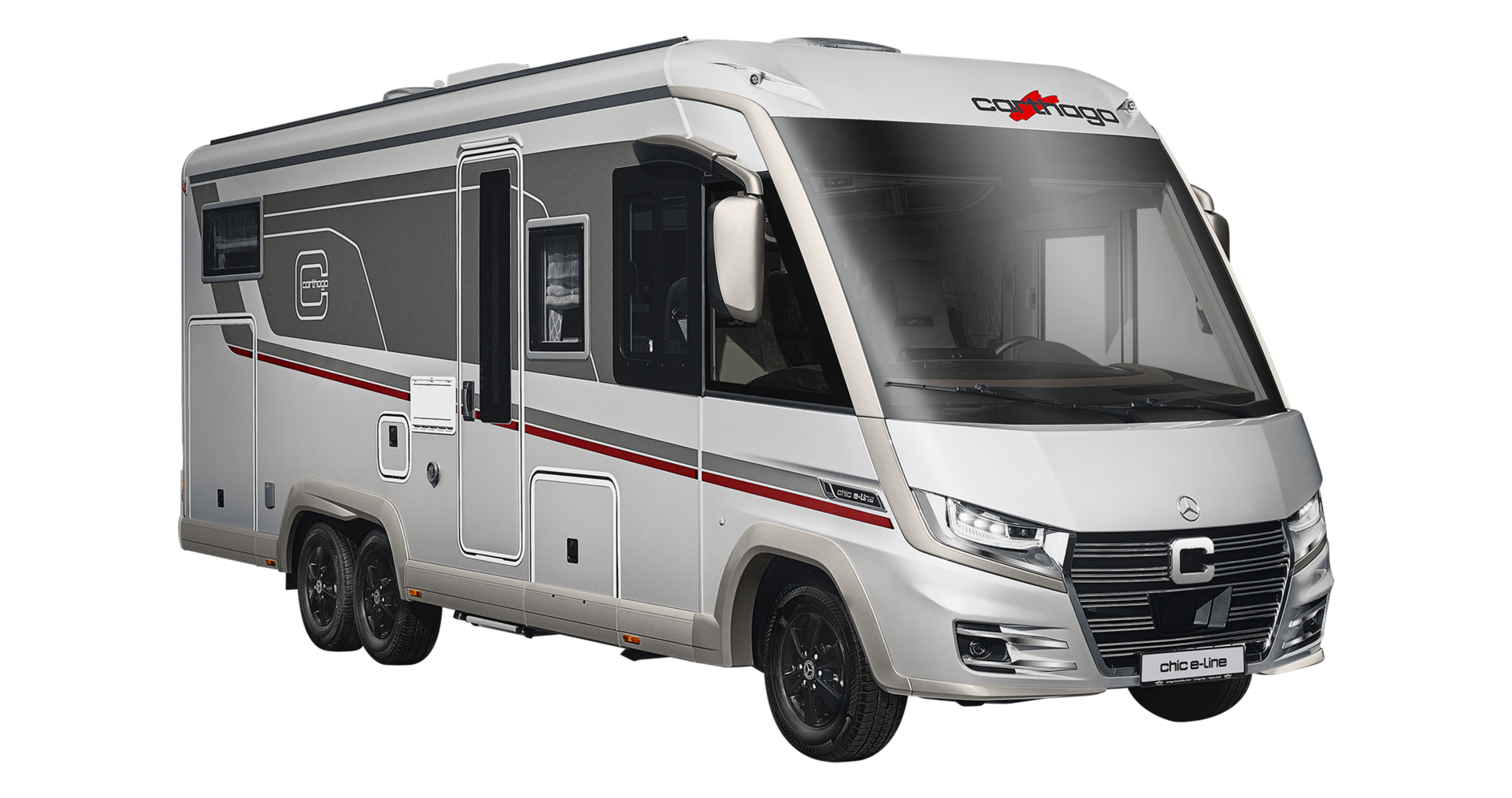

chic e-line exterior.
IMPRESSIVE ELEGANCE

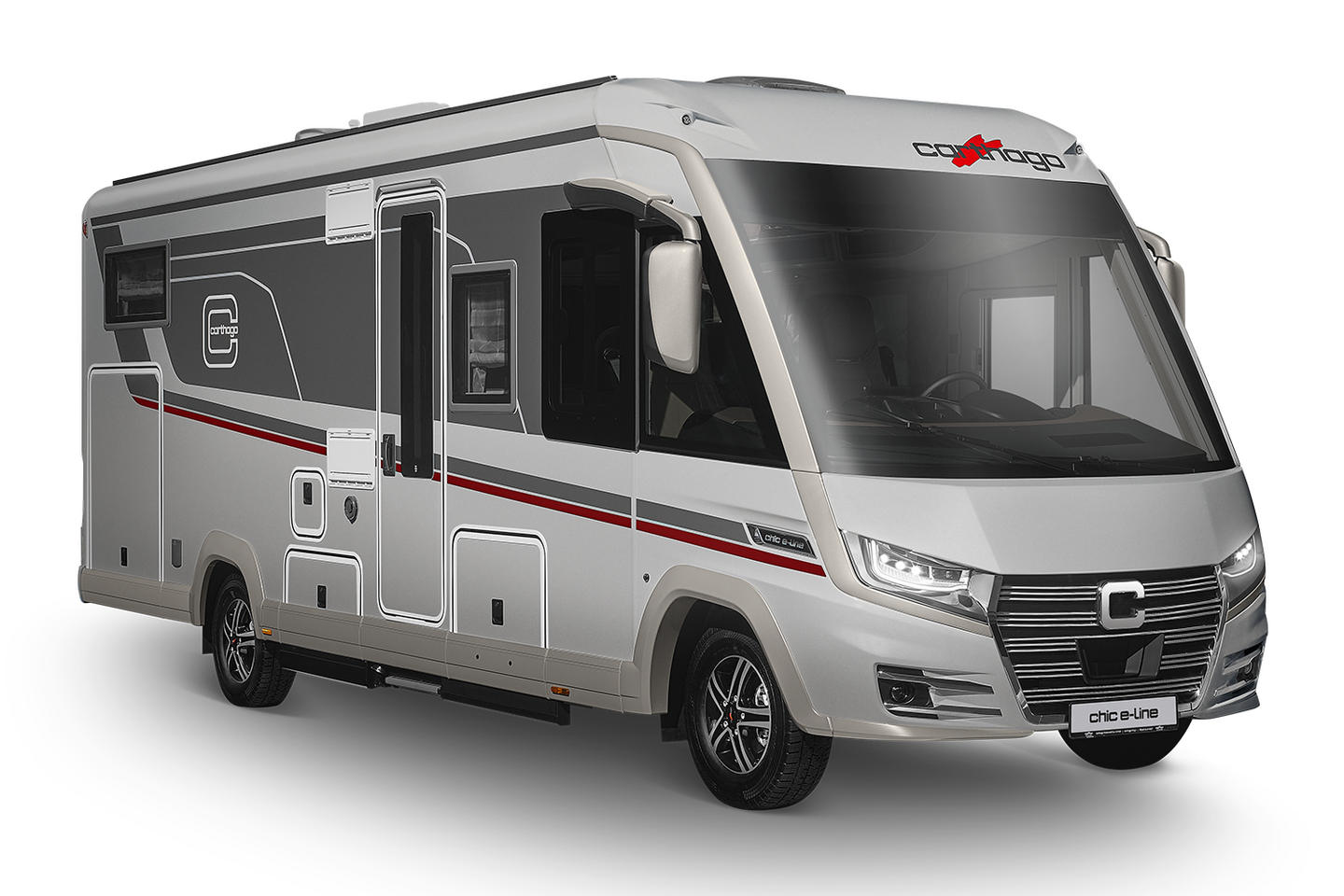

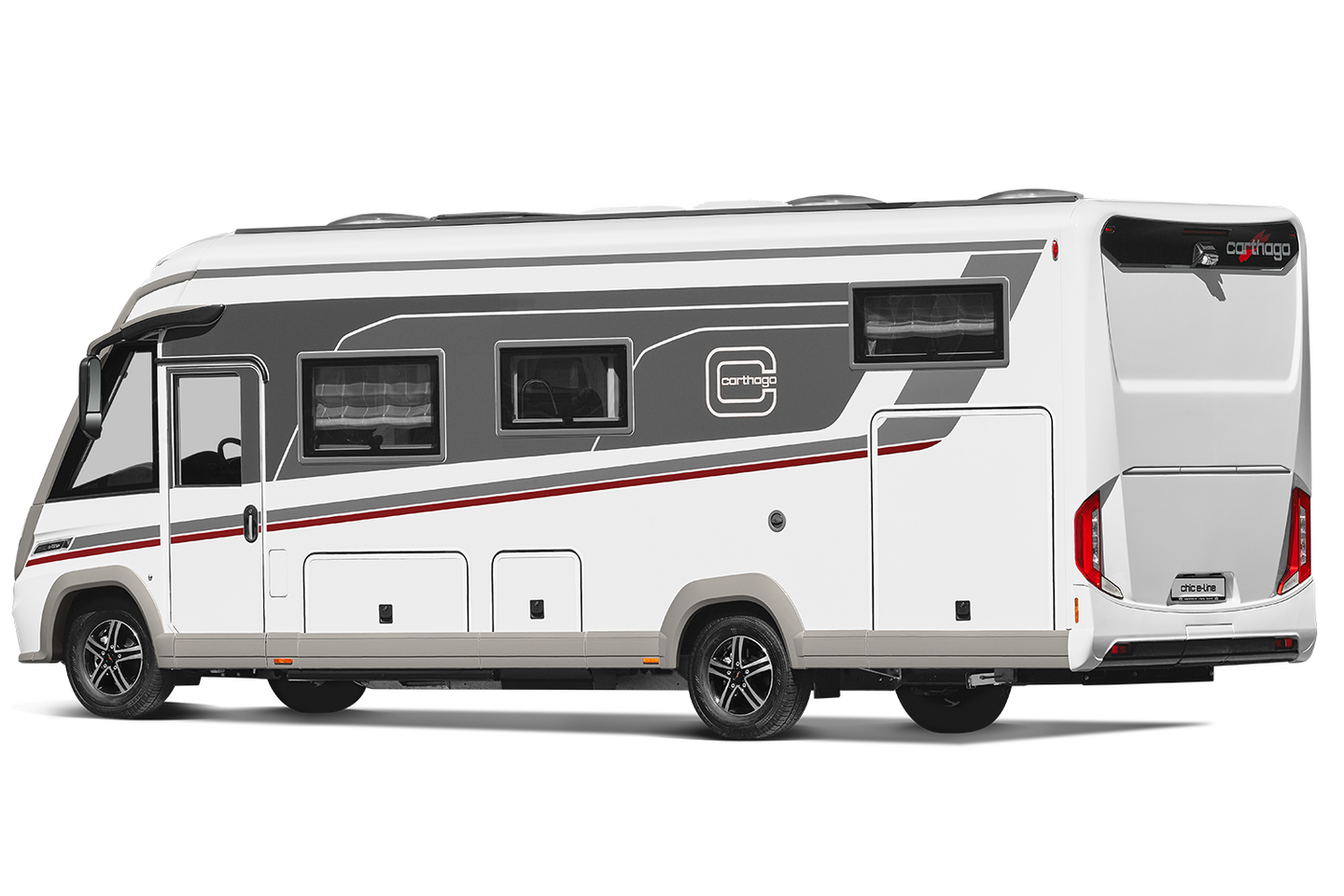

- FIAT DUCATO

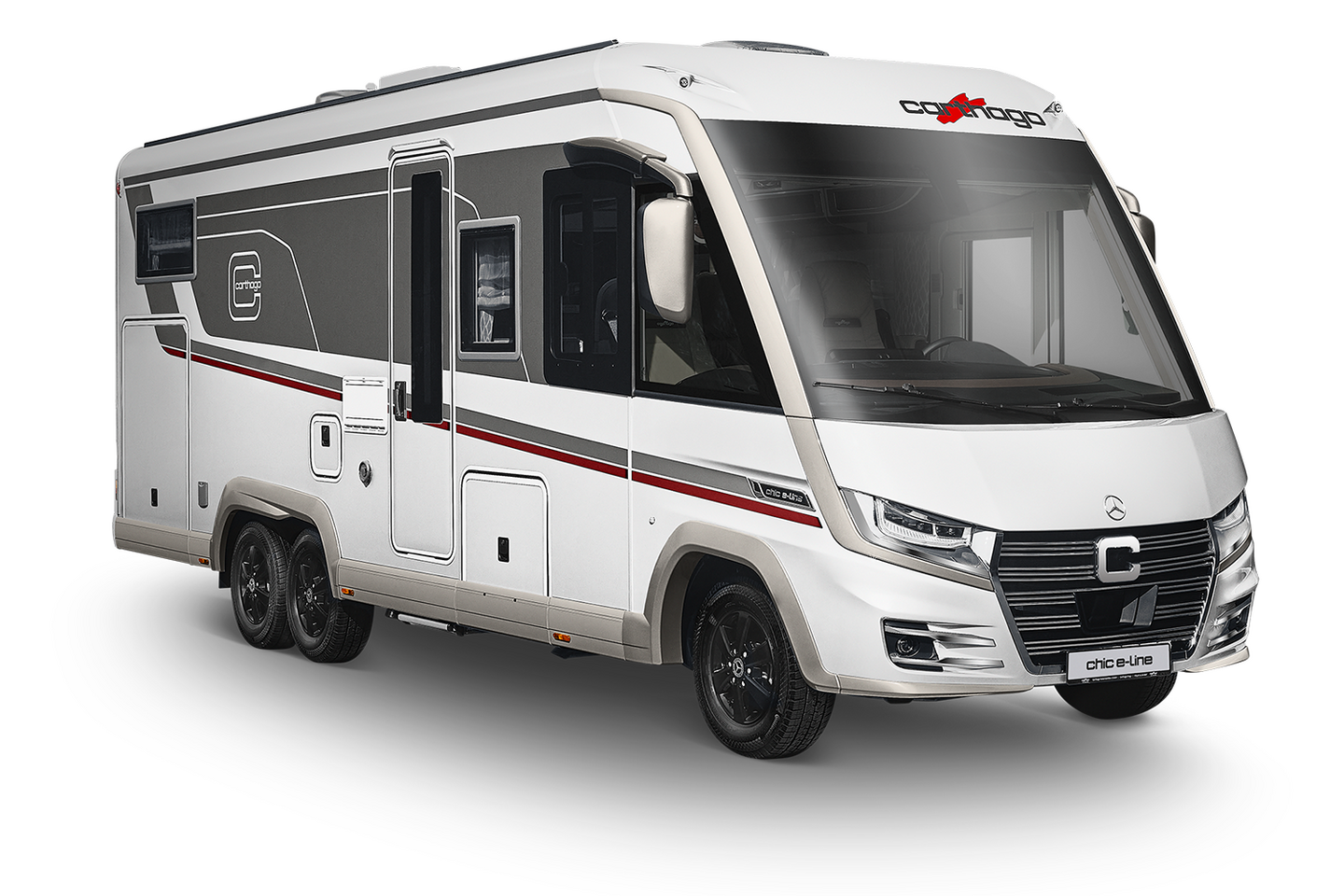

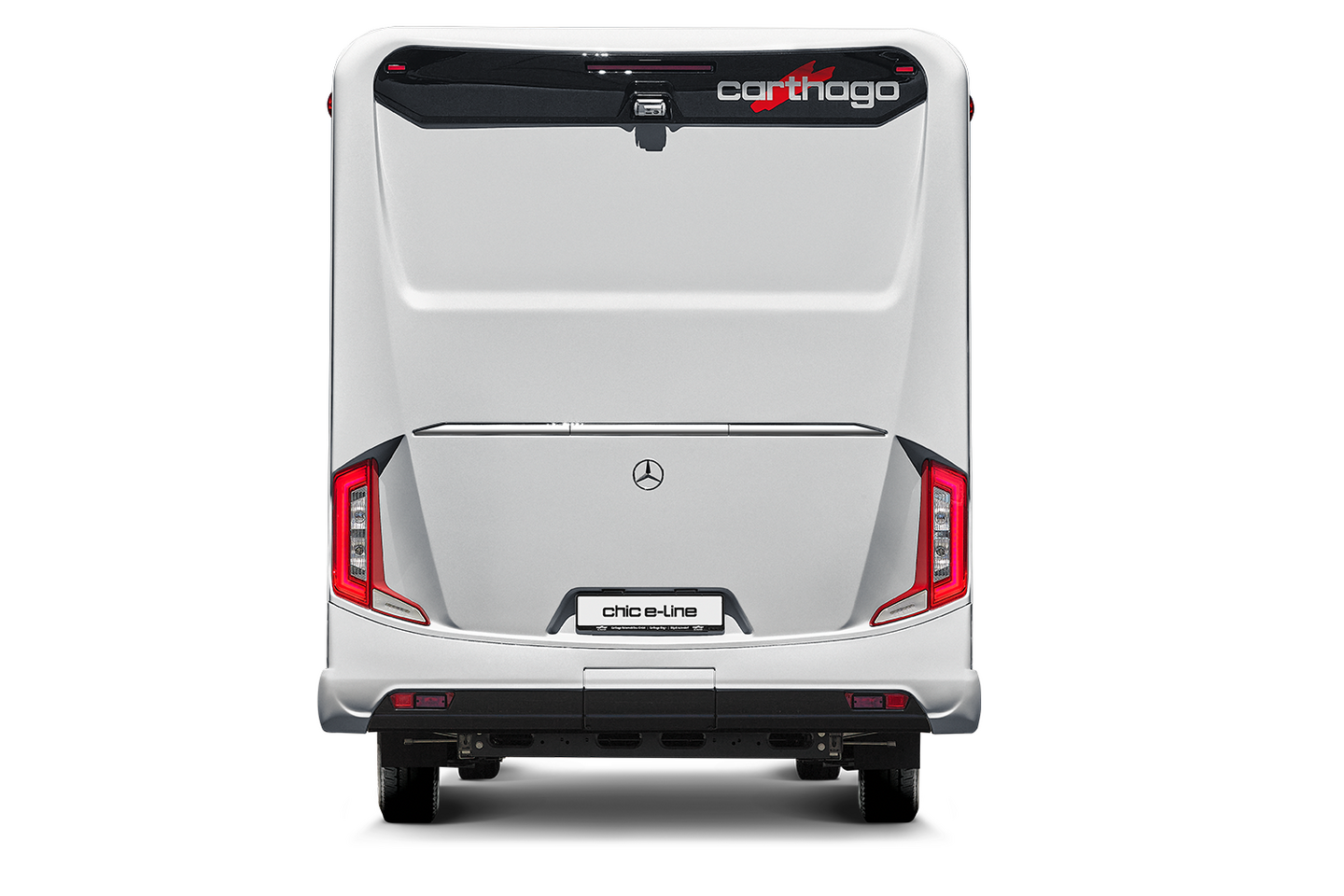

- MERCEDES-BENZ SPRINTER
- “SILVERLINE” EXTERIOR COLOUR
- XL LAYOUTS

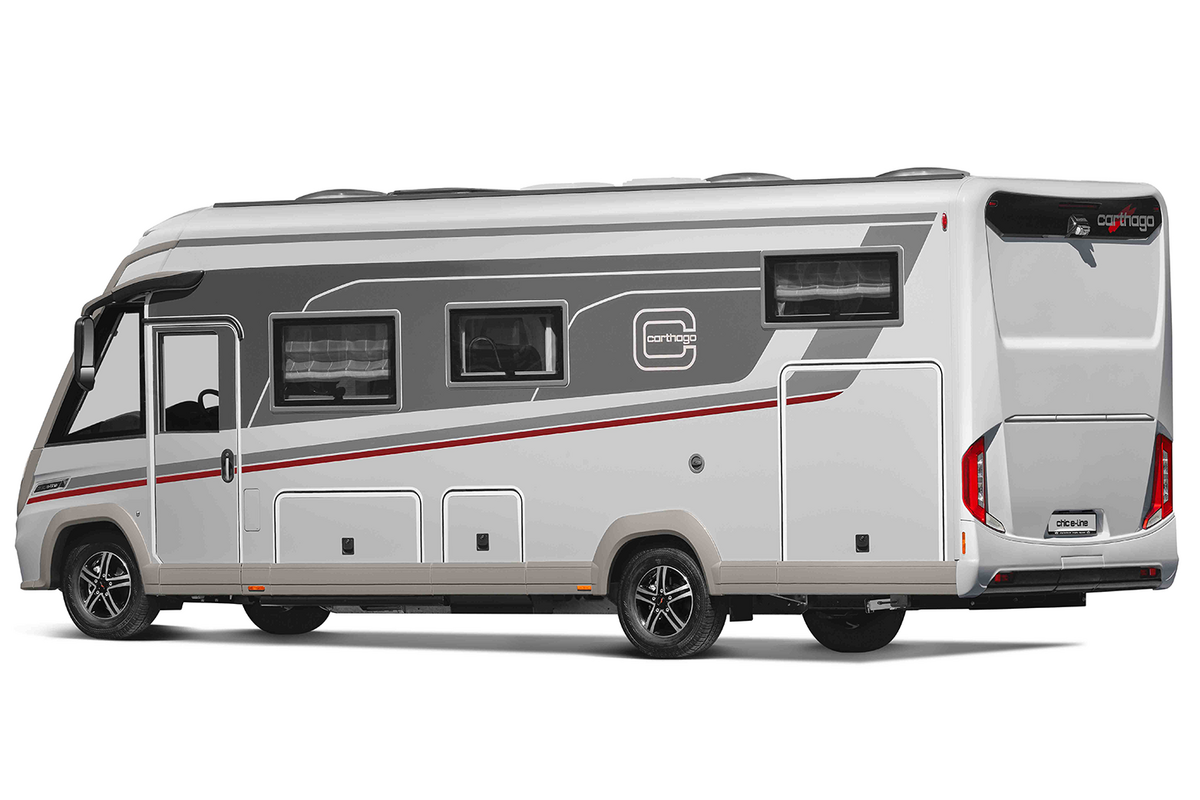

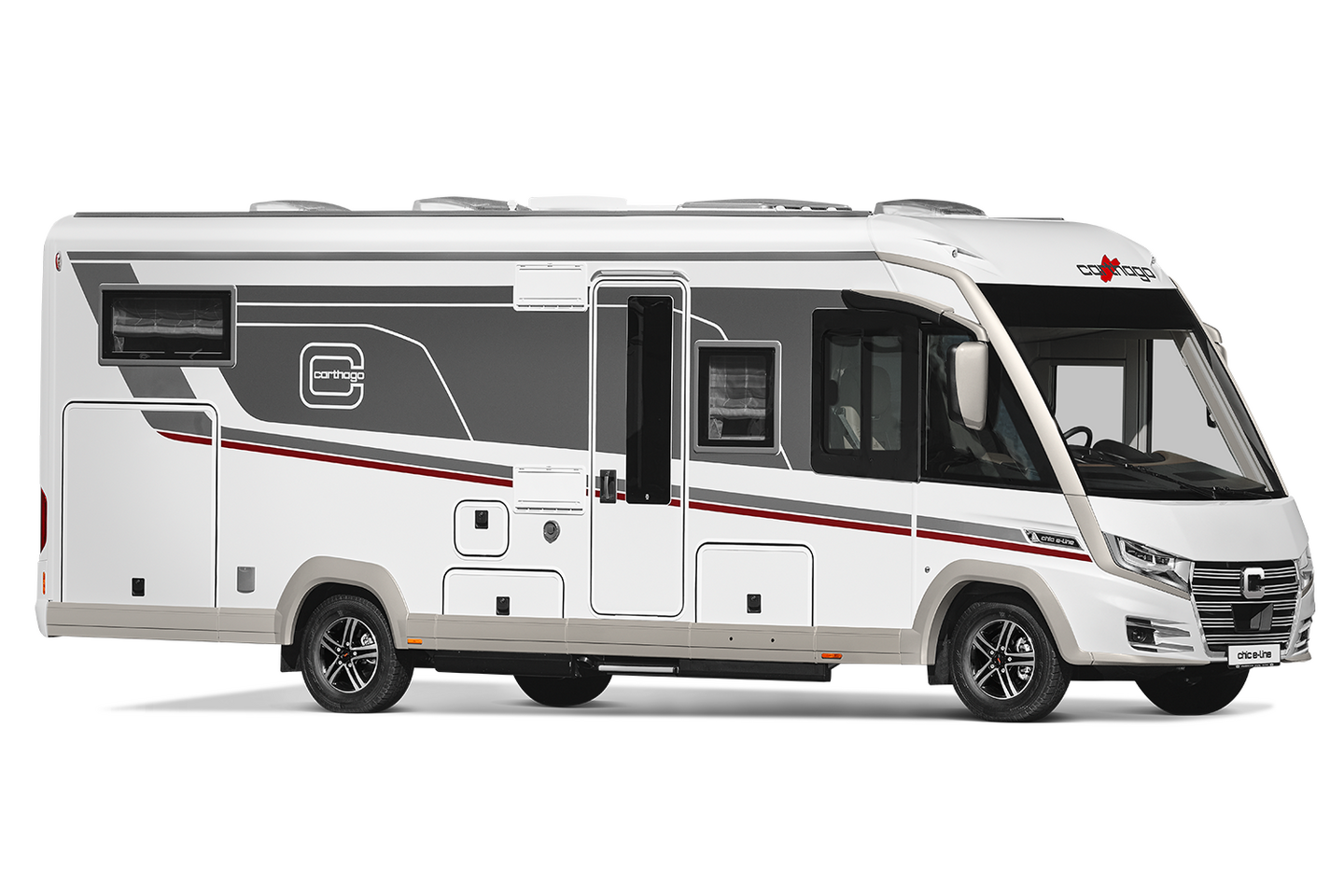

- Fiat Ducato 40 heavy single axle or double axle, AL-KO low frame special Carthago chassis with 198 wide wheelbase rear axle
- Safety package as standard: Airbag, ABS, ESP, ASR, electronic immobiliser, hillholder, Traction Plus, trailer stability control, collision braking system, automatic start/stop, cruise control, side wind assistant (single axle)

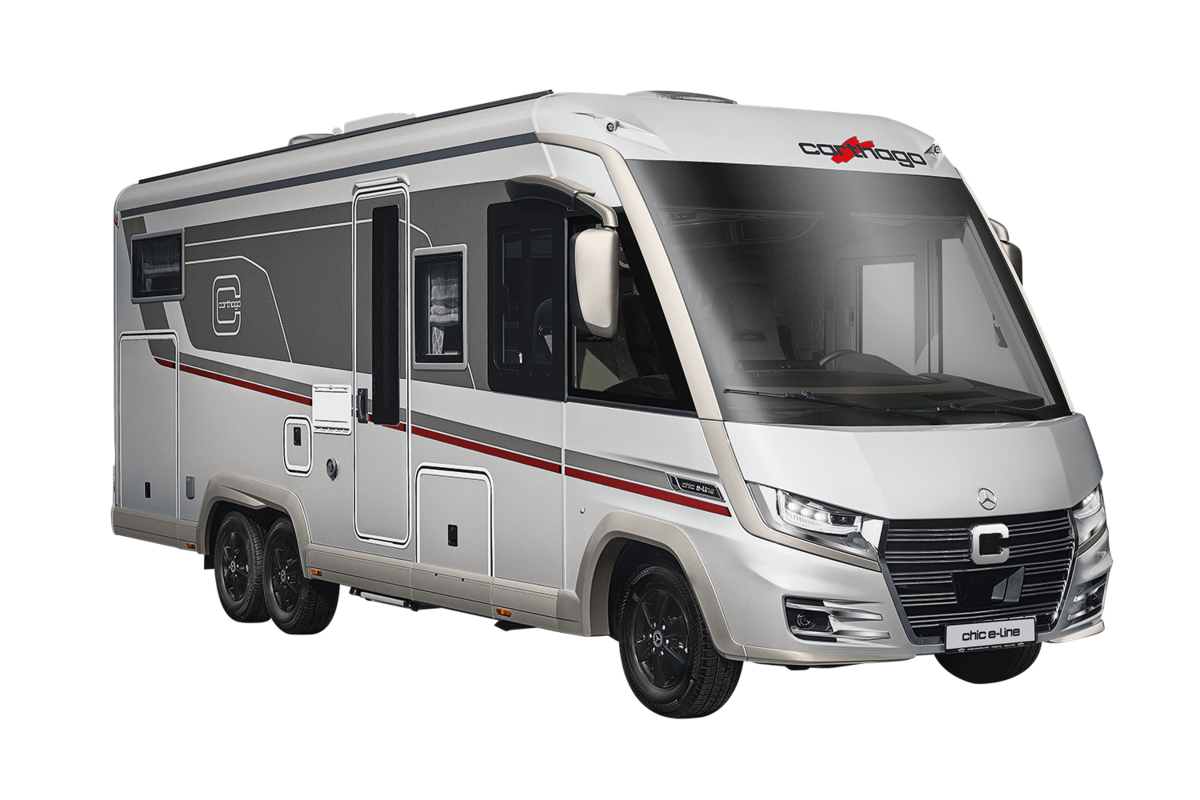

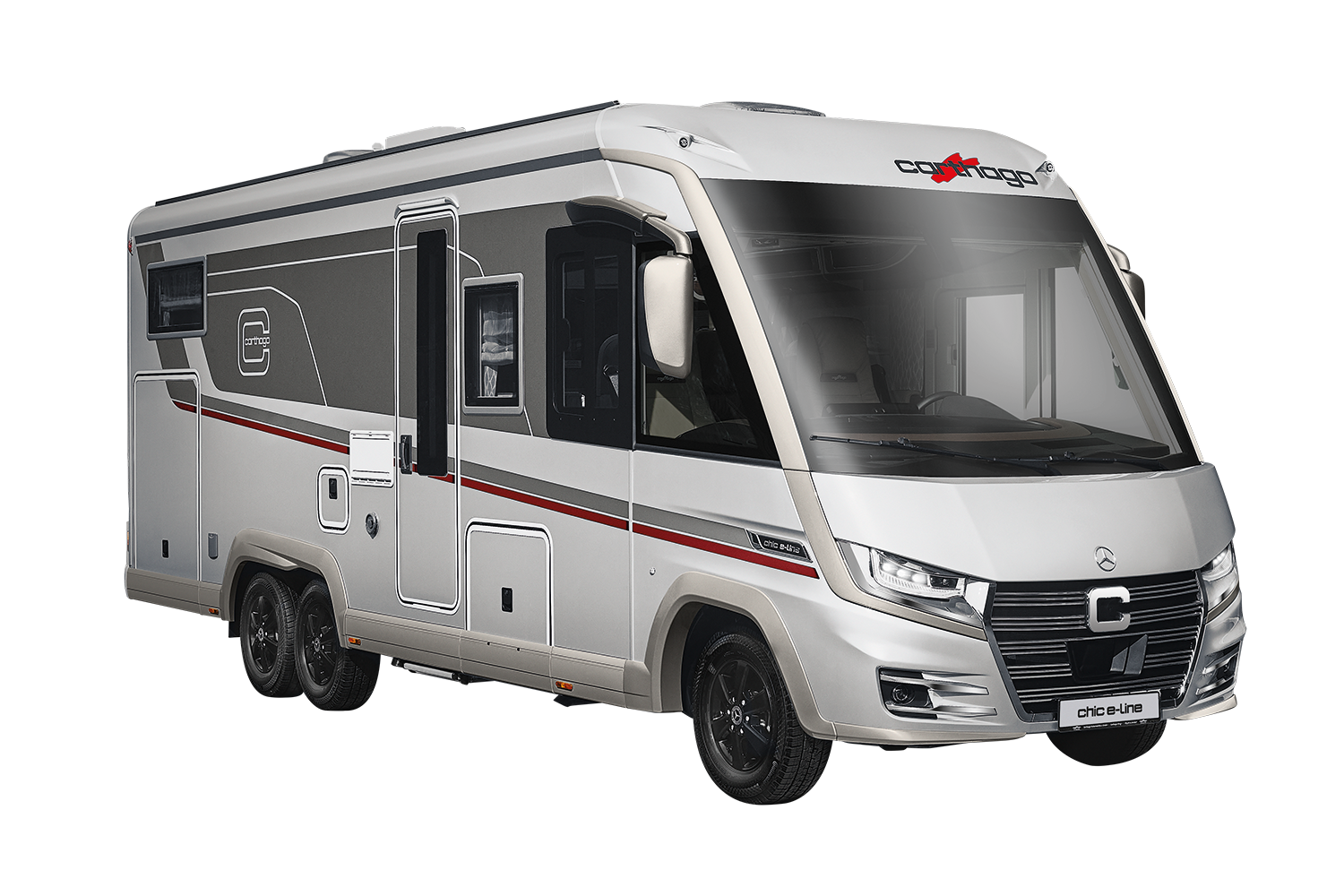

- Mercedes-Benz Sprinter 415 CDI single axle or double axle, AL-KO low frame special Carthago chassis with 198 wide wheelbase rear axle
- Standard safety package: Airbag, side wind assistant (single axle), hill descent control, hillholder, ABS, ASR, EBV, ESP
- Standard equipment: Active Brake Assist and Active Attention Assist
- Numerous modern driver assistance systems available

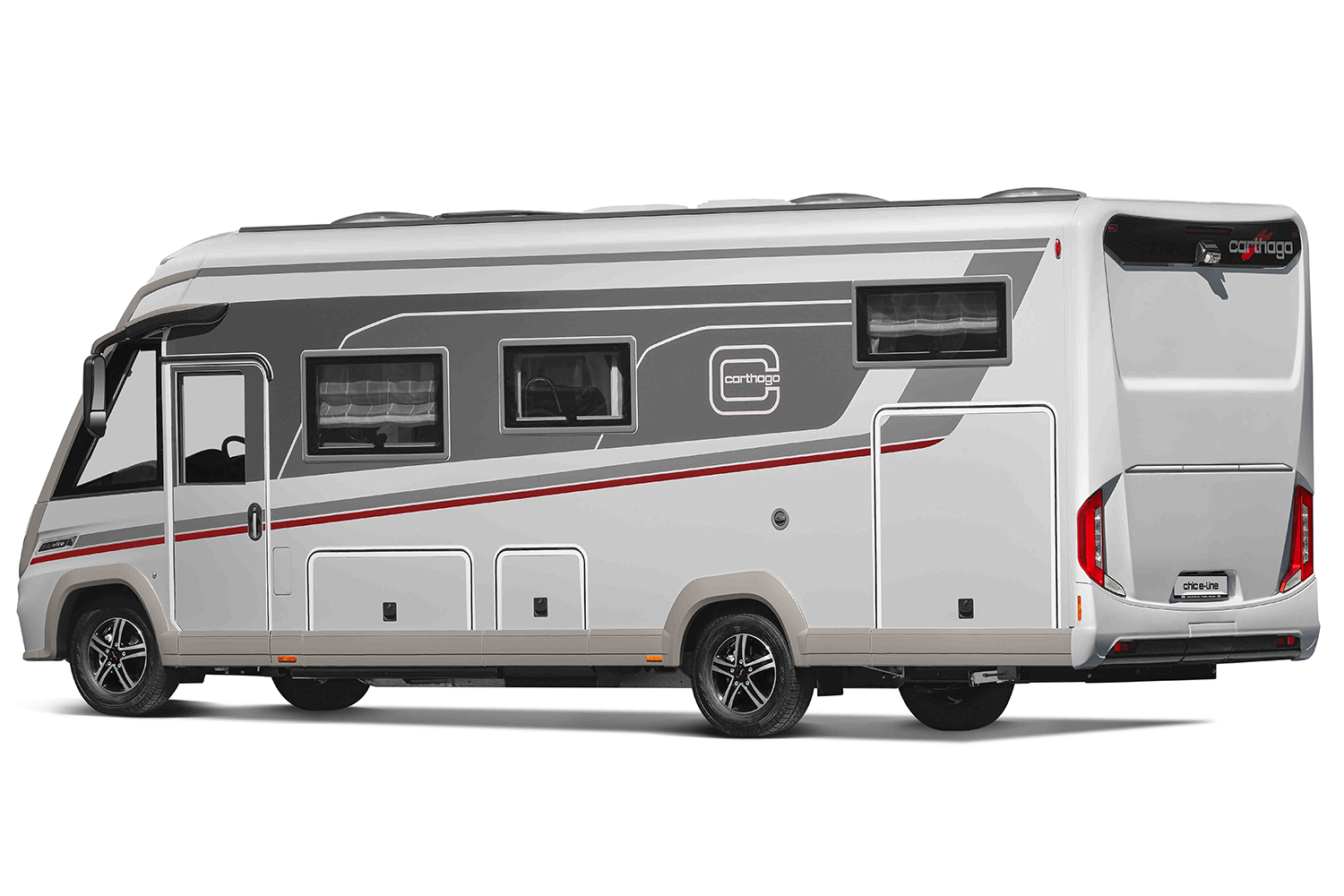

- With the optional “silverline” exterior colour concept, your A-class chic e-line will impress with its driver’s cabin and habitation in silver.

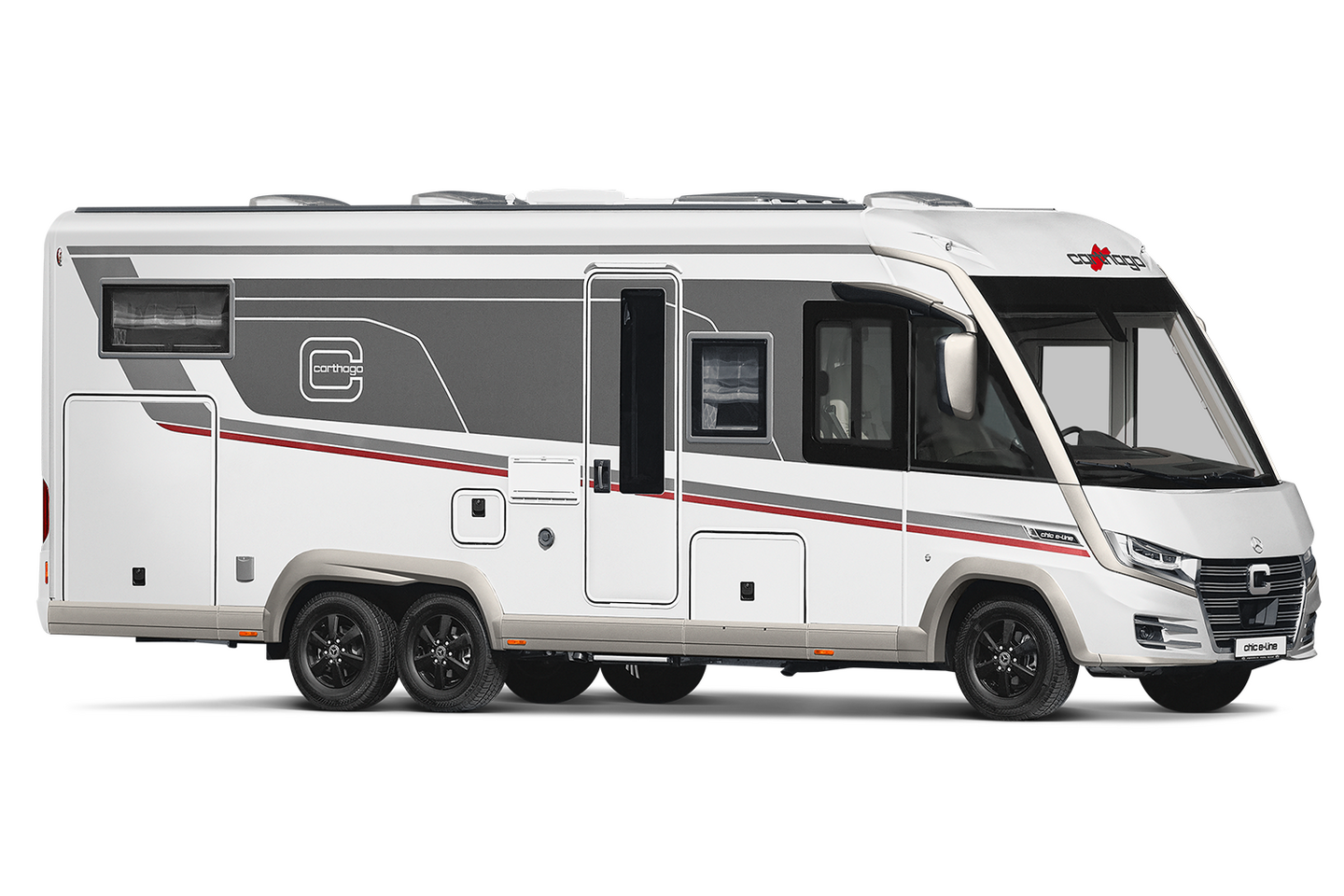

- The XL layouts score points with the Fiat Ducato heavy double axle or Mercedes-Benz Sprinter 415 double axle, AL-KO low frame special Carthago chassis with 198 cm wide wheelbase rear axle and permissible gross weight of up to 5.5 t.

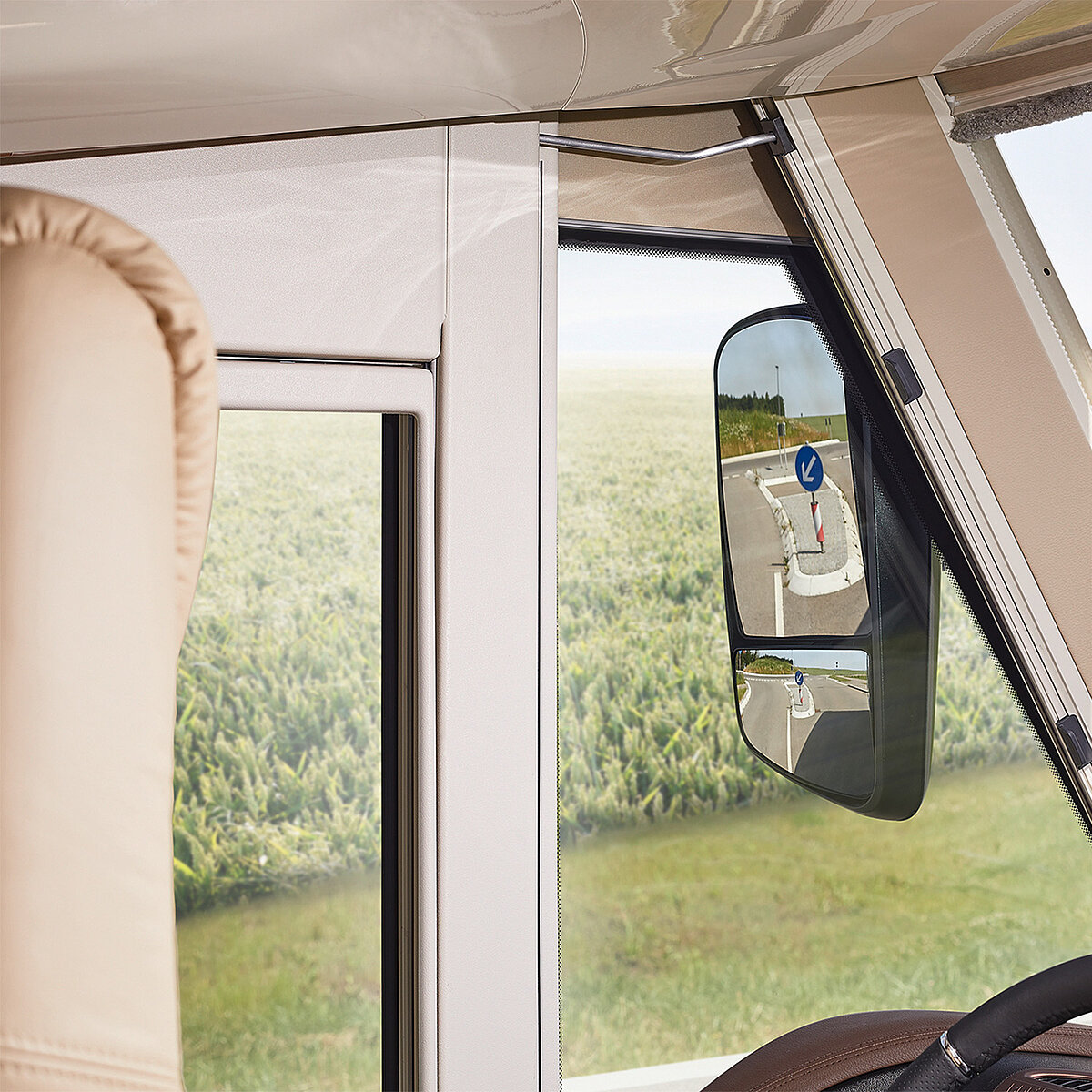

DRIVER’S CABIN VISIBILITY CONCEPT
Visibility equals safety: You have a view of the road sooner with the chic e-line A-class. The special sitting position while driving, the extra-large upwards and downwards viewing angle, the extra-low windscreen and the dashboard front which slopes steeply forwards provide visual contact with the road surface after just 2.77 m (on the Fiat chassis).
ROOF-TO-WALL CONNECTION
The typical Carthago curved roof is not only an unmistakeable design element, but with the frame members on the inside, it makes a decisive contribution to the rigidity of the main cabin. And all of this without any thermal bridges whatsoever. Another safety plus: reduced sensitivity to side wind.
ROOF STRUCTURE
The GRP exterior provides protection from hail, and the aluminium on the inside gives you protection from lightning strikes at the same time. The aluminium interior also takes over the function of heat storage in the winter.
SCOOTER GARAGE LOWERING
Deep lowering of the scooter garage means maximum storage space and minimum effort when loading. An extremely strong wall to floor connection due to form-fitted and bonded frame members provides a load-bearing capacity of up to 450 kg.
FLOOR PANEL
Provides all-round protection. The top and bottom are made from GRP, and between them there is a hard foam insulating core made from RTM Styrofoam. The high-stability floor has lifelong protection against humidity and rotting.
FLOOR-TO-WALL CONNECTION
Provided at both sides via a high-stability frame member. Similarly to aircraft construction, it is form-fitted and bonded along the entire length. And if the worst comes to the worst, it has the effect of side collision protection. An integrated thermal bridge stop reliably prevents any thermal bridges.
SIDE WALL STRUCTURE
Having aluminium not just on the exterior but also on the interior of the walls is a prerequisite for efficient heat storage. This produces the typical Carthago well-being climate. The homogeneous heat radiation acts like a wall heater.
EASE OF REPAIR
Wherever possible, attention is paid to segmentation during the development of the main body components. In event of damage, this makes replacement easier and saves money. For example, there is a separately replaceable rear bumper at the rear of every vehicle.
FULL LED HEADLIGHTS
with dipped beam, main beam and LED daytime driving lights for perfect illumination and excellent visibility.
“SAFETYLUXE” XL HABITATION DOOR
mit extrastarker und stabiler Tür, verbreitertem Durchgangsmaß 63 cm und großem Türfenster. Der chic e-line bietet Ihnen auch das optionale Paket "Aufbautür Luxus" mit elektrischer Zuziehhilfe zum leisen Schließen, zusätzliche LED-Beleuchtung im Türfenster für Funktion "coming & leaving home", schlüsselloses Zugangssystem via RFID-Chip und elektrische Türöffnungsunterstützung von innen und außen.

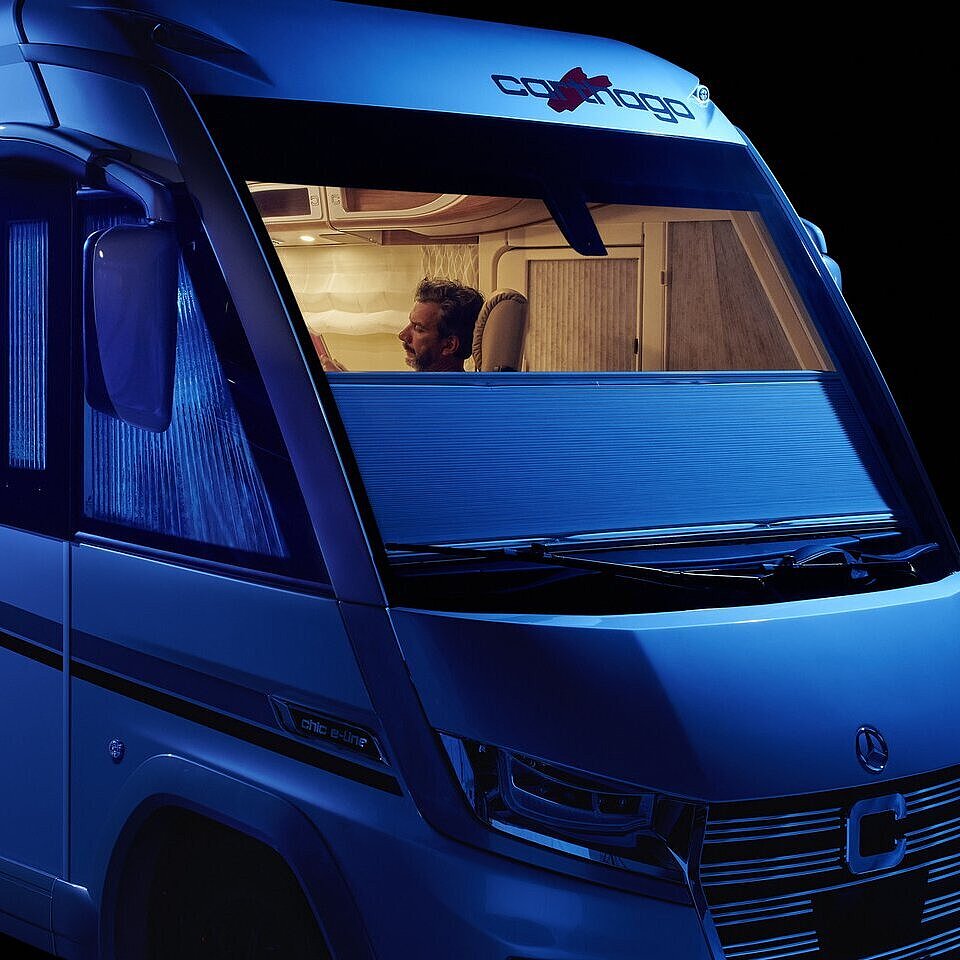

ELECTRIC PLEATED WINDSCREEN BLIND
With individually programmable privacy and sun visor function.
TESTED LIGHTNING PROTECTION
Aluminium on the roof and the inner walls provides protection like a Faraday cage. Additional lightning conductors in the chassis significantly * increase this protection effect. This was proven by the lightning protection test: a Carthago main cabin provides verified protection against lightning strikes!
chic e-line Highlight.
DOUBLE FLOOR
WITH LARGE STORAGE
More storage space - more room for your holiday!
Thanks to the unique double floor and many extra-deep storage compartments, the A-class motorhomes in the chic e-line model range have plenty of room for your entire holiday luggage! We don’t just concentrate on volume alone during development, but also ease of access during loading and unloading, and protection from frost.
- + Double floor with large heated storage compartment with usable height of up to 70 cm
- + Access from the exterior via several large hatches
- + Convenient interior access via the seat bench cover of the round seating area, the swing-up side seat bench and the large living area floor hatch
- + Large, central through-loading space (interior height up to 22 cm) with deeply lowered storage compartment (usable height up to 46 cm), also conveniently loadable through the XL habitation door via the large, self-supporting living area floor hatch
- + The entire double floor is heated with a climate storage function and underfloor heating effect
Scooter garage
with large interior height thanks to deep lowering, access from both sides via two large scooter garage doors at the driver and passenger sides, and loadable up 450 kg.
Load from the outside
Convenient loading of the double floor storage compartment via a large external hatch.
Unload from the inside
Easy removal of the storage compartment contents from the inside via the lift-up seat bench cover of the round seating area with patented fitting.
Loading from the outside
Large, additional double floor storage compartment with separate exterior hatch (depending on model).
Loading from the outside
Convenient loading of the double floor storage compartment via a large external hatch.
Unload from the inside
Convenient removal of the contents via the swing-up side seat bench.
Unload from the inside
Large living area floor hatch in the entrance area: Also conveniently loadable from the outside with the XL habitation door open
Scooter garage
with large interior height thanks to deep lowering, access from both sides via two large scooter garage doors at the driver and passenger sides, and loadable up 450 kg.
chic e-line interior.
THE
WORLDS OF STYLE
chic e-line interior.
THE WORLDS OF
LIVING
You have the choice between countless worlds of living for the A-class chic e-line. Our upholstery collections are not just good to look at, but they also have numerous practical advantages:
- Highly effective stain protection: Liquids do not penetrate into the fabrics, meaning that the majority of stains can be easily wiped off with a damp cloth.
- Excellent anti-fade properties
- Hard-wearing and easy to look after
- Washable curtains and decorative cushion covers
- Antibacterial mattress cover

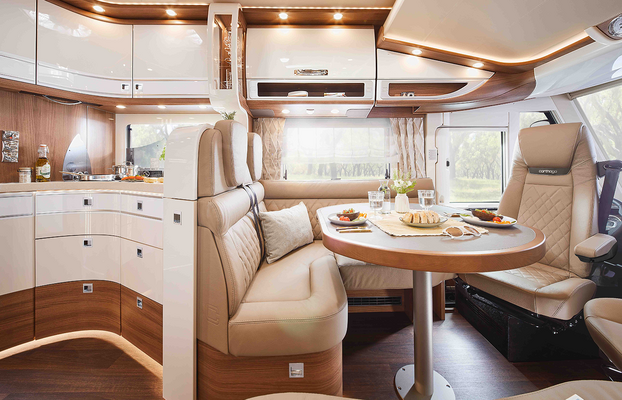

chic e-line interior.
MAXIMUM
LIVING
COMFORT

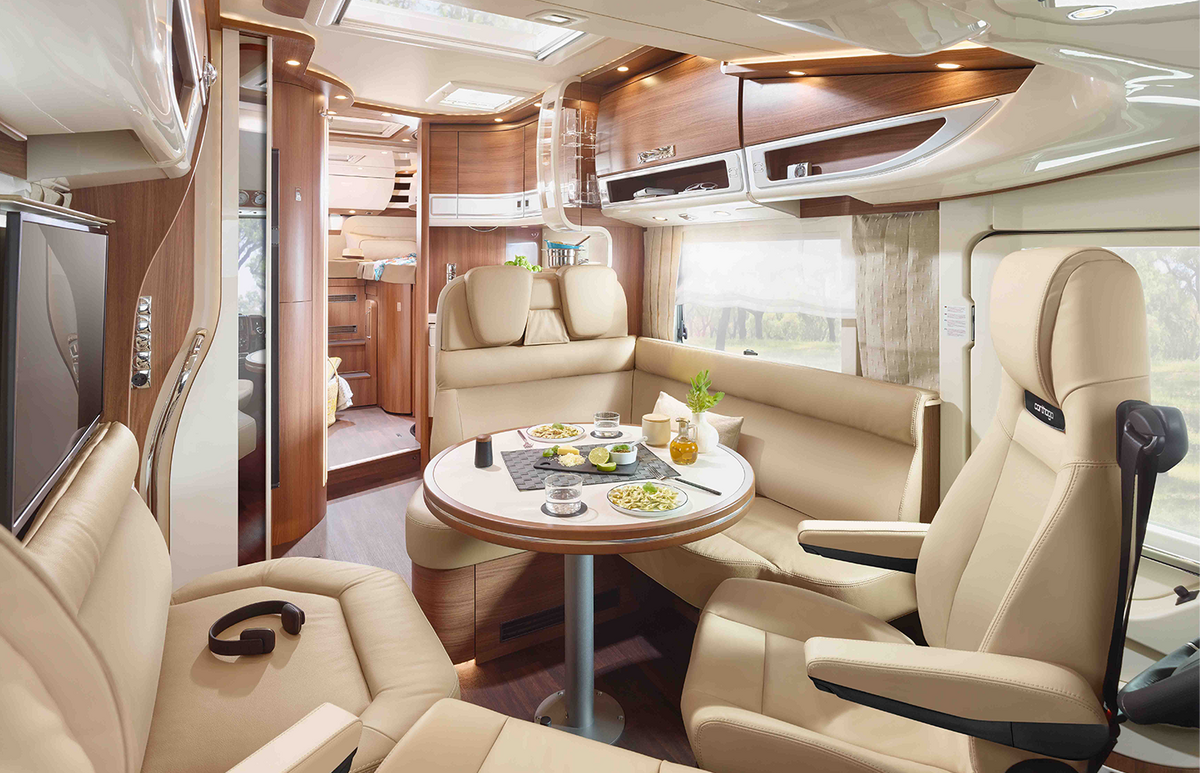

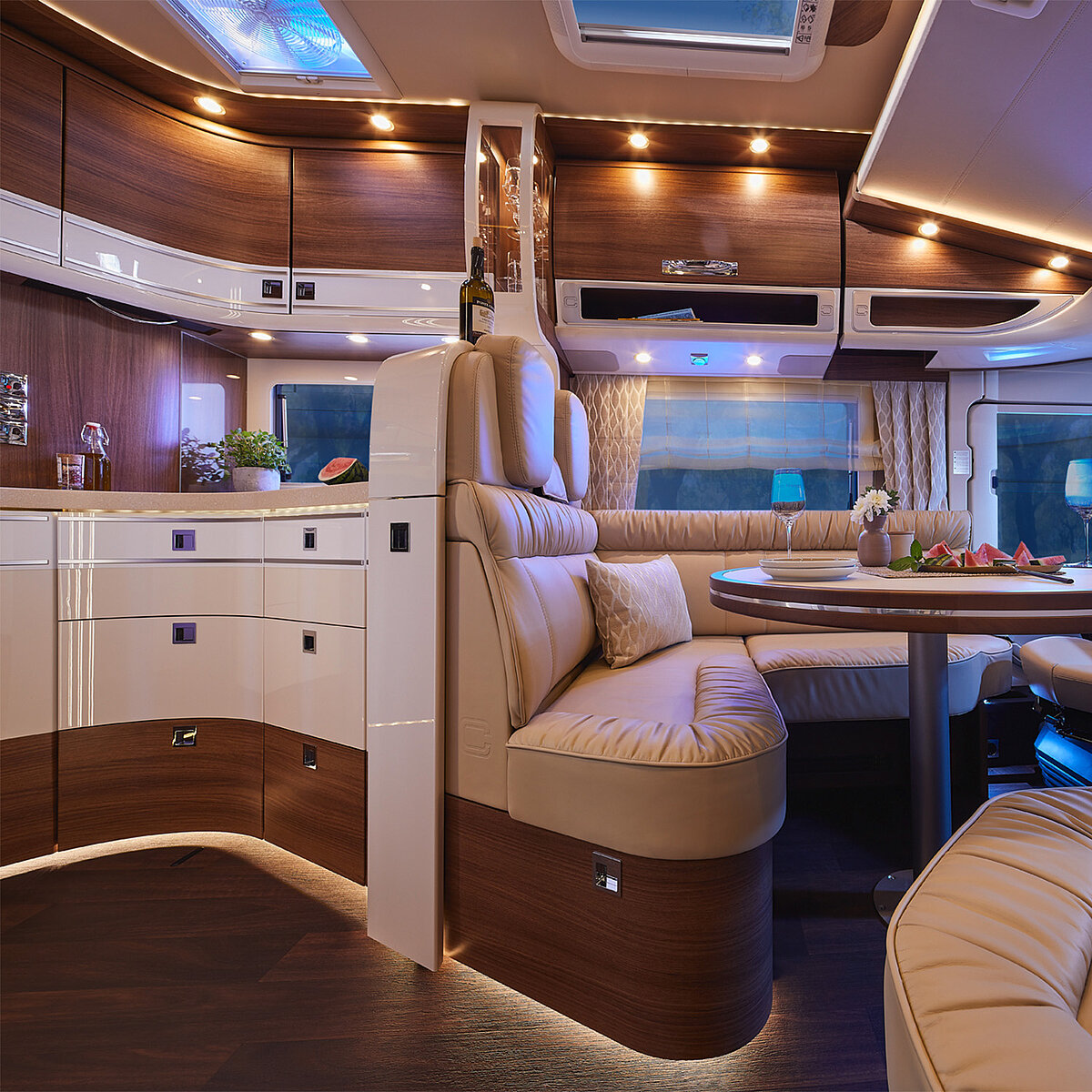

Maximum living comfort has top priority in our A-Class chic e-line. A cosy round seating area and a spacious comfort corner kitchen with a pull-out kitchen worktop await you.
The bathroom including changing room scores points with privacy and plenty of room, and the comfortable beds with the medically recommended, point elastic Carawinx sleeping system provide the necessary comfort in the sleeping area.

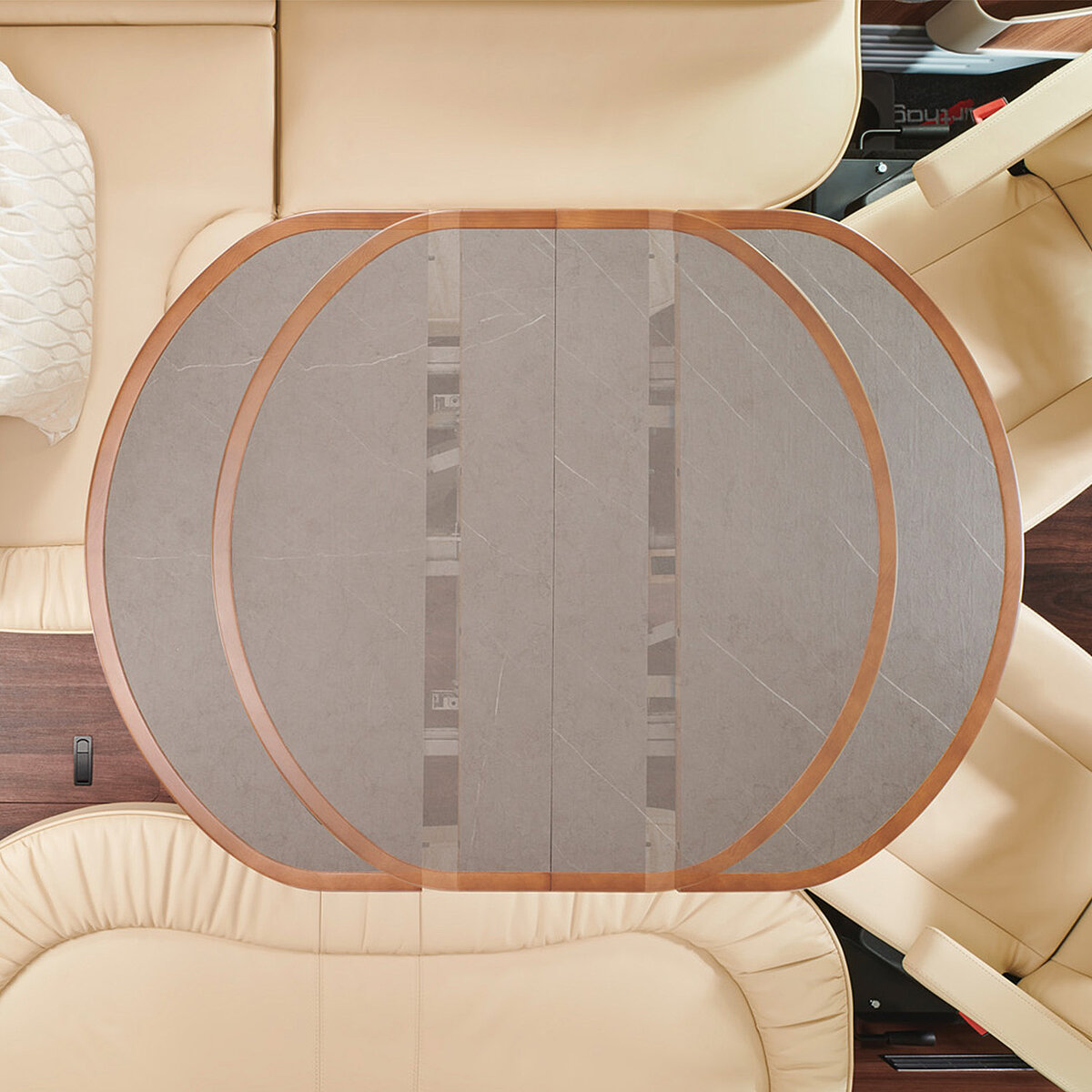

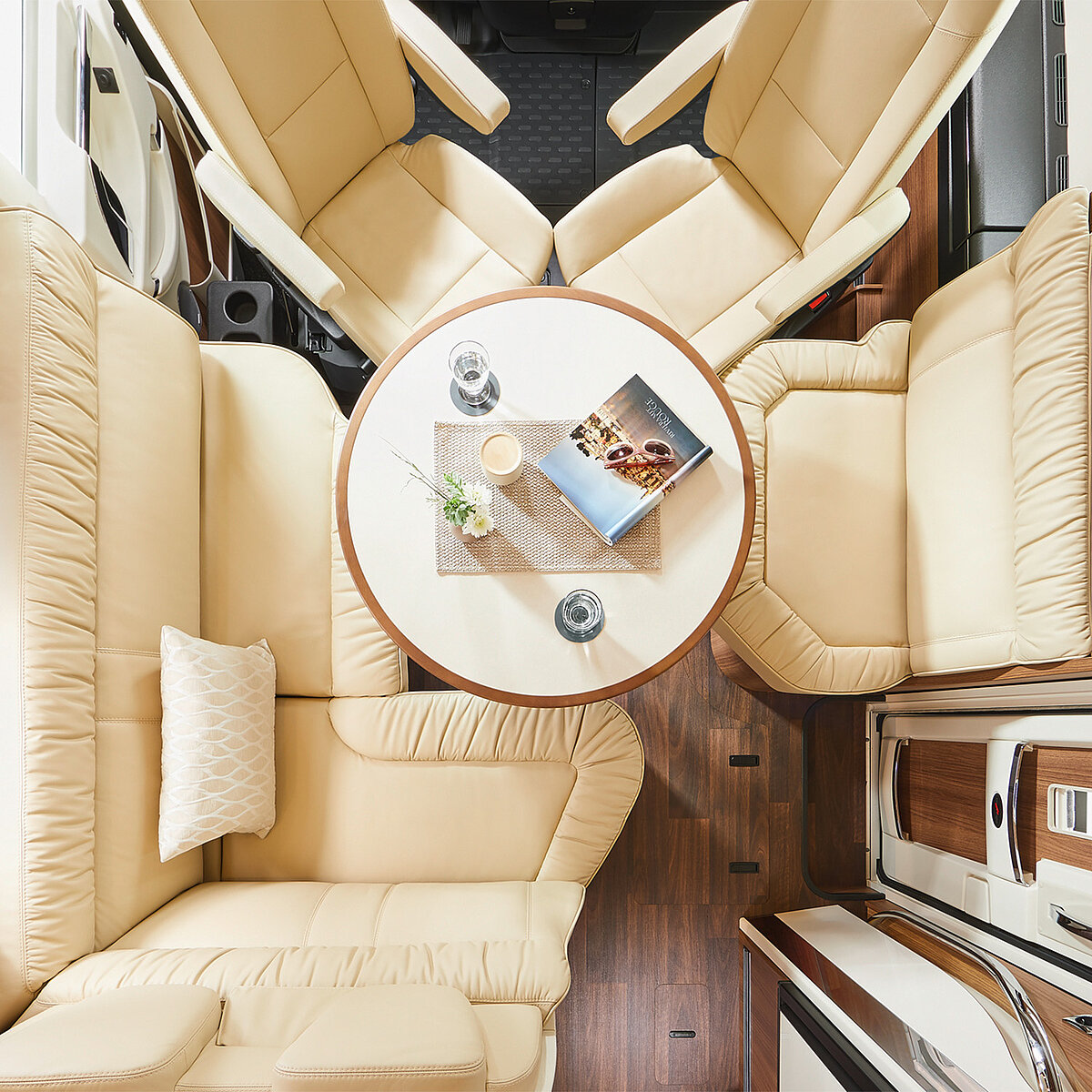

DISCOVER THE LIVING AREA HIGHLIGHTS.
DISCOVER THE KITCHEN HIGHLIGHTS.
Models I 50 LE, I 50 LE DA, I 51 QB, I 51 QB DA
- Elegantly curved worktop, extended into the round bathroom wall at the side
- Slide-out storage cabinet integrated in round bathroom wall
- Pull-out kitchen work surface as worktop extension with easily accessible storage space, bottle holder and two waste bins
- Kitchen work surface with vertical waveform for visual separation of the living area
- Designer bar cupboard with glass set and interior lighting

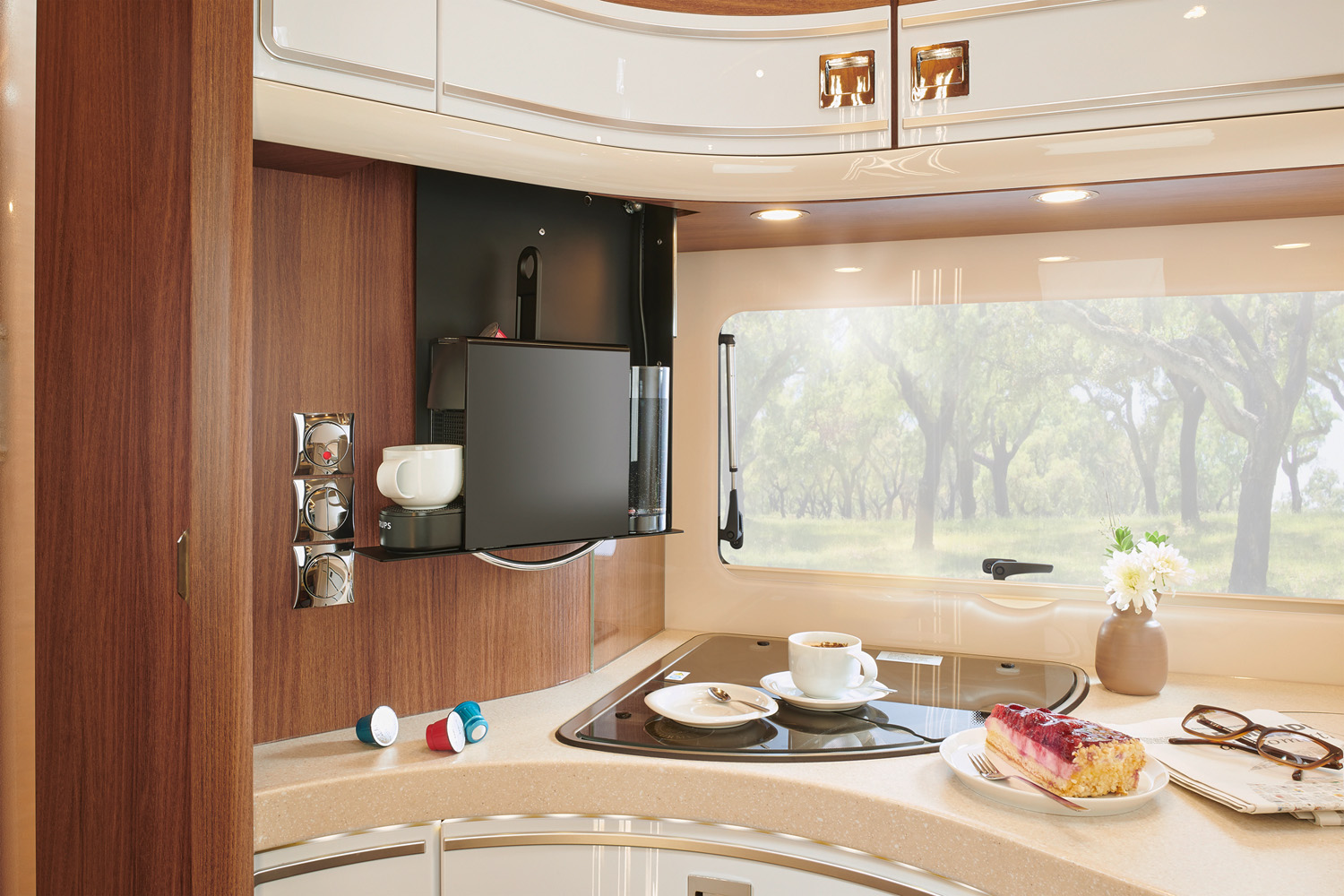

- Coffee machine lift, can be pulled downwards out of overhead storage cabinet (optional)
- Sink cover can be used as additional worktop/chopping board

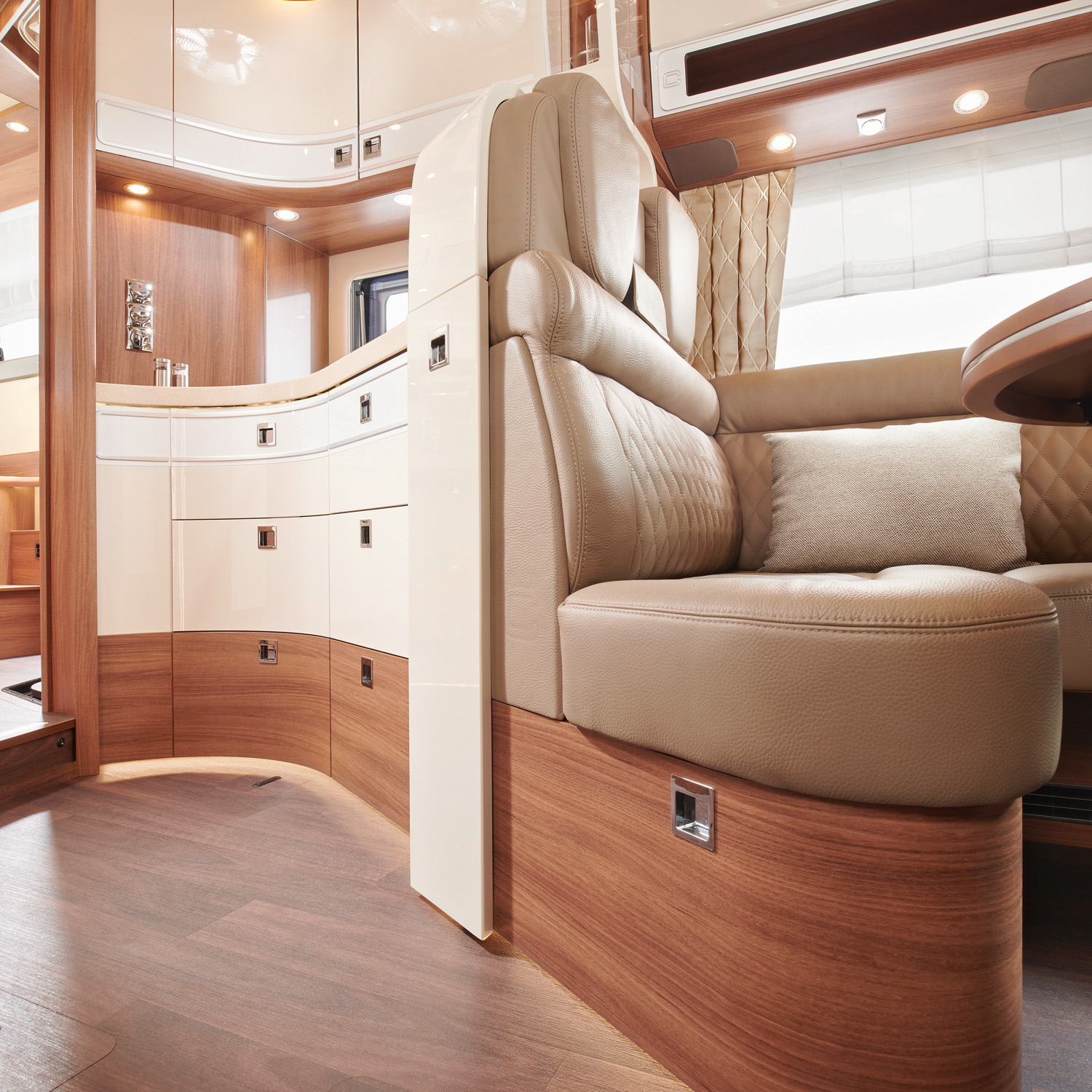

- Electric central locking for the entire kitchen area including pull-out work surface, bar cabinet and shoe cabinet; automatic locking while driving
- “Profi Gourmet” 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base

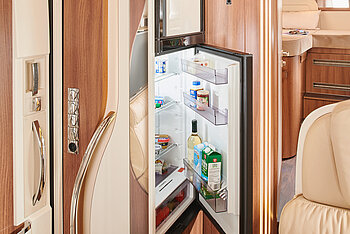

- 153 l fridge with door that opens at both sides and separate freezer compartment
- Designer mixer tap in metal with pull-out spray head
Models I 61 XL LE, I 64 XL QB
- Elegantly curved worktop, extended into the round bathroom wall at the side
- Floor-to-ceiling slide out storage cabinet integrated in the round bathroom wall
- Pull-out kitchen work surface as worktop extension with easily accessible storage space, bottle holder and two waste bins
- Kitchen work surface with vertical waveform for visual separation of the living area
- Designer bar cupboard with glass set and interior lighting
- Coffee machine lift, can be pulled downwards out of overhead storage cabinet (optional)
- Sink cover can be used as additional worktop/chopping board
- Electric central locking for the entire kitchen area including pull-out work surface, bar cabinet and shoe cabinet; automatic locking while driving
- “Profi Gourmet” 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base
- 153 l fridge with door that opens at both sides and separate freezer compartment
- Designer mixer tap in metal with pull-out spray head
DISCOVER THE BATHROOM & CHANGING ROOM HIGHLIGHTS.
I 50 LE
I 51 QB

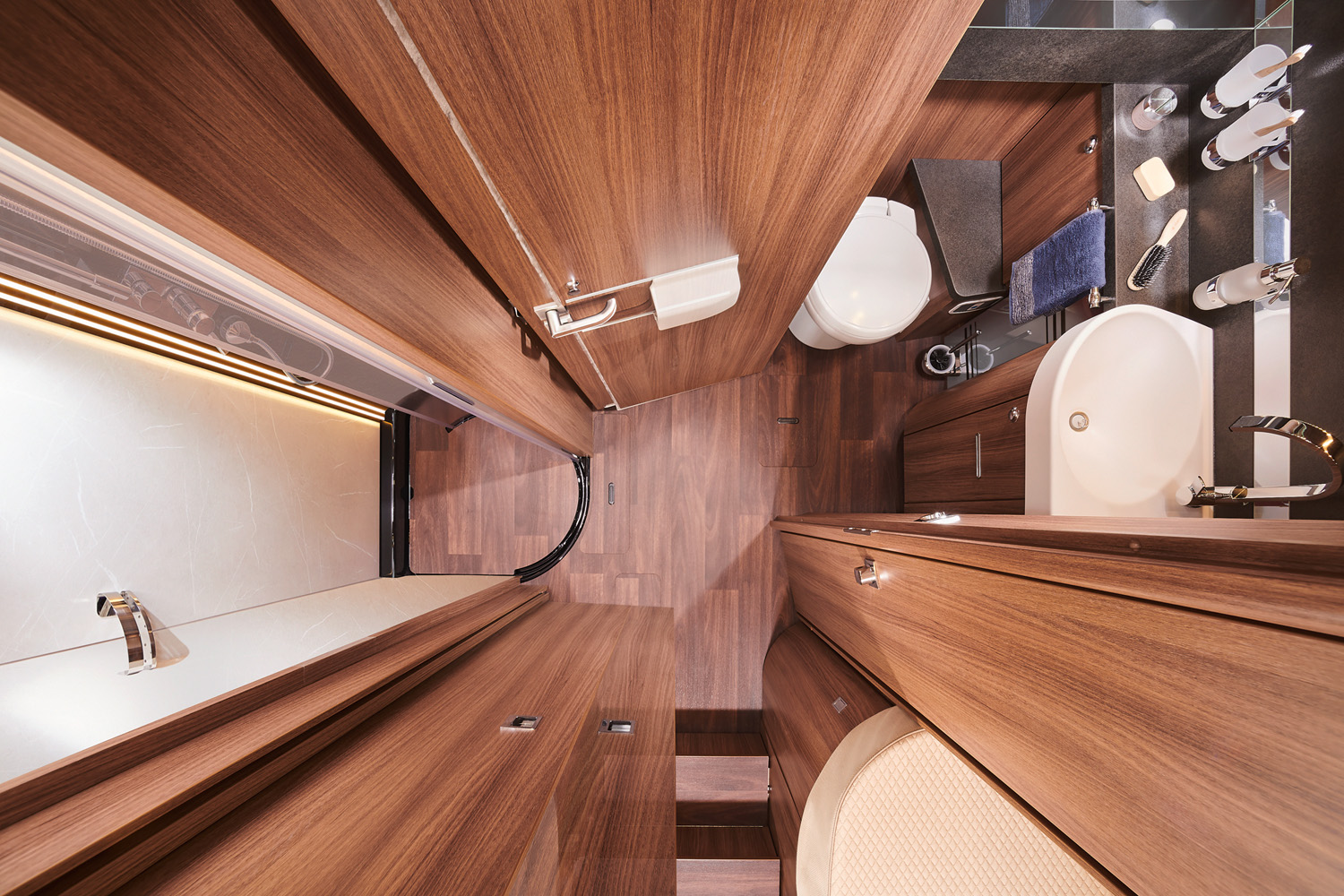

Models I 50 LE, I 50 LE DA, I 51 QB, I 51 QB DA
- Solid luxury bathroom door with interior hinges, metal handle and door lock
- Single level bathroom floor
- Large bathroom/toilet
- Large mirror cabinet with shelving
- Wash stand base unit with plenty of storage space and numerous shelves
- Spa rain shower with roof dome above including blackout blind, headroom beneath rain shower 198 cm
- Shower room design with dark granite look, indirectly illuminated corner pillar and shower walls with marble design, including clothes hooks
- Waterproof shower inlay, removable for cleaning
- Floor-to-ceiling wardrobe (I 50 LE)
- Room partitioning and a changing room that is separable from the living/sleeping area are created in just a few steps
I 61 XL LE
I 64 XL QB
Models I 61 XL LE, I 64 XL QB

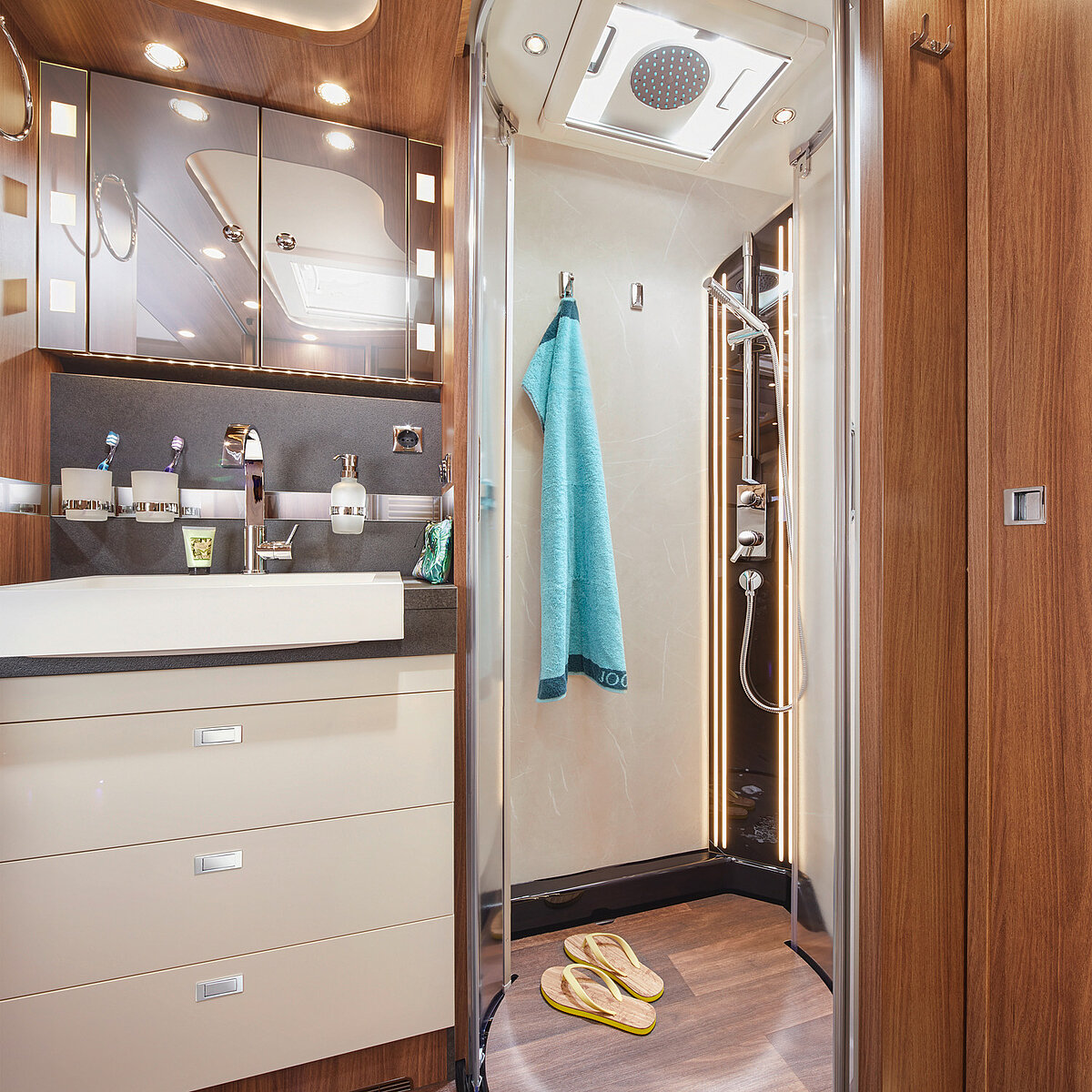

- XL bathroom with separate toilet, open washing area and spacious round shower
- Spacious mirror and wash stand base unit
- Separate toilet with towel warmer, legroom extension, side window and Mini-Heki skylight
- XL round shower with waterproof shower insert in same design as living area floor (removable for cleaning)
- Shower room design with dark granite look, indirectly illuminated corner pillar and shower walls with marble design, including clothes hooks
- Floor-to-ceiling wardrobe
- Wooden sliding door including full length mirror
- Additional warm water underfloor heating: additional heating coils in bathroom double floor area
- Room partitioning and a changing room that is separable from the living/sleeping area are created in just a few steps
DISCOVER THE SLEEPING AREA HIGHLIGHTS.
Models I 50 LE, I 50 LE DA, I 61 XL LE
- Carawinx sleeping system – medically recommended, point-elastic under springing system

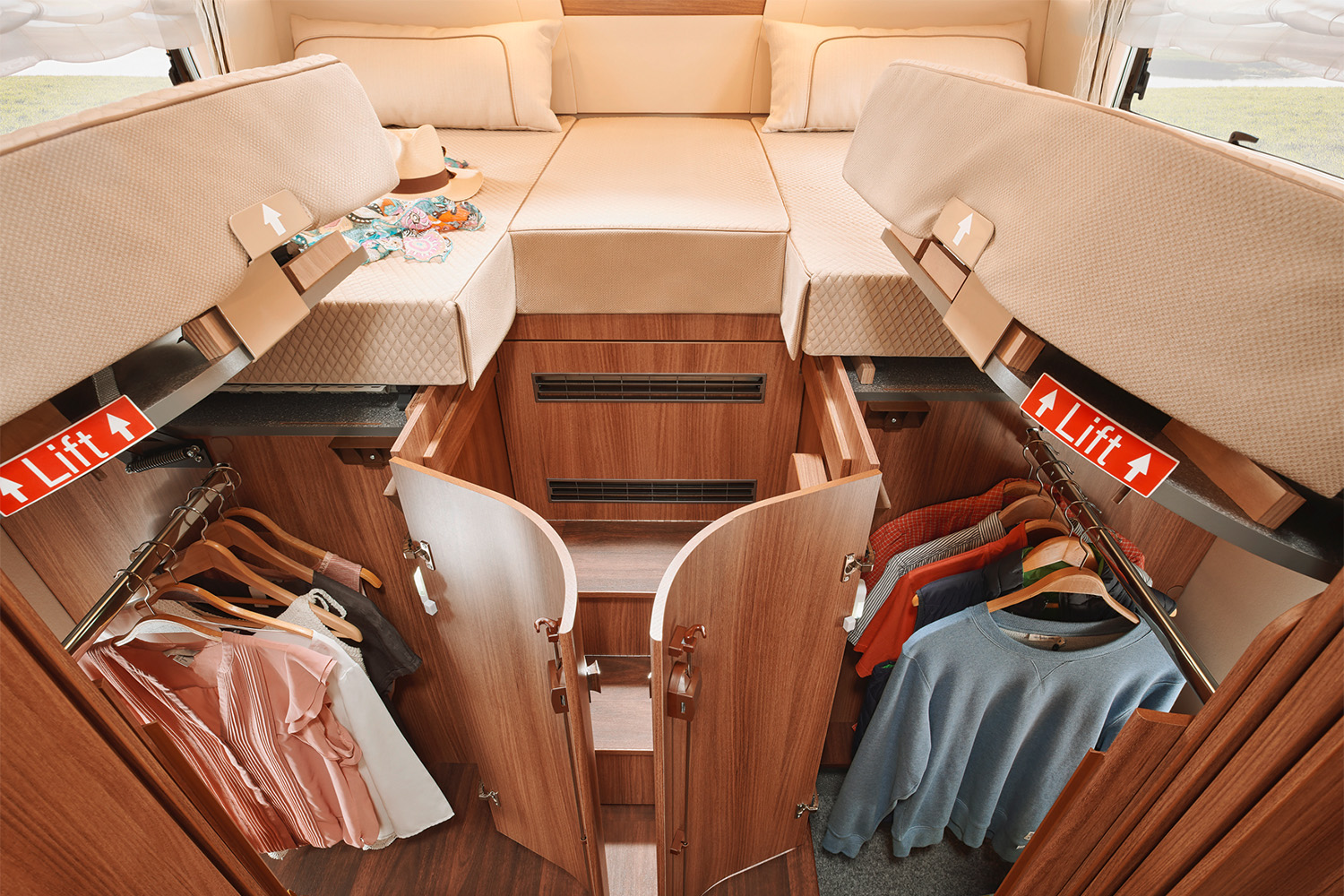

- Wardrobes beneath the lengthways single beds, easily accessible from the front and above thanks to the lift function – outstanding interior height due to lowering into the double floor
- Floor-to-ceiling wardrobe
- Rear wall design with leather-coated panel and large mirror
- Sleeping area headliner integrated in the furniture design, high-gloss ivory version with indirect ambient lighting and four LED spotlights

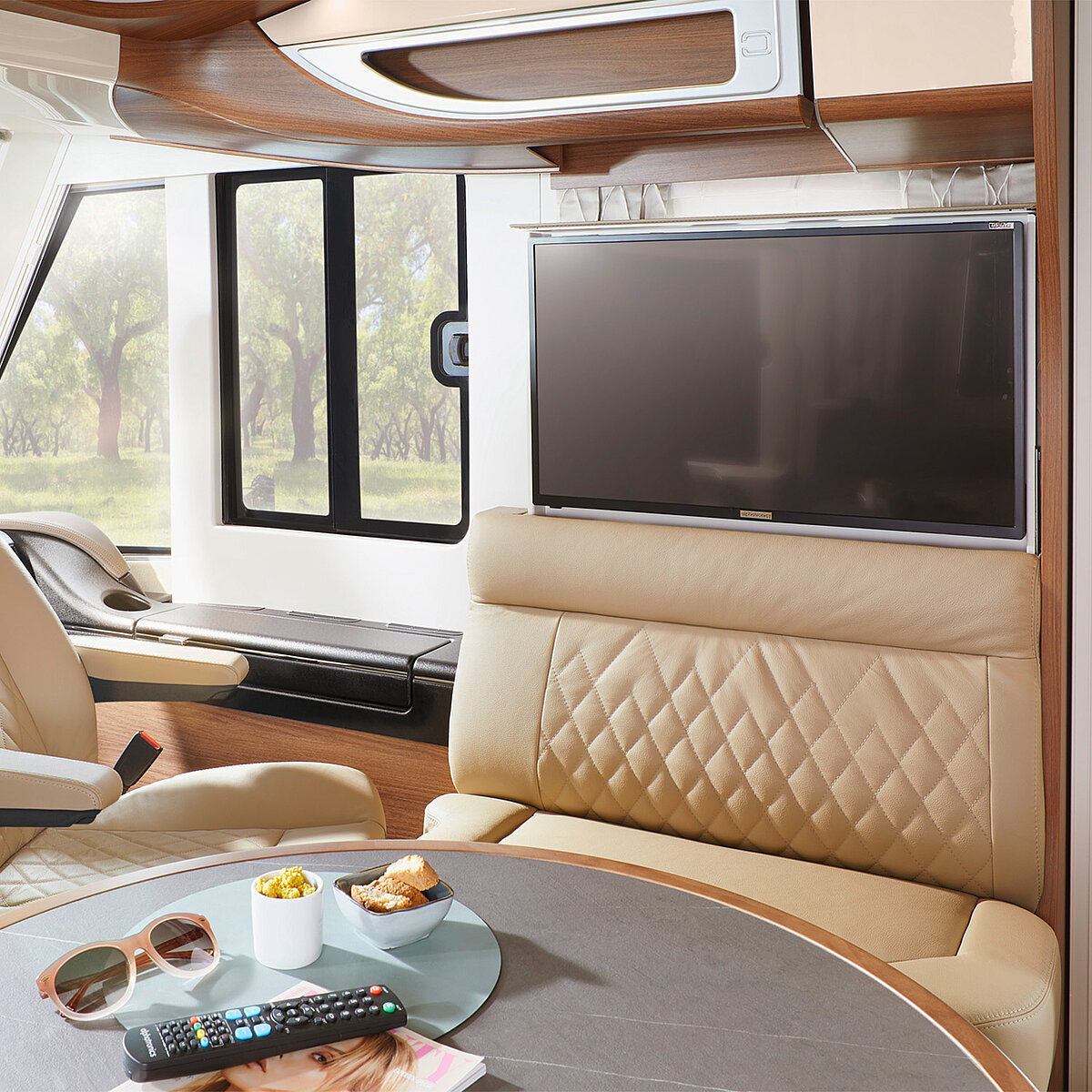

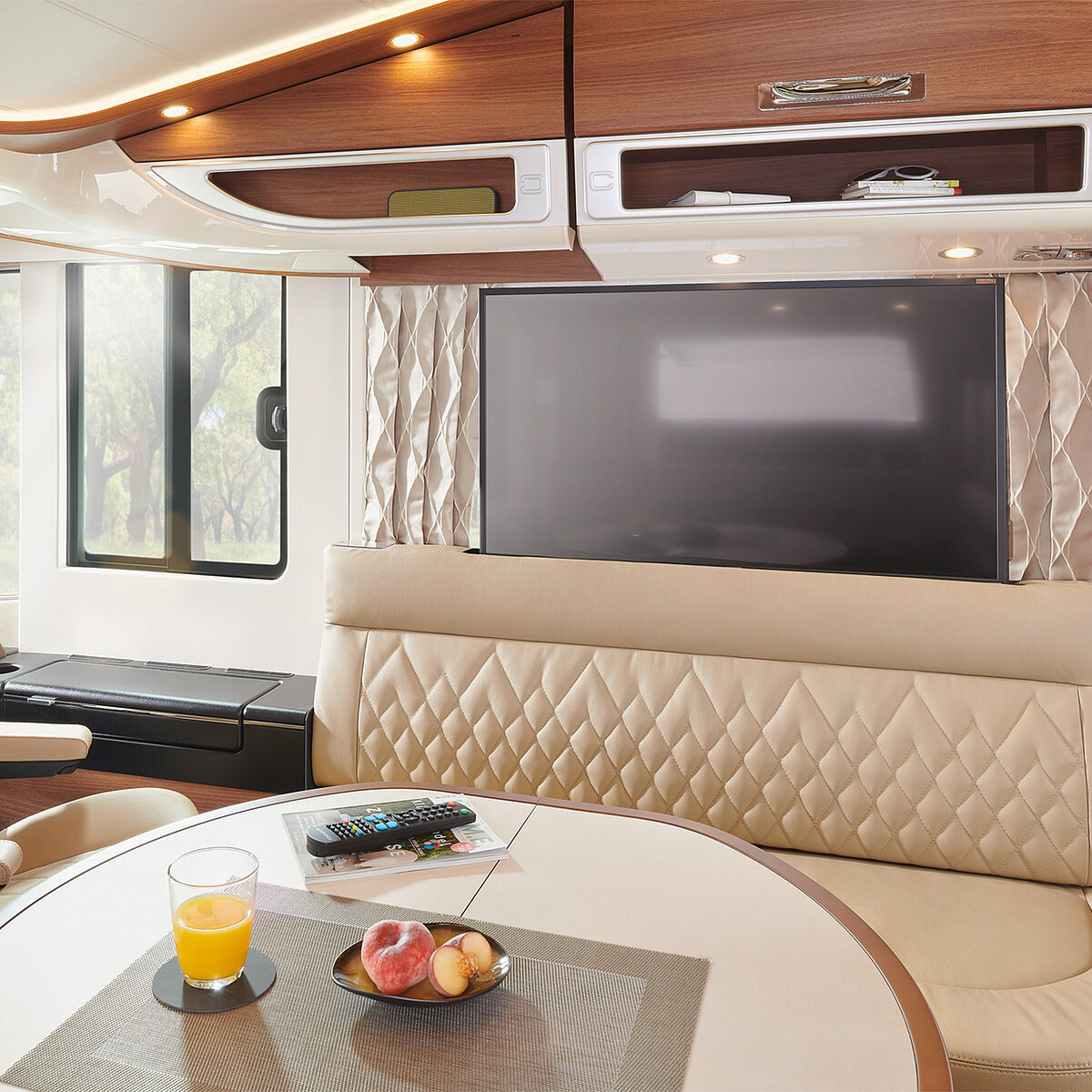

- Standard TV cabinet, extra long TV pull-out system (optional)
- High quality 7-zone quality cold foam mattress with breathable climate quilting
Models I 51 QB, I 51 QB DA, I 64 XL QB
- Carawinx sleeping system – medically recommended, point-elastic under springing system
- Two wardrobes at either side of the queen-size bed
- Two large drawers at the front of the queen-size bed
- Floor-to-ceiling wardrobe (I 64 XL QB)
- Unique: pull-out TV wall and room divider for partitioning off the bathroom area with TV holder, TV enjoyment in two positions possible (I 64 XL QB: Bathroom separable via solid wood sliding doors)
- Rear wall design with leather-coated panel and large mirror
- Sleeping area headliner integrated in the furniture design, high-gloss ivory version with indirect ambient lighting and four LED spotlights
- High quality 7-zone quality cold foam mattress with breathable climate quilting
chic e-line technology & standard equipment.
THE SELF-SUFFICIENCY
CHAMPION

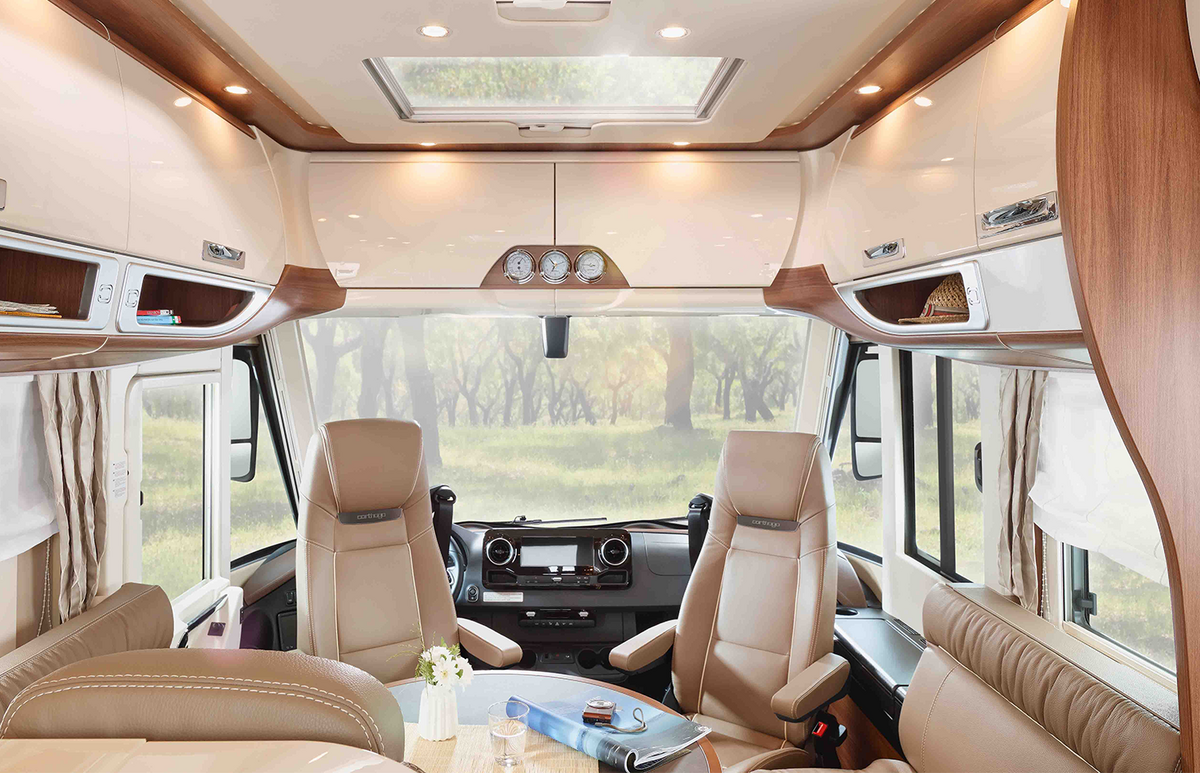

DRIVER’S CABIN DESIGN

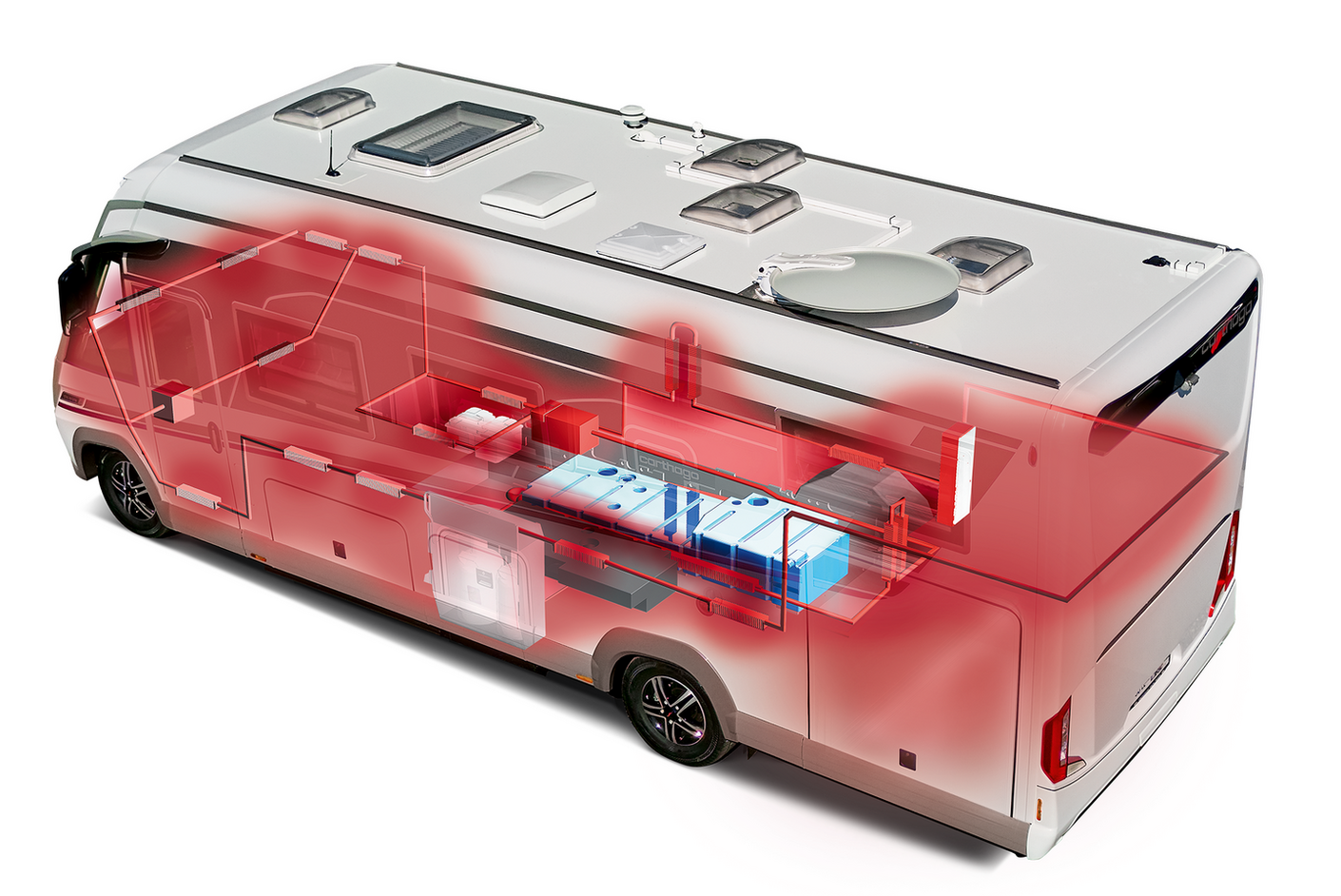

ON-BOARD TECHNOLOGY
Electrical equipment, water supply, warm air storage heating technology

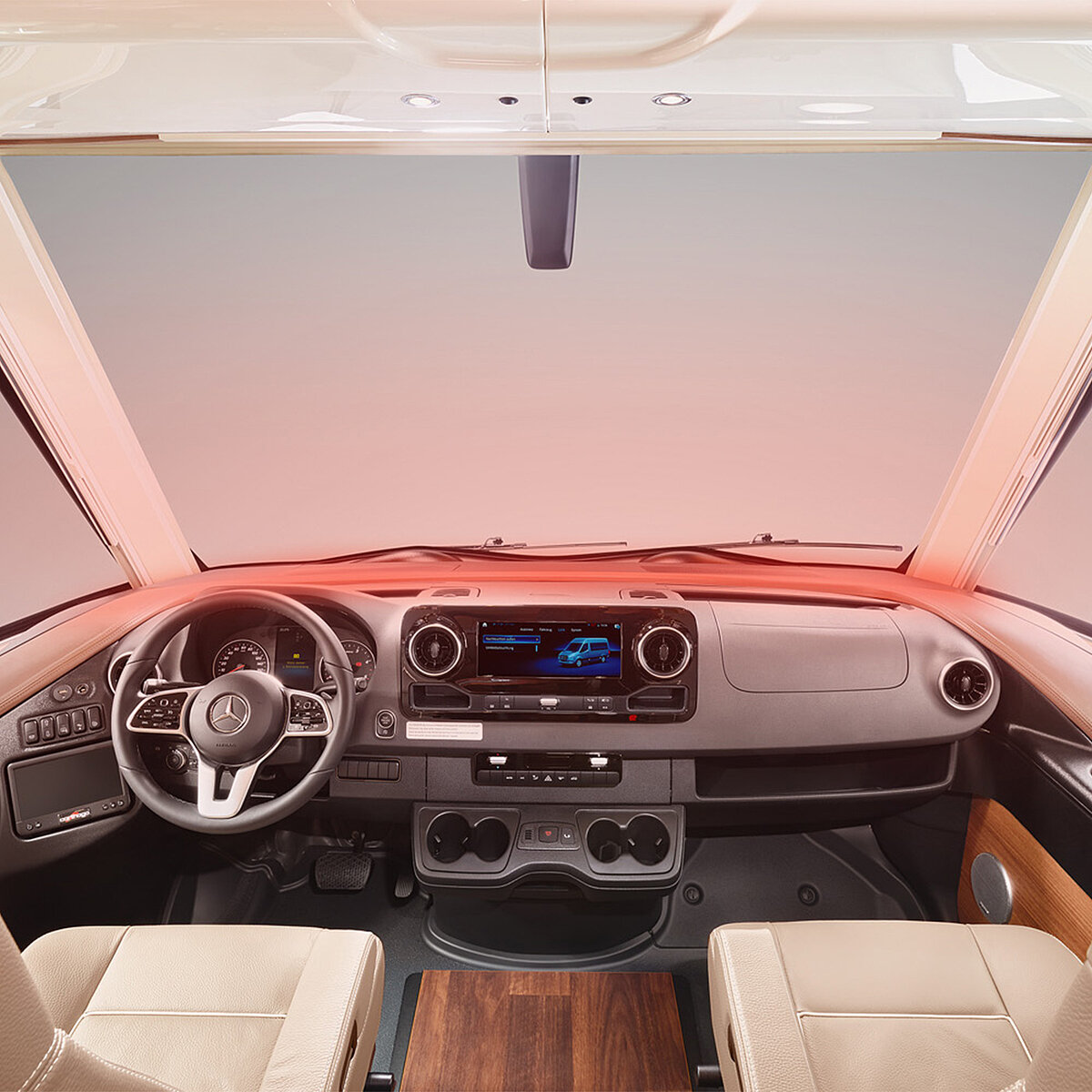

Additional heat radiation in driver’s cabin area
by means of heat convectors, therefore less cold radiation into the driver’s cabin / living area from the windscreen
Aluminium wall heating effect
On the insides of the wall: Heat storage and wall heating at the same time with 1000-times better heat conduction than conventional wooden interior walls
“Easy change” gas bottle compartment
extra-low, one-handed hatch operation, convenient replacement of individually accessible gas bottles
Central water drain
and water tanks in the frost-protected double floor; can also be operated from the outside through the XL habitation door
Electrical centre
easily accessible in scooter garage
Battery centre (single axle vehicle)
150 Ah lithium-ion battery in double floor storage compartment, accessible via double floor storage compartment on passenger’s side, main power switch, optional: 2nd and 3rd lithium-ion battery incl. battery computer, total 450 Ah, two extra 18 A chargers, total 72 A
ALDE warm water central heating
with numerous convectors throughout the climate storage double floor, the living area, in the scooter garage, the driver’s cabin and in the cold-sensitive door entrances. Heat booster beneath the driver’s seat
Optional: electric power package unlimited
Including: 3x 100 Ah lithium-ion-batteries (Mastervolt) including battery computer for a total of 300 Ah, digital control panel to access energy management information, "Mastervolt CombiMaster" inverter/charger
Battery centre (double axle vehicle)
150 Ah lithium-ion battery in double floor storage compartment, accessible via double floor storage compartment on passenger’s side, main power switch, optional: 2nd and 3rd lithium-ion battery incl. battery computer, total 450 Ah, two extra 18 A chargers, total 72 A
ELECTRIC POWER PACKAGE UNLIMITED
The electric power package unlimited allows you to enjoy greater flexibility, comfort and independence on your adventures. Thanks to cutting-edge technology, key appliances, such as the air conditioning systems and refrigerators as well as the lighting, can continue to operate reliably, even without an external power supply. The combination of efficient energy management, powerful battery systems and intelligent control solutions significantly increases self-sufficiency, while reducing your dependence on campsites or hook-up points.
A self-sufficiency package gives you a great deal of freedom, especially when travelling off the beaten track or on longer trips without access to the required infrastructure.
This package makes travelling a more comfortable experience, as power outages and restrictions due to limited capacity are a thing of the past. It is an absolute must-have for anyone who values independence and sustainability on their travels.
Your benefits
STANDARD EQUIPMENT
