Carthago C1-tourer T | low-profile motorhome
Discover the Carthago C1-tourer low-profile motorhome from 3.5 t – 4.5 t.
SPORTY, DISTINCTIVE AND COSY.
THE SOPHISTICATED ALL-ROUNDER
The possibilities that you have of configuring your new motorhome exactly in accordance with your individual requirements with this model range are just as diverse as the destinations to which you can travel in a low-profile C1-tourer. You can fulfil your dreams with different layouts , two basic vehicles and the choice of different worlds of style and numerous worlds of living in the interior of this low-profile motorhome.
You can also choose between two weight and equipment variants for your C1-tourer T.
Impressively lightweight
Our lightweight 3.5 t models are the perfect choice for those who value a lightweight vehicle that meets the requirements of the 3.5 t class and can be driven with a B Class EU driving licence.
Models:
T 143 KB-LE, T 145 RB-LE
Comfort without limits
Our comfort 4.2 t models are the perfect choice for those who are not dependent on the 3.5 t weight class and want to experience premium comfort. The huge payload reserves and maximum interior comfort of these models leave nothing to be desired.
All models
To make it as easy as possible for you to choose the right model, we’ve listed the equipment differences between the lightweight 3.5 t and comfort 4.2 t models for you.
C1-tourer T layouts & 360° experiences.
DISCOVER THE PERFECT LAYOUT
FOR YOU.
You are guaranteed to find the right layout, including all of the associated technical data, using our practical filter function. Or you can immerse yourself in our new, interactive 360° tours and discover your dream luxury motorhome with all of its special features.
lightweight 3.5 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
lightweight 3.5 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
comfort 4.2 t / Fiat Ducato
lightweight 3.5 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
lightweight 3.5 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter
comfort 4.2 t / Mercedes-Benz Sprinter

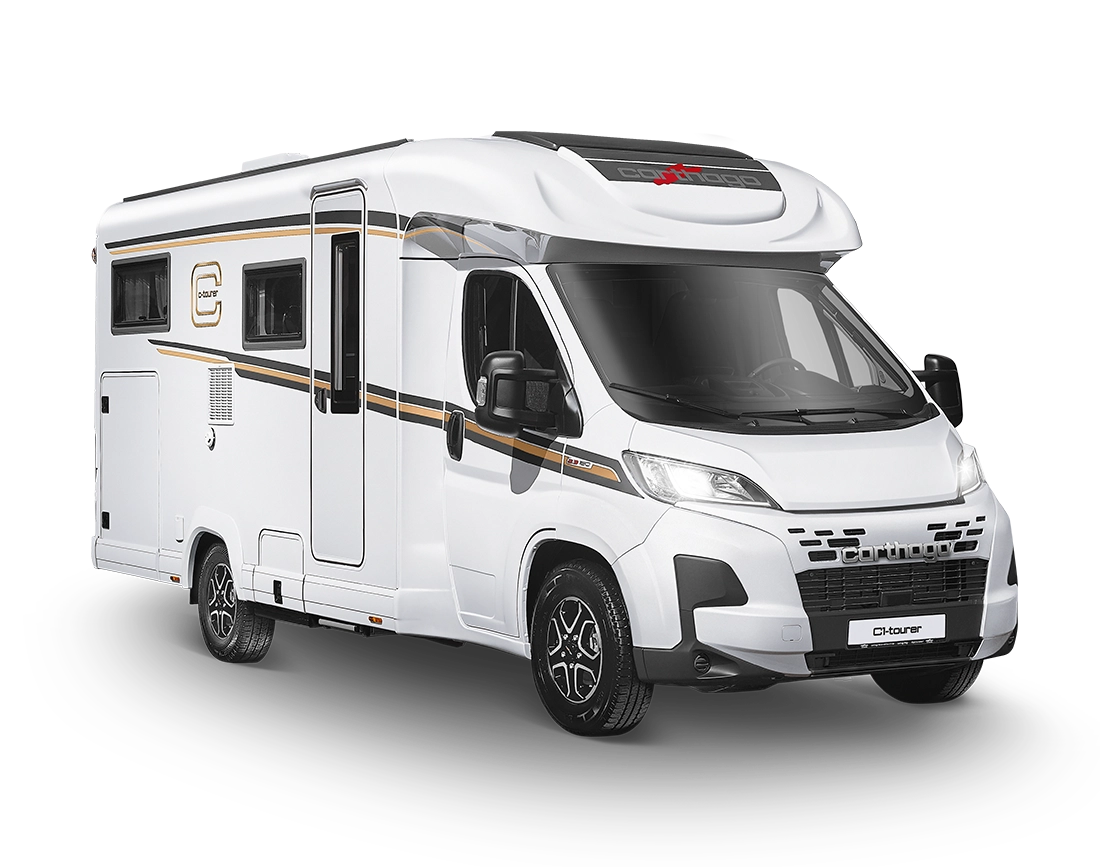

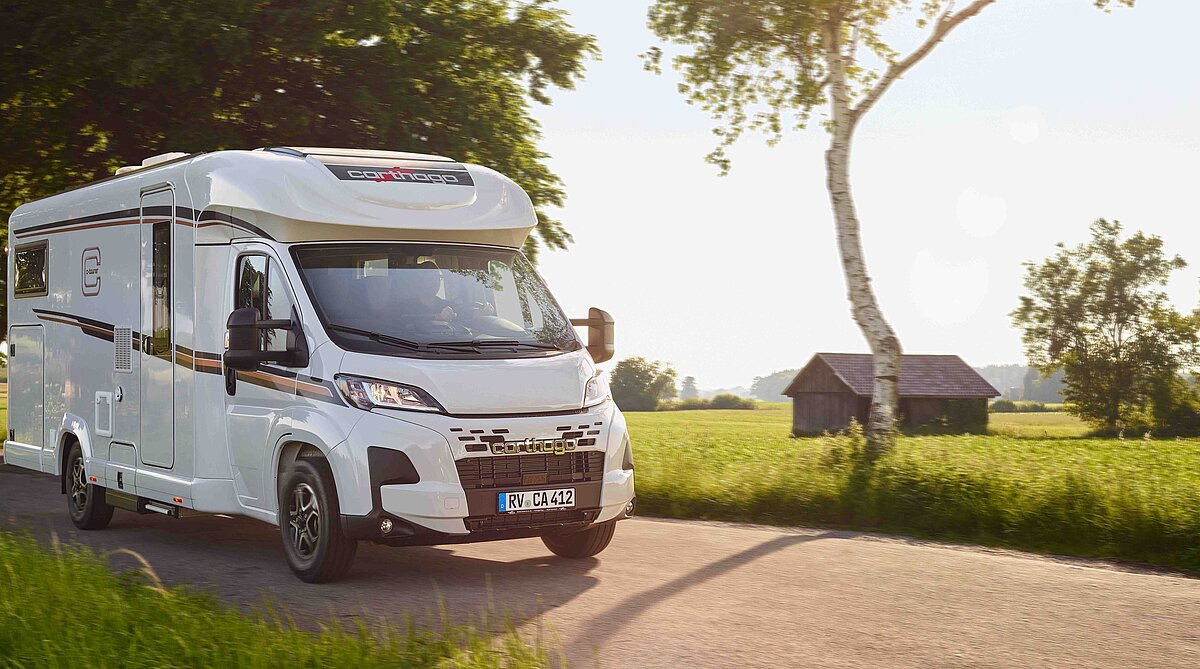

C1-tourer T exterior.
POWERFUL PRESENCE
- FIAT DUCATO
- MERCEDES-BENZ SPRINTER
- T 145 RB-LE | T 149 RB-LE
Fiat Ducato with AL-KO low frame Carthago special (comfort 4.2 t models) or special light (lightweight 3.5 t models), 8-speed torque converter automatic transmission as standard and 198 cm wide wheelbase rear axle.
Standard safety package: airbag, cross wind assistant, cruise control, ABS, ESP, ASR, electronic immobiliser, Hillholder, Hill Descent Control, traction plus, trailer stability control, collision braking system.
Mercedes-Benz Sprinter chassis with AL-KO low frame Carthago special (comfort 4.2 t models) or special light (lightweight 3.5 t models) and 198 cm wide wheelbase rear axle.
Standard safety package: cross wind assistant, Hillholder, ABS, ASR, EBV, ESP, active braking assistant and active alertness assistant.
Other modern driver assistance systems optionally available.
- An additional highlight awaits you on the exterior of the low-profile C1-tourer T 145 RB-LE and T 149 RB-LE motorhome: The newly designed Dynamic Designer Rear with curved corner pillars and distinctive rear lights.
- The driver’s cabin is also optionally available in Obsidian black metallic for the low-profile C1-tourer T 145 RB-LE on the Mercedes-Benz Sprinter
ROOF-TO-WALL CONNECTION
The typical Carthago curved roof is not only an unmistakeable design element, but with the frame members on the inside, it makes a decisive contribution to the rigidity of the main cabin. And all of this without any thermal bridges whatsoever. Another safety plus: reduced sensitivity to side wind.
ROOF STRUCTURE
The GRP exterior provides protection from hail, and the aluminium on the inside gives you protection from lightning strikes at the same time. The aluminium interior also takes over the function of heat storage in the winter.
THE FLOOR PANEL
Provides all-round protection. The lower and upper sides are made from GRP, and between them there is a hard foam insulating core made from RTM Styrofoam. The high-stability floor has lifelong protection against humidity and rotting.
THE FLOOR/WALL CONNECTION
Provided at both sides via a high-stability frame member. Similarly to aircraft construction, it is form-fitted and bonded along the entire length. And if the worst comes to the worst, it has the effect of side collision protection. An integrated thermal bridge stop reliably prevents any thermal bridges.
EASE OF REPAIR
Wherever possible, attention is paid to segmentation during the development of the main body components. In event of damage, this makes replacement easier and saves money. For example, there is a separately replaceable rear bumper at the rear of every vehicle.
XL HABITATION DOOR “PREMIUM TWO 2.0“
with widened passage size of 63 cm, secure double locking and extra-wide door window.
SIDE WALL STRUCTURE
Having aluminium not just on the exterior but also on the interior of the walls is a prerequisite for efficient heat storage. This produces the typical Carthago well-being climate. The homogeneous heat radiation acts like a wall heater.
SCOOTER GARAGE LOWERING
Deep lowering of the scooter garage means maximum storage space and minimum effort when loading. An extremely strong wall to floor connection due to form-fitted and bonded frame members provides a load-bearing capacity of 350 kg.
C1-tourer T highlight.
DOUBLE FLOOR
WITH LARGE STORAGE COMPARTMENT
You can never have enough storage space in a motorhome! This is why a considerable amount of value is placed on the amount of storage space during the development of our low-profile C1-tourer. However, we don’t just concentrate on the volume alone in our vehicles, but also ease of access during loading and unloading, and protection from frost.
- + Double floor with large heated storage compartment with usable height of up to 55.5 cm
- + Outside access via several large hatches
- + Convenient interior access via the seat bench cover of the L-shaped lounge seating area, swing-up side seat bench and large living area floor hatch
- + Large, central through-loading space (interior height up to 22 cm) with deeply lowered storage compartment (usable height 46 cm), also conveniently loadable through the XL habitation door via the large, self-supporting living area floor hatch
- + The entire double floor is heated with a climate storage function and underfloor heating effect
Scooter garage
Scooter garage with large interior height thanks to deep lowering, with access from both sides via two large scooter garage doors at the driver and passenger sides, loadable up to 350 kg.
Scooter garage
Scooter garage with large interior height thanks to deep lowering, with access from both sides via two large scooter garage doors at the driver and passenger sides, loadable up to 350 kg.
Additional double floor storage compartments
Living area floor hatch with double floor storage box (42 cm usable depth) in heated double floor
Loading from the outside
Convenient loading of the double floor storage compartment via a large external hatch
Unloading from the inside
Easy removal of the storage compartment contents from the inside via the lift-up seat bench cover of the L-shaped lounge seating area with patented fitting
Unloading from the inside
Large living area floor hatch in entrance area: easy to load from the outside when the XL habitation door is open
Unloading from the inside
Convenient removal of the contents via the swing-up side seat bench (depending on model)
Loading from the outside
Convenient loading of the double floor storage compartment via a large external hatch (depending on model)
Loading from the outside
Large, additional double floor storage compartment with separate exterior hatch
C1-tourer T interior.
THE WORLDS OF STYLE
C1-tourer T interior.
THE WORLDS OF LIVING
You have the choice between countless worlds of living for the low-profile C1-tourer. Our upholstery collections are not just good to look at, but they also have numerous practical advantages:
- Highly effective stain protection: Liquids do not penetrate into the fabrics, meaning that the majority of stains can be easily wiped off with a damp cloth.
- Excellent anti-fade properties
- Hard-wearing and easy to look after
- Washable curtains and decorative cushion covers
- Antibacterial mattress cover
C1-tourer T interior.

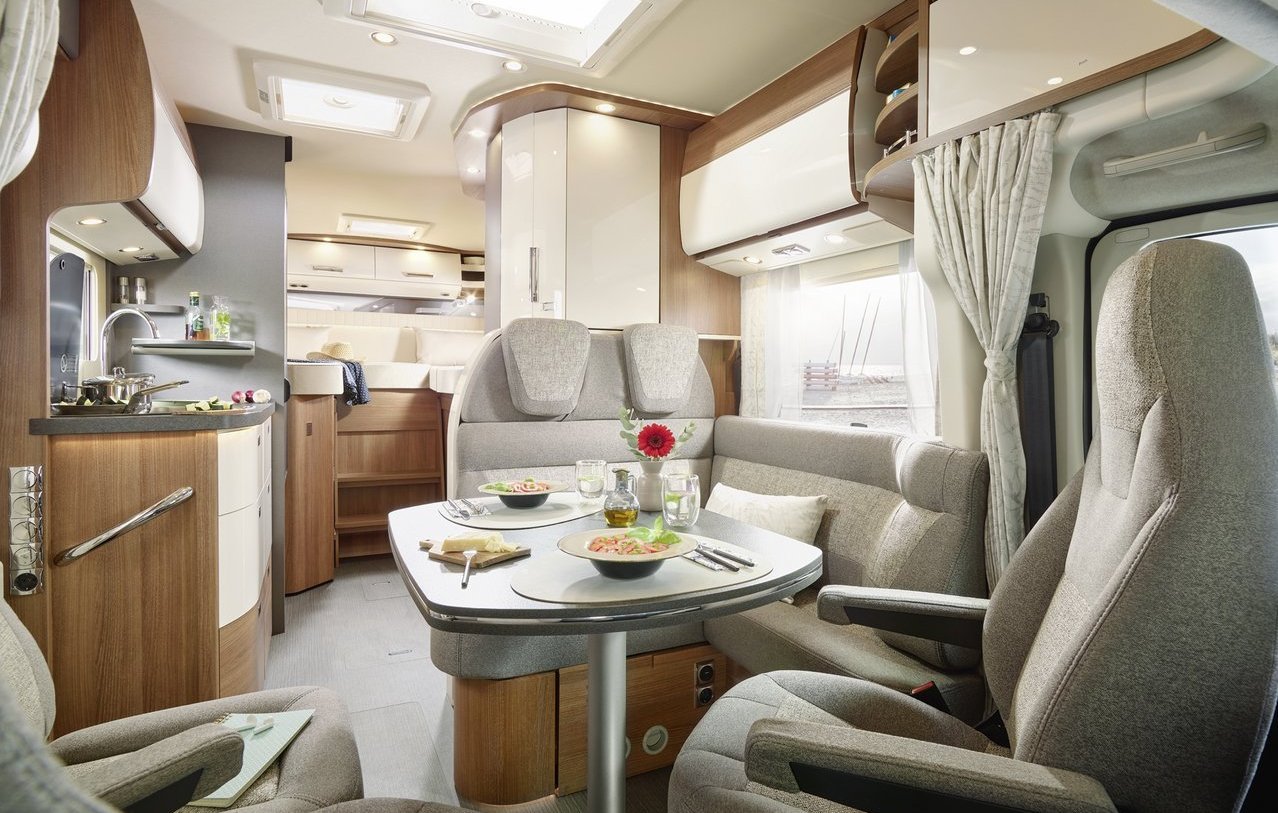

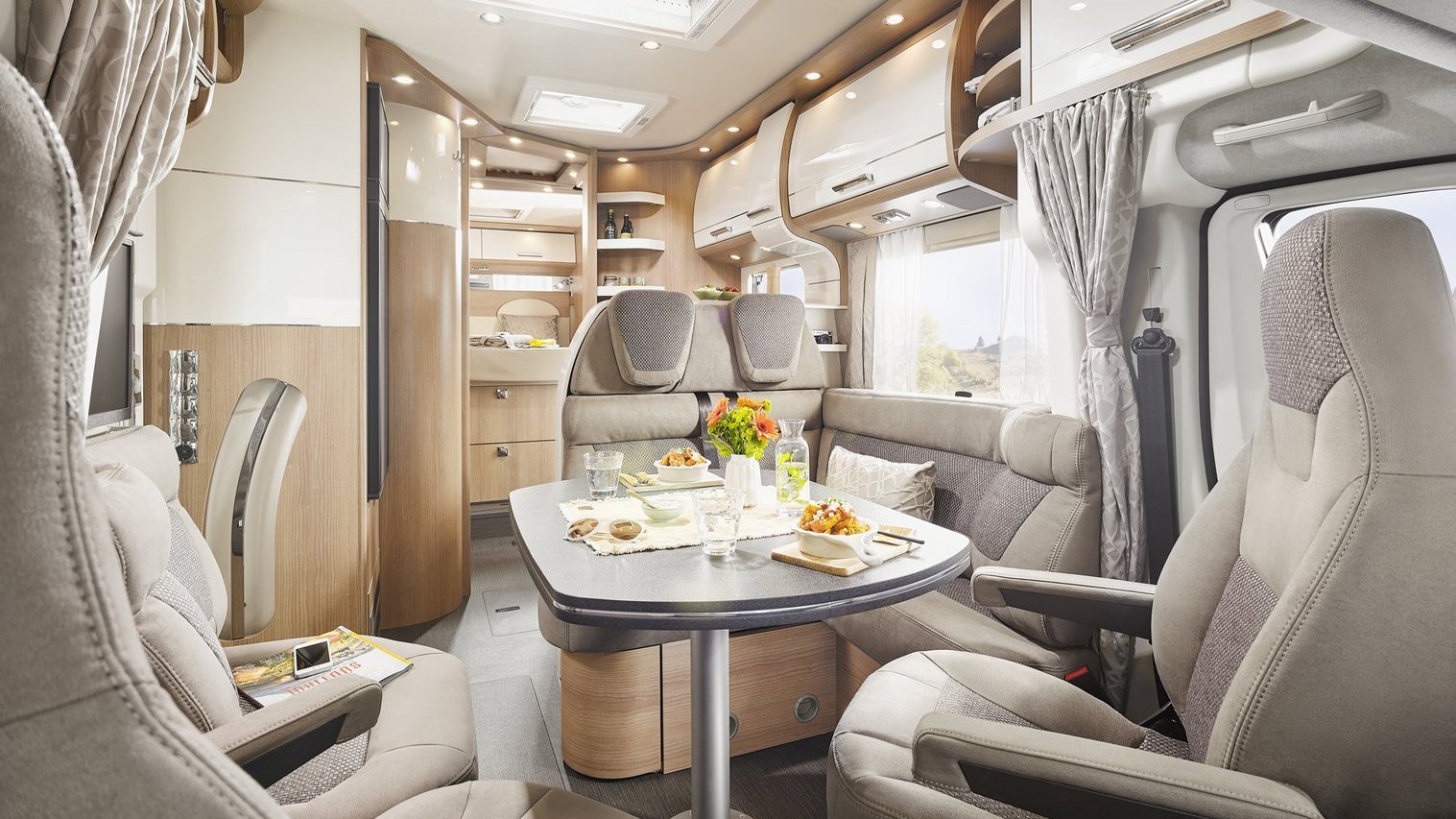

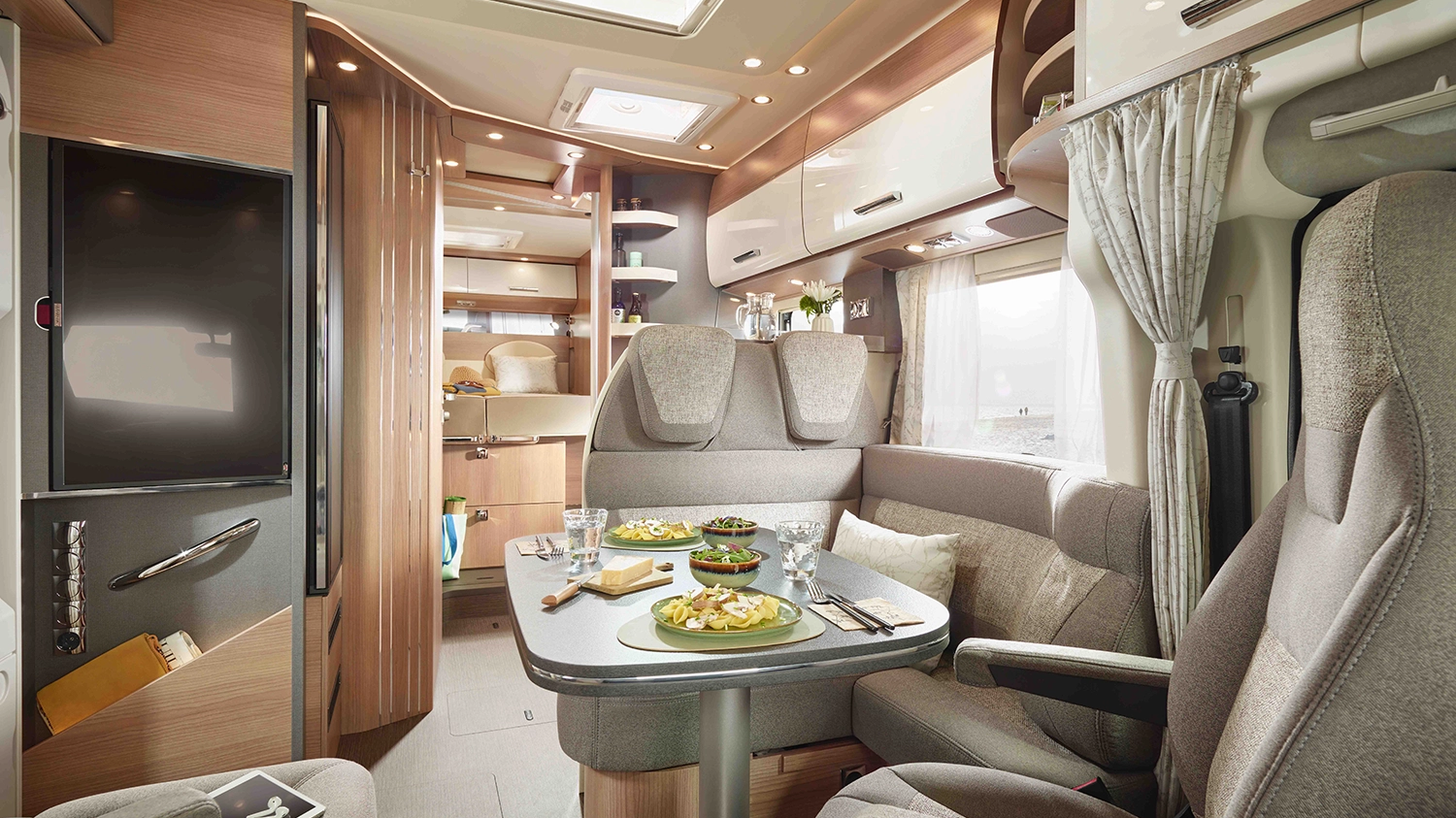

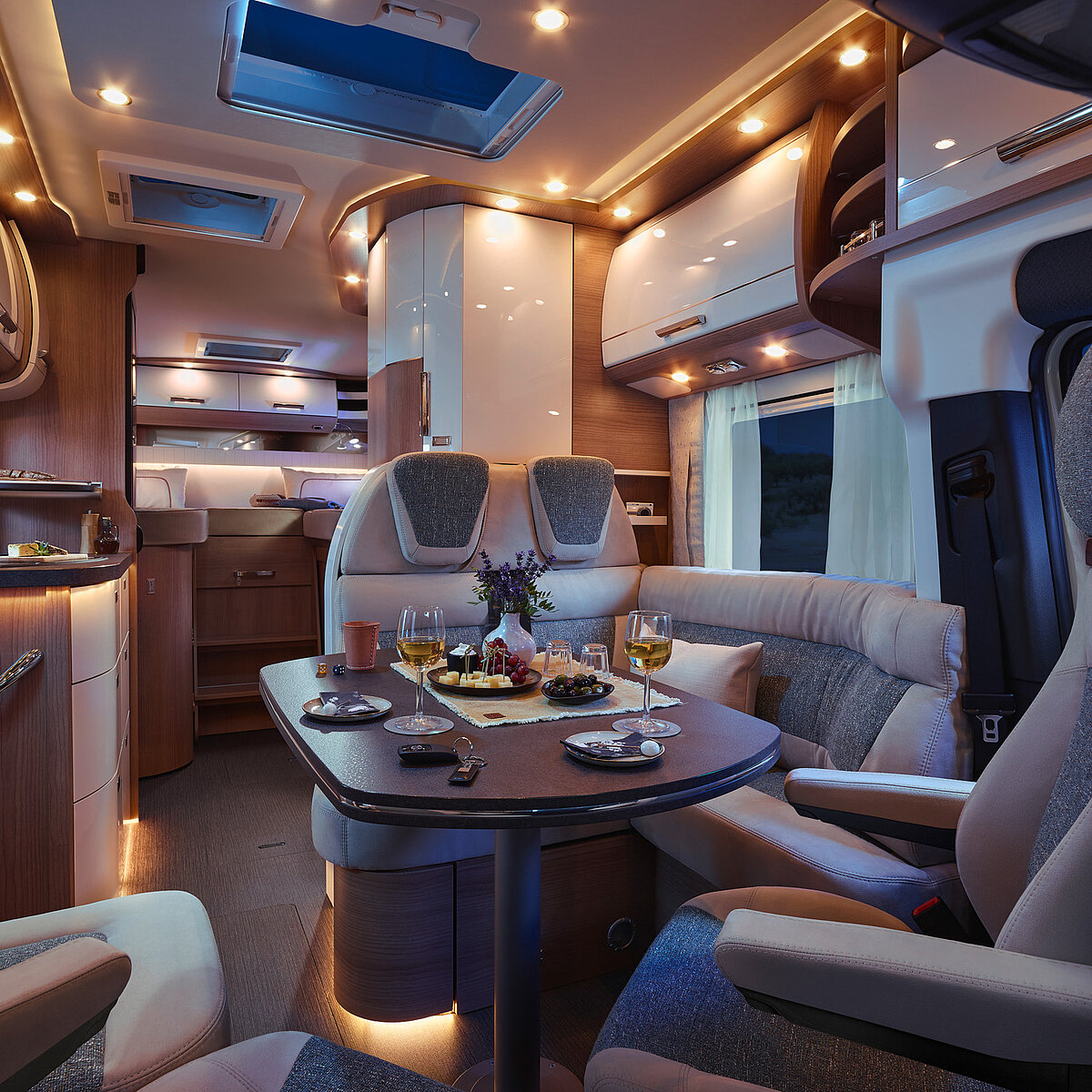

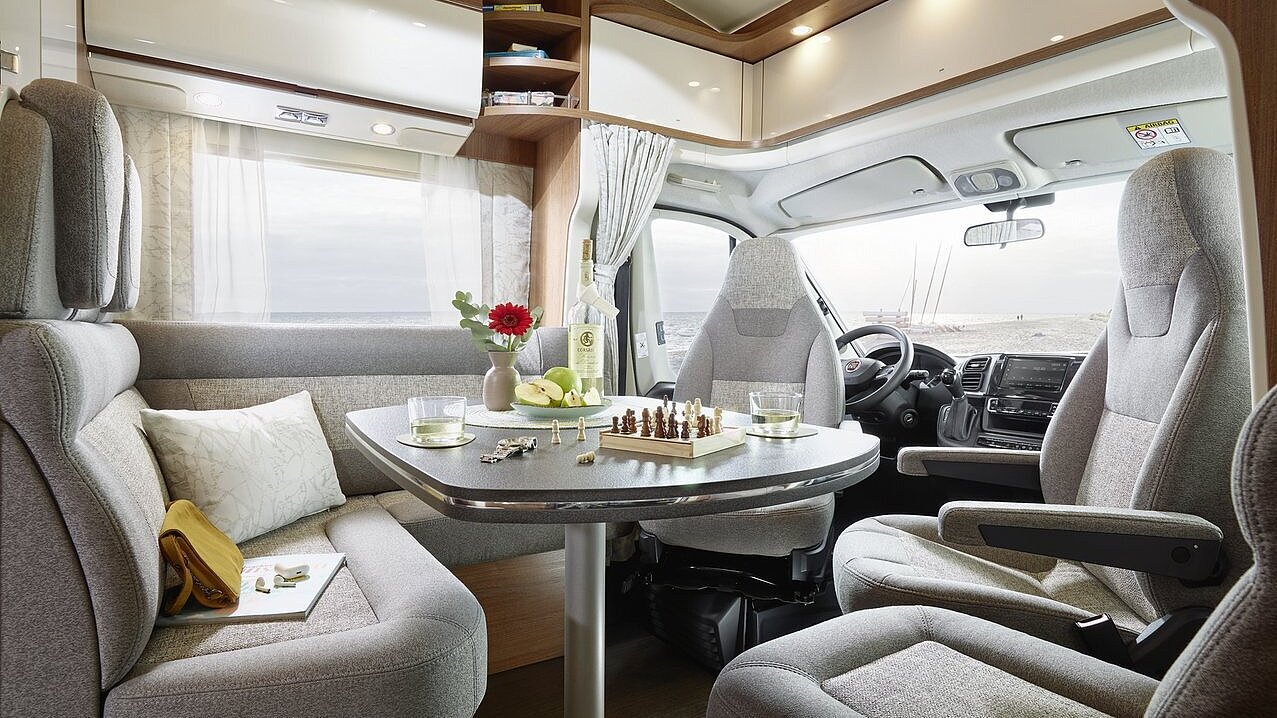

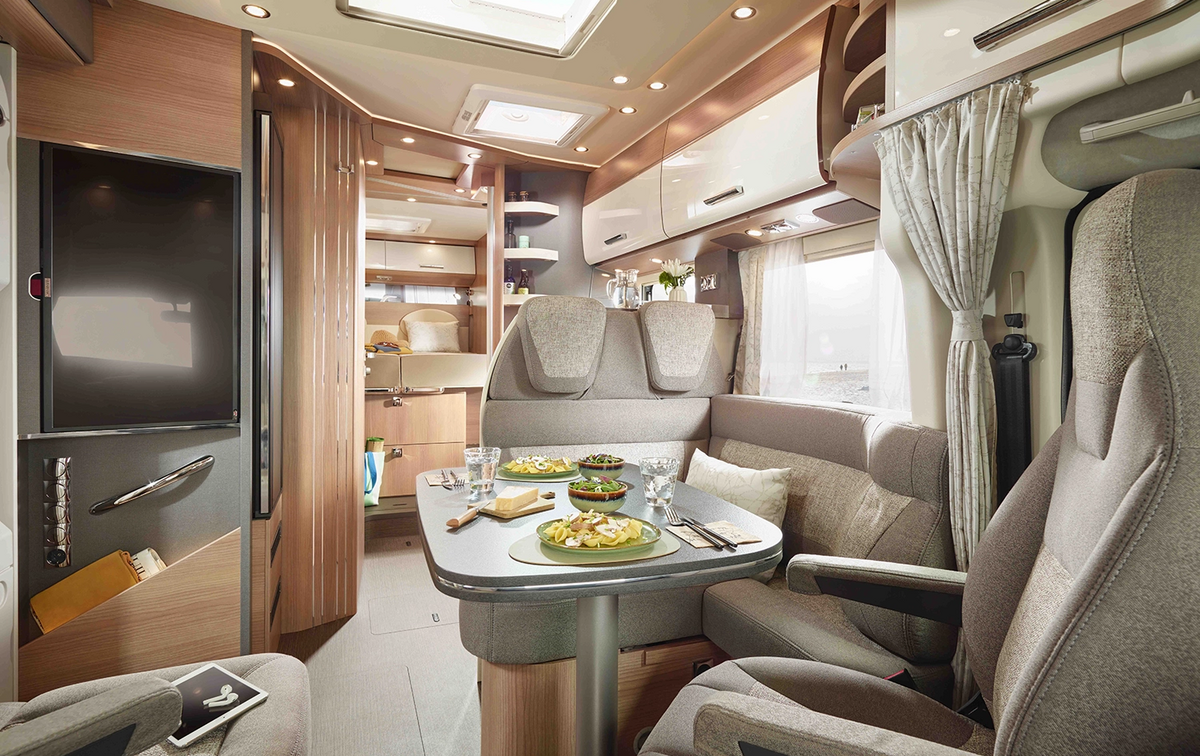

MAXIMUM LIVING COMFORT
Thanks to the high quality furniture design, the one level continuous floor in the living area, the L-shaped lounge seating area with ergonomically shaped upholstery
and the extra-large beds with sleeping area up to 200 cm long, the low-profile C1-tourer motorhome always provides the highest standard of living comfort.
DISCOVER THE LIVING AREA HIGHLIGHTS.
DISCOVER THE KITCHEN HIGHLIGHTS.
Model T 145 RB-LE
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Sink cover embedded flush in the surface, can be used as additional worktop/chopping board (depending on model)
- Raised kitchen worktop for visual room partitioning and as additional storage area
- 133 l fridge opposite with door opening at both sides and separate freezer compartment
- 3-ring hob with one-piece glass cover
- Spice rack on kitchen wall
- Indirect ambient lighting in floor plinth
- Integrated bottle cabinet
- Capsule coffee maker including pull-out system (optional)
Model T 148 KB-LE H
- Large work surface
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Designer overhead storage compartment with vertical waveform
- 153 l fridge with door that opens at both sides and separate freezer compartment
- Sink cover embedded flush in the surface, can be used as additional work surface/chopping board
- Raised kitchen worktop for visual room partitioning and as additional storage area
- Indirect ambient lighting in floor plinth
- 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base
- Capsule coffee maker with pull-out system in overhead storage cabinet with vertical waveform (optional)
Model T 148 KB-LE
- Large work surface
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Designer overhead storage compartment with vertical waveform
- 153 l fridge opposite with door opening at both sides and separate freezer compartment
- Spice rack on kitchen wall
- Sink cover embedded flush in the surface, can be used as additional work surface/chopping board
- Raised kitchen worktop for visual room partitioning and as additional storage area
- Indirect ambient lighting in floor plinth
- 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base
- Capsule coffee maker with pull-out system in overhead storage cabinet with vertical waveform (optional)
Models T 149 RB-LE, T 150 RB-QB
- Curved, extra large work surface, extended into the round bathroom wall
- Kitchen units with six large drawers and separate waste bin in separate hygiene area
- Designer overhead storage compartment with vertical waveform
- 153 l fridge opposite with door opening at both sides and separate freezer compartment
- Spice rack on kitchen wall
- Integrated bottle cabinet
- Sink cover embedded flush in the surface, can be used as additional work surface/chopping board
- Raised kitchen worktop for visual room partitioning and as additional storage area
- Indirect ambient lighting in floor plinth
- 3-ring hob with divided glass cover, robust cast-iron trivet and easy-clean glass base
- Capsule coffee maker with pull-out system in overhead storage cabinet with vertical waveform (optional)

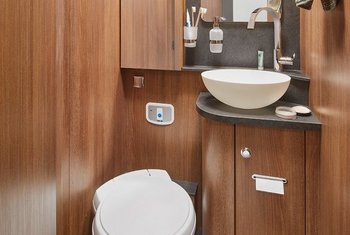

DISCOVER THE BATHROOM & CHANGING ROOM HIGHLIGHTS.
C1-tourer T 143 KB-LE
C1-tourer T 148 KB-LE
Models T 143 KB-LE, T 148 KB-LE, T 148 KB-LE H
- Practical comfort in a small space

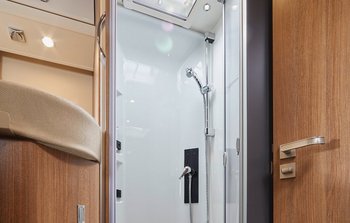

- Spacious round shower, completely separable via a sliding door
- Integrated shower shelf and towel rail in the Mini-Heki
- Large mirrored storage cabinet with shelving arrangement and spacious wash stand base unit underneath
- Mini-Heki skylight in bathroom
- Numerous shelves
- Solid bathroom door with interior hinges, metal handle and door lock
- Changing room T 143 KB-LE: Room partitioning and a changing room are created in a single step
- Changing room T 148 KB-LE: Room partitioning and a changing room that is completely separated from the living/sleeping area are created in three steps

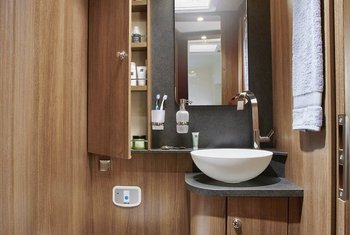

C1-tourer T 145 RB-LE
Model T 145 RB-LE
- “One level” step-free shower access via shower floor inlay in living area floor design, can be removed when showering
- Roof light in shower room including towel rail above round shower
- Mini Heki skylight in washroom
- Washstand base cabinet with toilet roll holder, countertop washbasin and mirror (lightweight 3.5 t models)
- Large mirrored storage cabinet and spacious washstand base cabinet with toilet roll holder (comfort 4.2 t models)

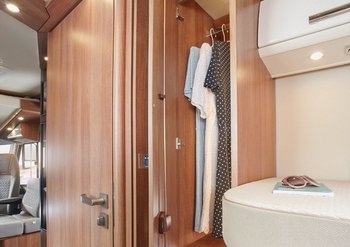

- Dressing room with lockable washroom door or luxury bathroom door to living area
- Solid wood sliding door in front of sleeping area (depending on model)
- Pull-out TV wall and room divider in front of sleeping area (standard on 148 RB-QB comfort 4.2 t models)
DISCOVER THE SLEEPING AREA HIGHLIGHTS.
Model T 143 KB-LE
- Extra large sleeping areas up to 200 cm long with sleeping area extension between the beds with an additional mattress and adjustable head sections
- Wardrobes below the lengthways single beds, conveniently accessible from front and above via the lift function and the divided mattress
- Pull-out access steps including sleeping area extension with additional cushion (depending on model)
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional )
Model T 145 RB LE
- Extra-large sleeping area up 200 cm in length
- Wardrobes below the lengthways single beds, conveniently accessible from front and above via the lift function and the divided mattress
- Pull-out access steps including sleeping area extension with additional cushion (depending on model)
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set
Models T 148 KB-LE, T 148 KB-LE H, T 149 RB-LE
- Extra large sleeping areas up to 200 cm long with sleeping area extension between the beds with an additional mattress and adjustable head sections
- Wardrobes beneath the lengthways single beds, conveniently accessible from the front and above via the lift function and the divided mattress (T 148 LE, driver side only)
- Pull-out access steps including sleeping area extension with additional cushion
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional )
Model T 150 RB-QB
- Extra large sleeping area with adjustable head section
- Wardrobes on the left and right of the queen-size bed
- Large drawer at front of queen-size bed
- Fold-away mattress section at passenger side for extra-wide passage
- Unique: pull-out TV wall and room divider for partitioning off the bathroom area
- 7-zone quality cold foam mattress with breathable climate quilting
- Two-part heated and ventilated slatted frame with flexibly supported wooden slats
- Sleeping world & decoration set with decorative cushions, bed throw and fitted sheet set (optional )
C1-tourer T technology & standard equipment.
THE PERFECT
TRAVEL COMPANION
DRIVER’S CABIN DESIGN

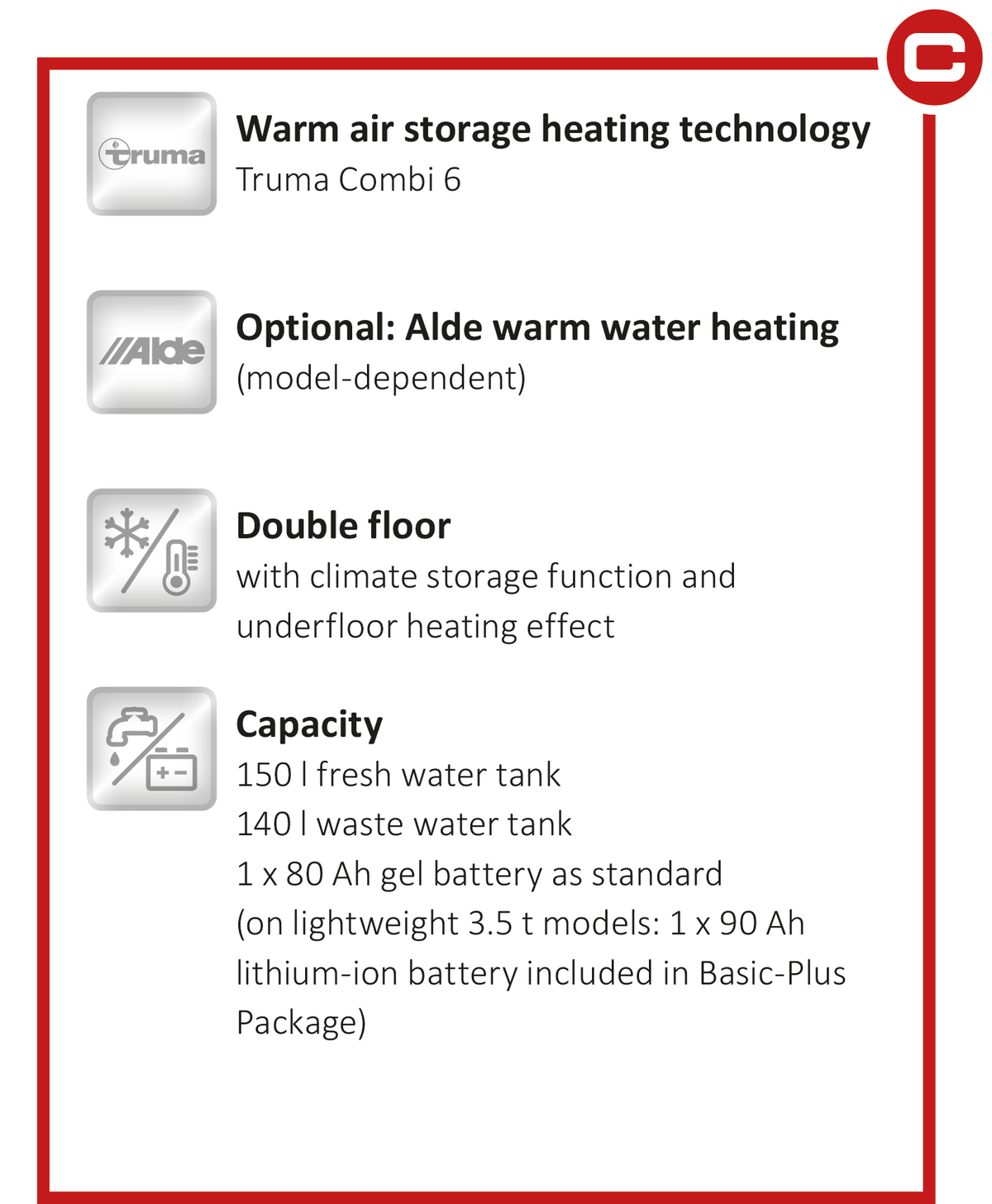

ON-BOARD TECHNOLOGY
Electrical equipment, water supply, warm air storage heating technology
Heated battery centre
With main battery switch: lightweight 3.5 t models: 90 Ah lithium-ion battery included in Basic-Plus Package, optionally extendible to up to 150 Ah. Comfort 4.2 t models: 1 x 80 Ah gel battery, optional up to 150 Ah lithium-ion battery.
Truma Combi 6 warm air storage heating technology
with numerous warm air outlets throughout the double floor, the living area, the scooter garage and the cold-sensitive door entrances
“easy change” gas bottle compartment
extra low for convenient bottle changing, both bottles individually accessible (not T 143 KB-LE)
Gas bottle compartment
with separate exterior door (T 143 KB-LE). Optional: Comfort gas bottle pull-out system
Central water drain
and water tanks in the frost-protected double floor; can also be operated from the outside through the XL habitation door
Electrical centre
easily accessible in scooter garage
STANDARD EQUIPMENT
