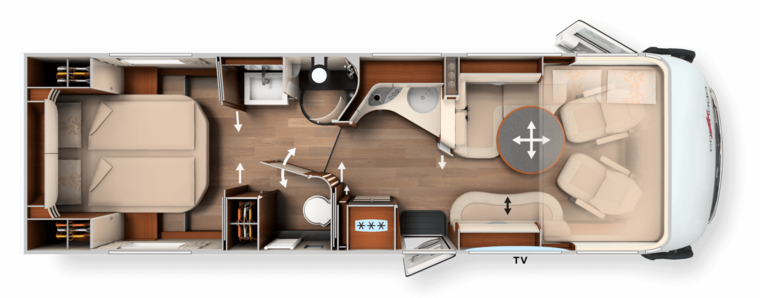

chic e-line Fiat Ducato I 64 XL QB

Find model Trading partners
Quick overview
Length
8840 mm
tech. permissible gross vehicle weight
5000 kg
Max. tech. permissible gross vehicle weight
5500 (*) kg
Max. Sleeping locations
5
Price
₤ 172.610,–
Special features
  • Large XL round seating area with long side sofa, optional: TV pull-out system for 40" LED flat screen behind backrest, electrically operated
  • Large comfort corner kitchen with curved work surface
  • Slide-out storage cabinet integrated in round washroom wall
  • XL washroom, open washing area, spacious round shower, separate toilet room with side window, towel warmer and legroom extension, floor-to-ceiling wardrobe
  • Changing room separable via solid wooden sliding doors and solid wooden door
  • Extra-large queen-size bed in 200 cm king-size format, comfortable sleeping width as far as the foot area
  • Two wardrobes at each side of the queen-size bed
  • Two large drawers at the front of the bed
Technical data
Standard chassis Fiat Ducato AL-KO low frame DA 40 heavy
Base engine Diesel 2,2 l (180 HP/132 kW)
Total length 8840 mm
Total width 2270*** mm
Total height 3090 mm
Wheel base 4240/800 mm
Double floor height / double floor storage compartment 220/460 mm
Headroom in living area 2110 mm
Headroom in changing room / sleeping area 1980 mm
Rear garage interior height 1120/1240* mm
Door width/height rear garage passengers side 1150 x 1080 mm
Door width/height rear garage drivers side 1150 x 1080 mm
Technically permissible gross vehicle weight 5000 kg
Max. Technically permissible gross vehicle weight 5500 (*) kg
Weight in running order | Legal tolerance of -/+ 5% 4.295 (4.080-4.510) kg
Max. weight of additional equipment in series production specified by the manufacturer 303 kg
Max. towed load 1800 kg
Max. number of seats with 3-point safety belt as standard while driving (standard / optional) 4 | 5
Sleeping berths 4 | 5
Max. Sleeping berth 5
Type of sleeping places Queen-size bed
Rear bed dimensions 2000 x 1450
230 V / 12 V / USB sockets 5 / 3 / 2
Seating area bed conversion dimensions (mm) * 1940 x 1480 / 845**
Fridge volume / of which freezer compartment (l) 153 / 29 l
Fresh water tank volume with filling in running order (l) 50 l
Drop-down bed dimensions 1950 x 1600
Heating system Alde WW
Fresh water volume 235 l
Waste water volume 185 l
Battery capacity 150 Ah Lithium Ah Gel
List price including 20% VAT (₤) and registration documents ₤ 172.610,–
https://configurator.carthago.com/customer/catalog?language=en&modelYear=2025&model=chic%20e-line%20Fiat&layout=e-line%20Fiat%2064%20XL%20QB&priceList=gb
(*) Optional with max. payload *Optional Pedelec scooter garage ** In conjunction with special equipment ***Total vehicle width is the measurement from exterior wall to exterior wall (wheel arches on the side, approx.: + 70 mm)
